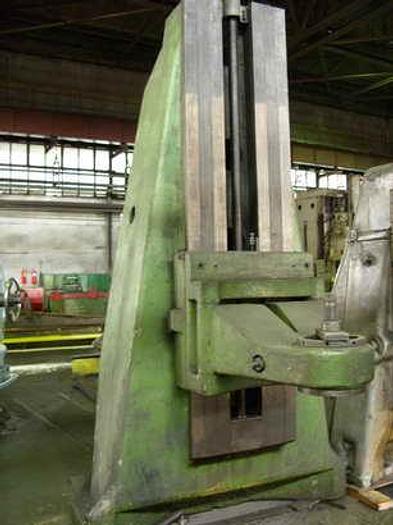

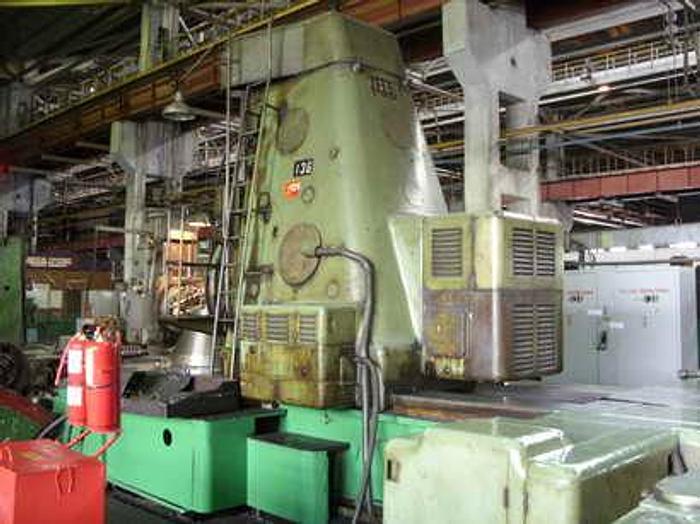

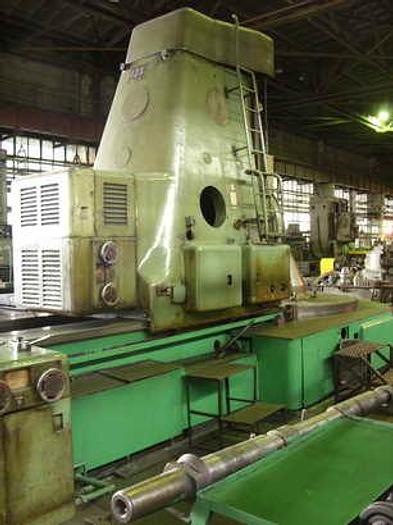

1970 Veb MODUL ZFWZ 3150x30/I Vertical gear hobbing machine

Sold

Specifications

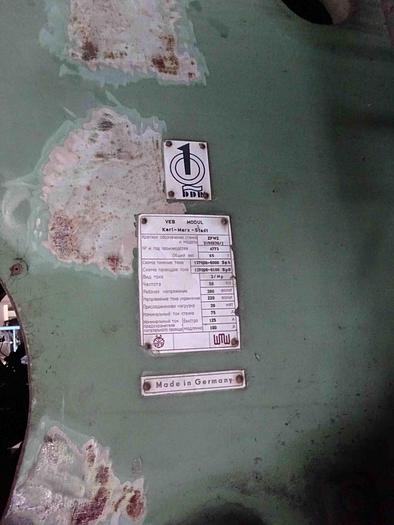

ManufacturerVeb MODUL
ModelZFWZ 3150x30/I
Year1970
Serial Number4773
Dimension6785x5400x4820 mm
Weight65 ton

Description

max. wheel diameter 3150 mm

min. wheel diameter 500 mm

max. wheel diameter with outboard-support 1600 mm

max. module 30 mm

gear width 1000 mm

max. helical angle 45 deg

tangential adjustment 500 mm

cutter length max. 440 mm

diameter of cutter (hob) 350 mm

table diameter 2400 mm

table bore diameter 500 mm

depth of hole 1100 m

table load max. 30 t


Main motor: 70 kW

Dimension: 6785x5400x4820 mm

Weight: 65 ton
