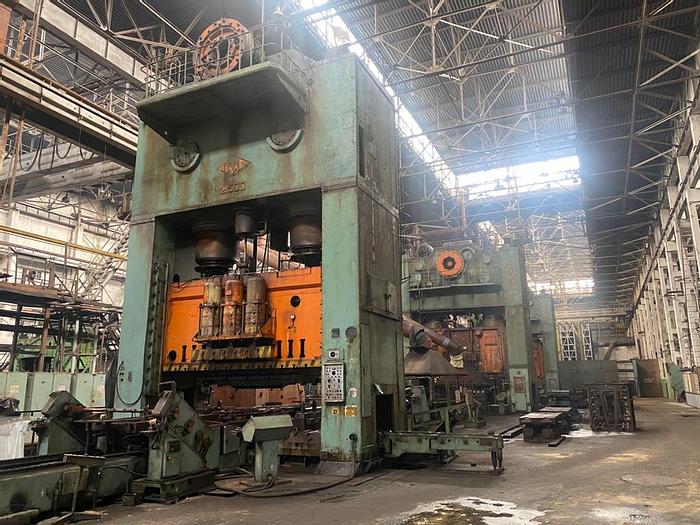

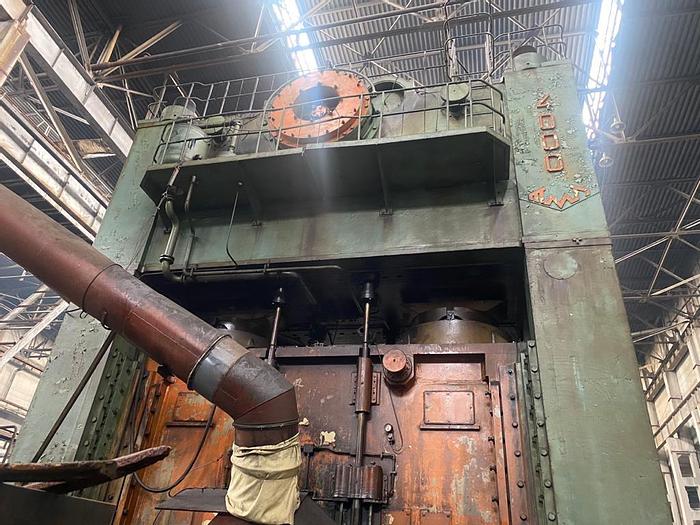

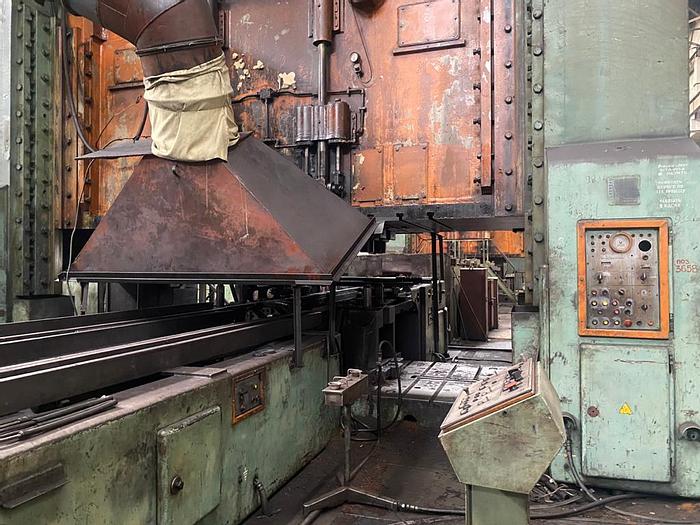

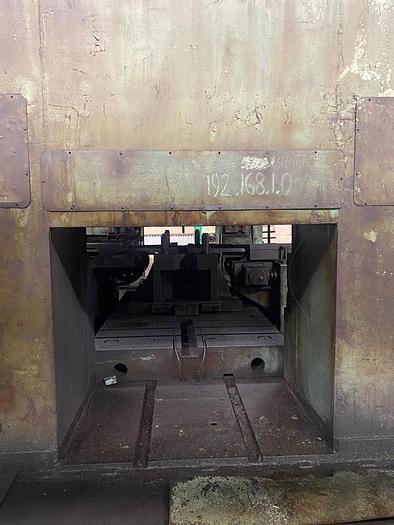

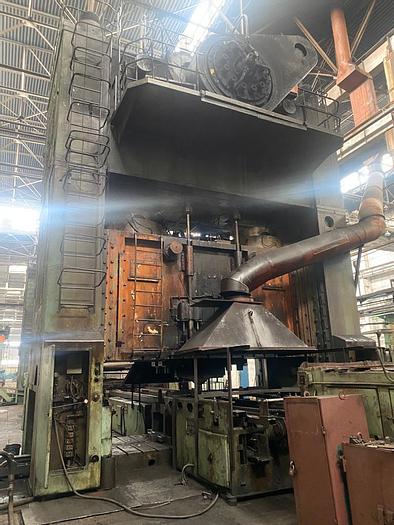

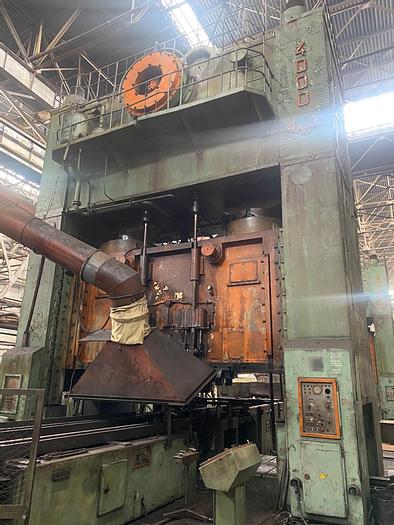

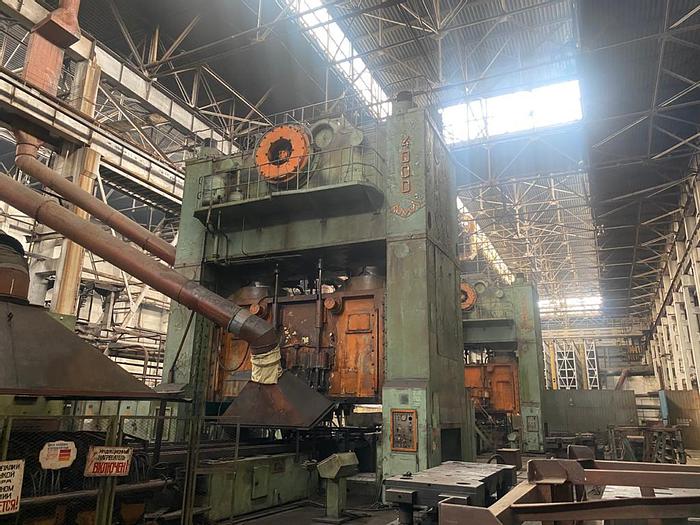

1982 TMP Voronezh K3546, 4000T Double-crank single-action closed press

Nominal force: 4000 tons

Slider's undershoot to BDC: 10 mm

Slider stroke: 630 mm

Frequency of continuous strokes per min: 10

The highest frequency of single strokes per min: 7

Closed height: 1180 mm

Adjustment of closed height: 200 mm

Slider's dimensions:

-From left to right: 5000 mm

-From front to back: 2000 mm

Dimensions of the plate of the die:

-From left to right: 5000 mm

-From front to back: 2000 mm

Capacity of the main drive: 250 kW

Overall dimensions:

-From left to right: 7640 mm

-From front to back: 5980 mm

-Height above floor level: 10490 mm
