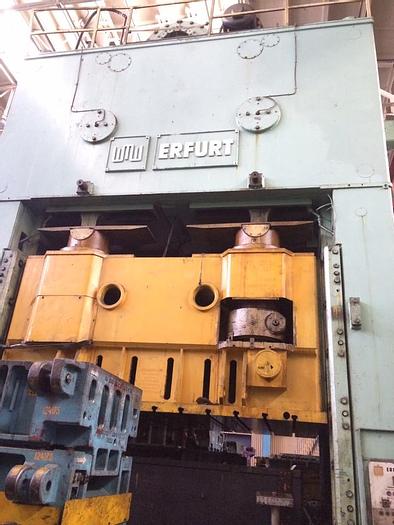

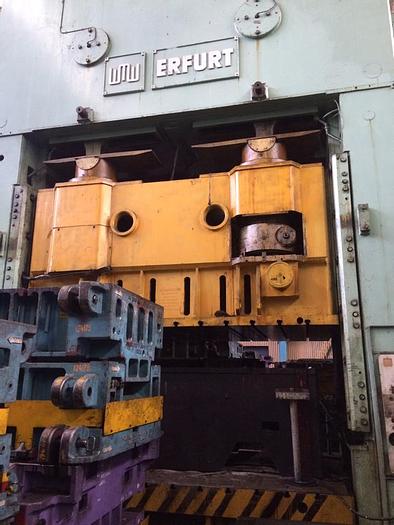

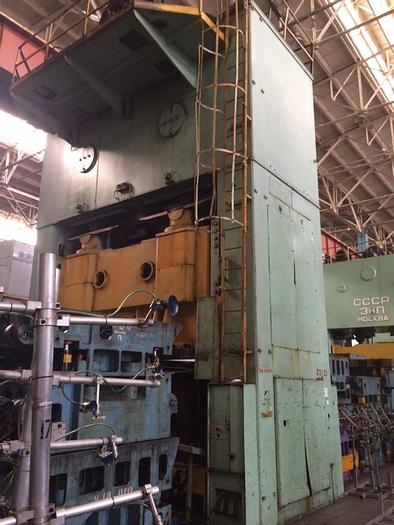

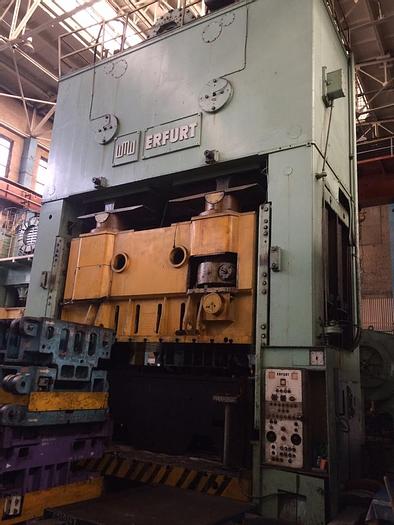

1981 ERFURT PKZV I 1250 FS Double crank sheet stamping press

orCall +44 20 3287 0537

Specifications

ManufacturerERFURT
ModelPKZV I 1250 FS
Year1981
Stock Number70838250
Press weight305000 kg

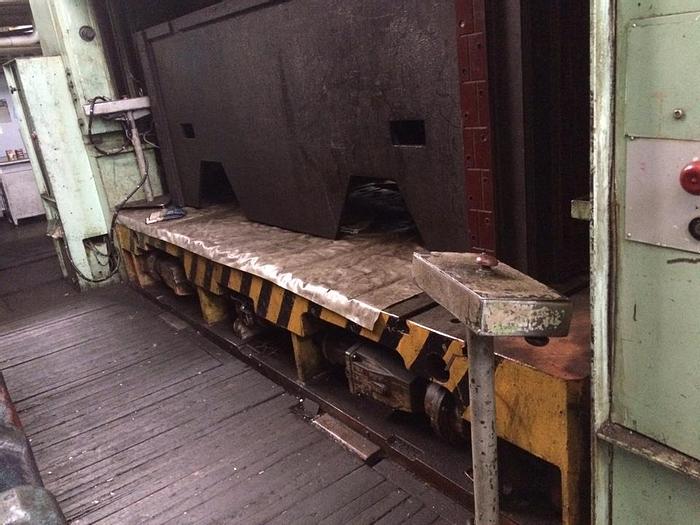

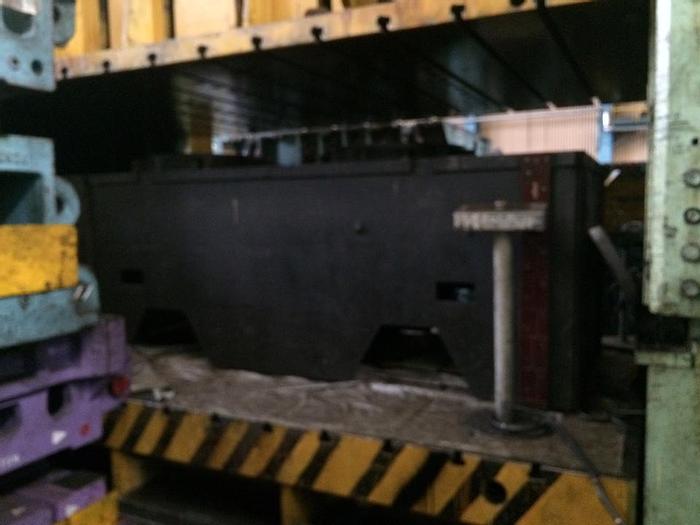

Table:Front moving

Description

Number of connecting points of the ram: 4

Max. ram force: 1250 tons

Slide stroke: 630 mm

Slide adjustment: 630 mm

Max. shut height between bolster plate and slide (stroke down, adjustment up): 1250 mm

Bed area: 4000x2500 mm

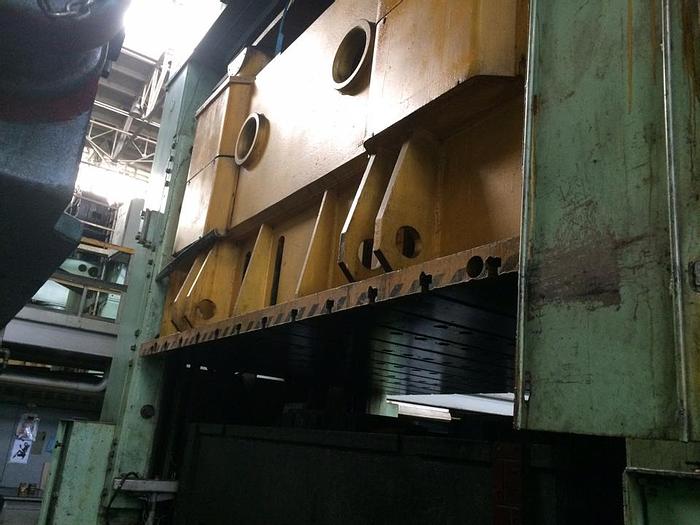

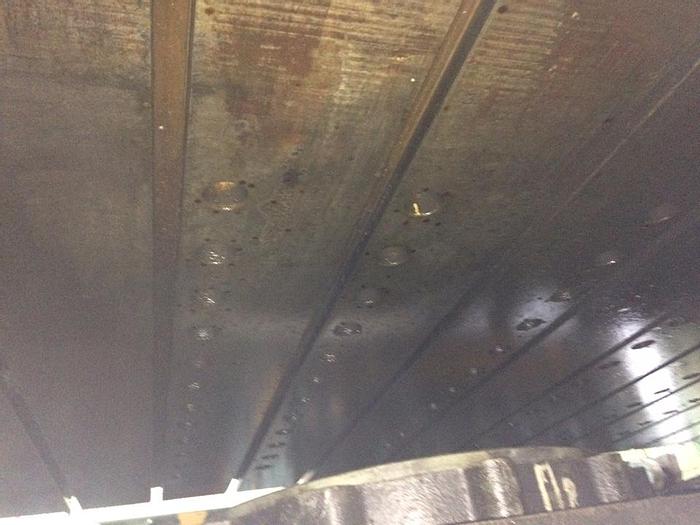

Slide area: 3950x2500 mm

Opening in the bed: 3320x1540 mm

Distance between columns (L-R): 4050 mm

Cushion capacity: 250 tons

Cushion stroke: 250 mm

Ejection force: 40 tons

Strokes per minute: 11

Overload protection

Main drive: 132 kW

Height above floor: 9700 mm


Press weight:305000 kg
