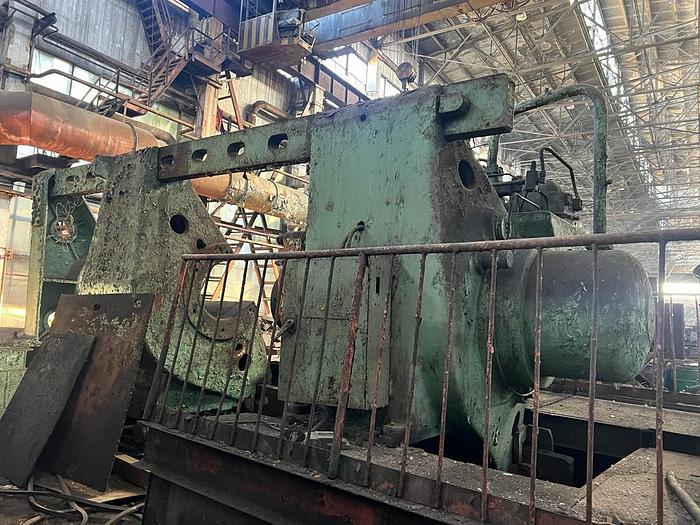

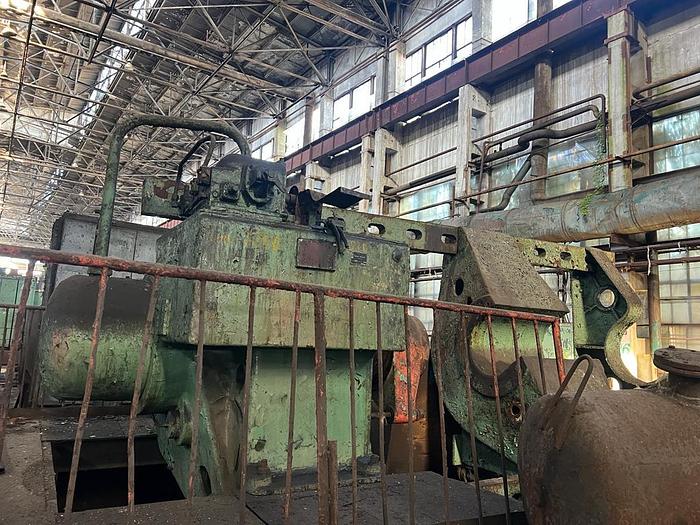

1972 ODESSAPRESSMASH P6738, 630T Horizontal Hydraulic press for pressing of wheelsets
Specifications

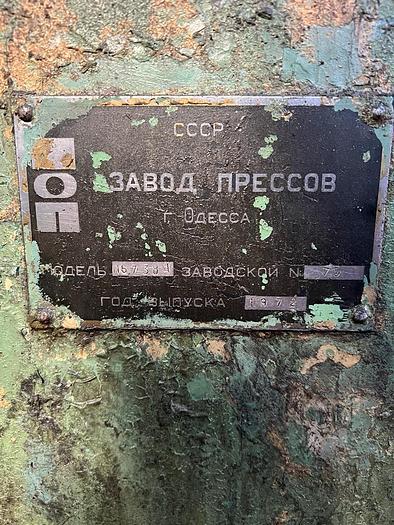

Manufacturer | ODESSAPRESSMASH |
Model | P6738A, 630T |
Year | 1972 |
Serial Number | 75 |
Description
Press capacity, ton-forces 630
Fluid working pressure, MPa 20
Max. stroke of main cylinder plunger, mm 1000
Main cylinder plunger speed at no load, mm/sec 20-30
Main cylinder plunger speed at working stroke, mm/sec 1.2-2.2
Main cylinder plunger speed at back stroke, mm/sec 30-45
Loading mechanism (electric hoist): quantity, pcs 2
Loading mechanism (electric hoist): capacity, kN 20
Plunger end to stop bar end distance, mm 4000
Range of plunger end to stop bar end distance adjustment, mm 3500
Min. wheel-to-wheel distance when pressing-out, mm 1150
Plunger axis to floor distance, mm 1180
Stop bar stroke speed, mm/sec 50
Max. diameter of pressed-in item 1600
Dimensions, mm
Left-to-right 8330
Front-to-back 4000
Machine heigh 3650
Press weight, not more than, kg 27650
