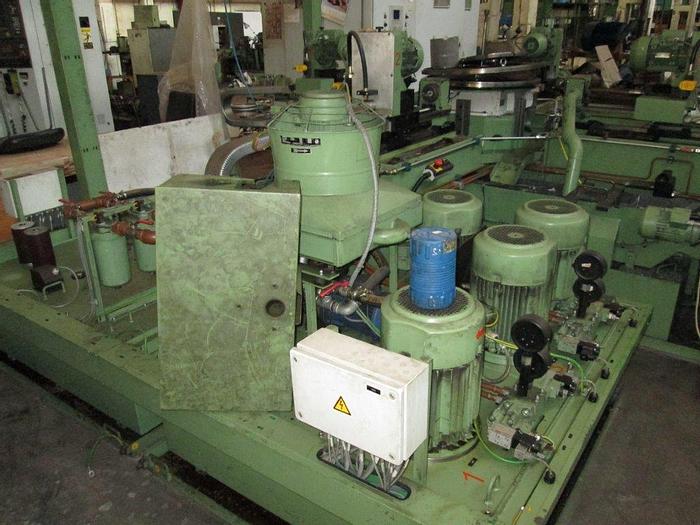

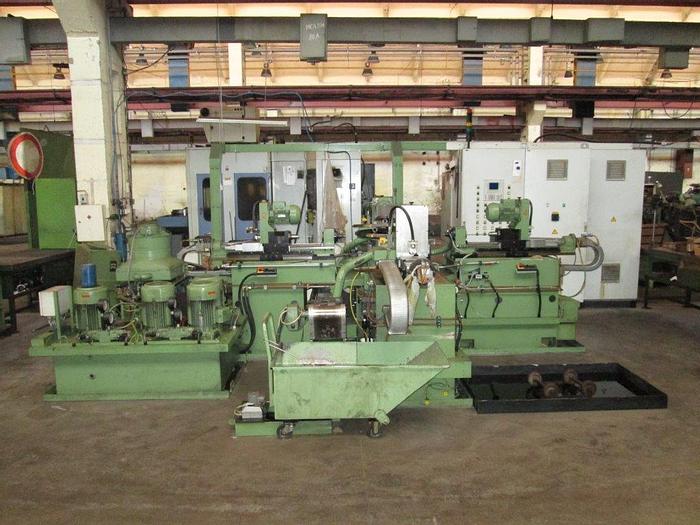

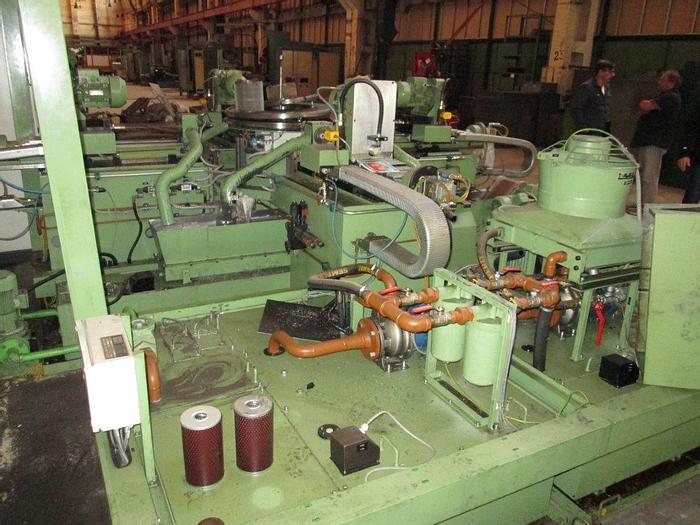

2007 ZTS-LR (SLOVAKIA) 4 spindle gun drilling machine
Specifications
| Manufacturer | ZTS-LR (SLOVAKIA) |
| Model | 4 spindle gun drilling machine |
| Year | 2007 |
| Stock Number | 151059558 |
| Workpiece diameter, mm | Ø500 ~ 1000 |
| Drilling diameter, mm | Ø4 ~ 12.0 |

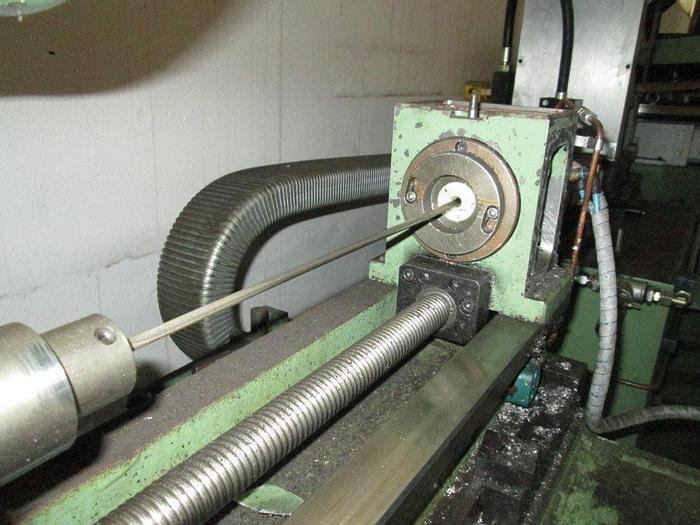

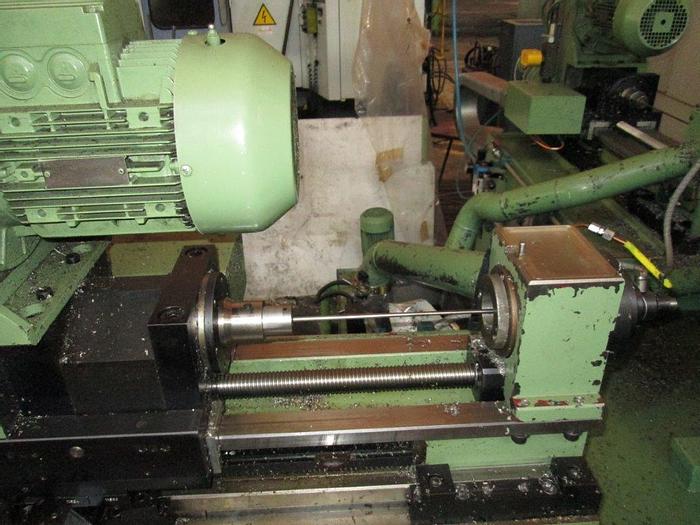

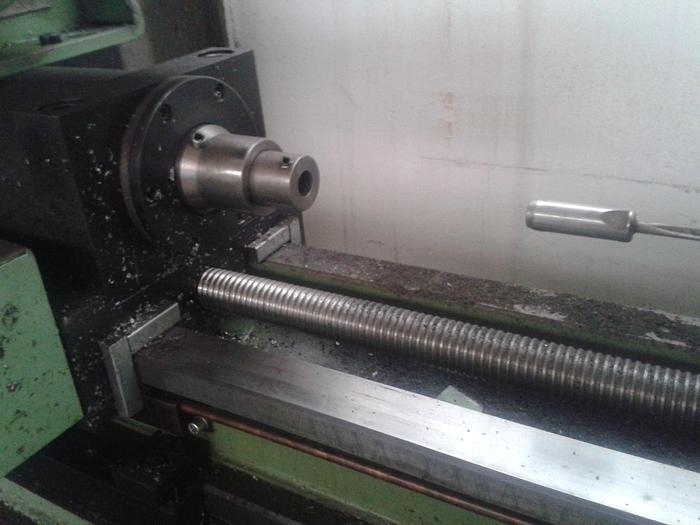

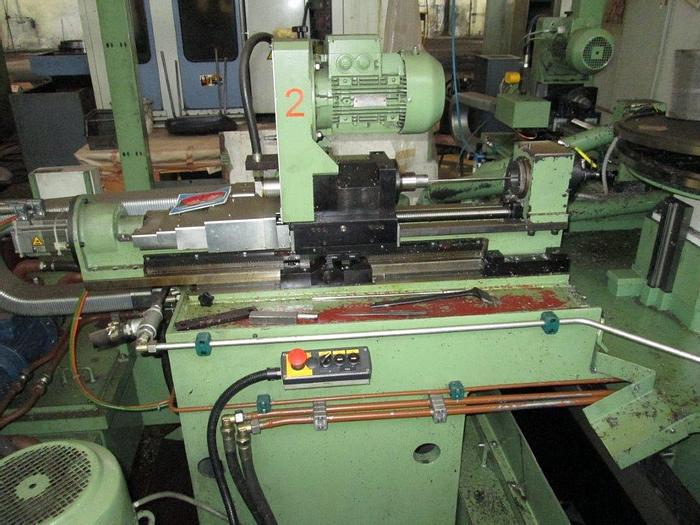

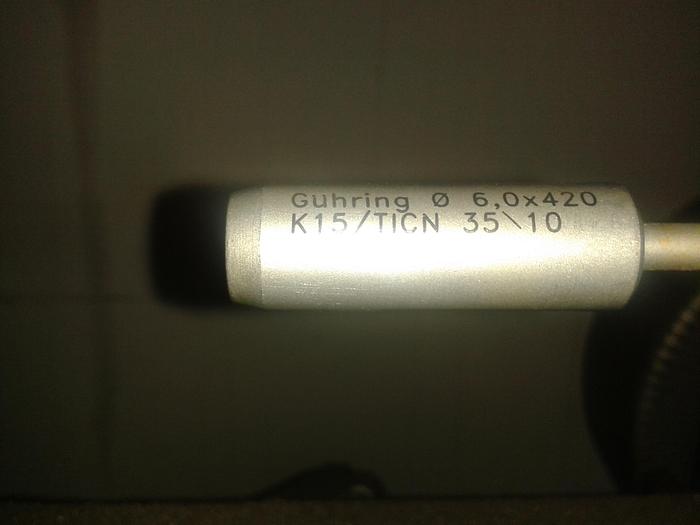

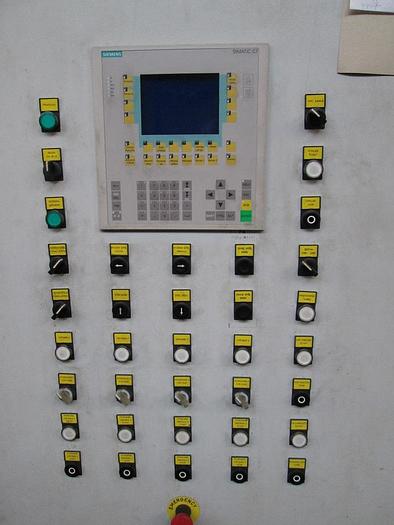

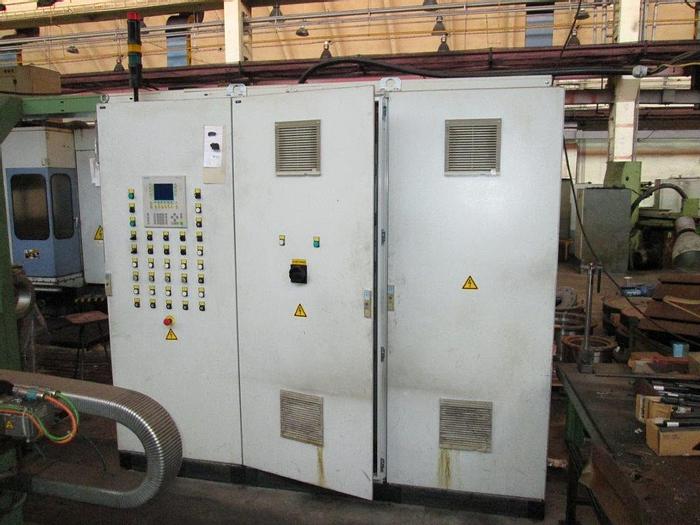

| Drilling head | 4 pcs, gun drills |
| Rotary table | WEISS NC320TAA |
| Control cabinet | with control controller SIEMENS SIMATIC S-7 |
| Drives | SIEMENS |
Description
Drilling diameter, mm Ø4 ~ 12.0
Workpiece diameter, mm Ø500 ~ 1000
Drilling depth, mm 100
Vertical movement of the table (Y-axis), mm 300
Spindle rotation speed, rpm. 0 ~ 6000
Spindle motor power, kW 3
Motor feed drive Z-axis, Nm 8
Motor feed drive Y-axis (vertical movement of the table), Nm 11.6
Table diameter, mm Ø800
Table rotation speed, rpm. 13.88
Max. workpiece weight, kg 600
Max. torque (table), Nm 3000
Max. permissible moment of inertia (table), kg m2 34
Table positioning accuracy, angular sec. ± 15
Repeatability, angular sec. 4 sec.
Table surface flatness, mm 0.01
Runout of the central hole of the table, mm 0.01
Parallelism of the table surface relative to the base, mm 0.02
Table surface runout, mm 0.015
Coolant tank volume, lt 1200
Cooling fluid pressure, bar 100
Coolant pump capacity, l / min 20
Coolant filtration degree, μm 10 ~ 20 μm
Machine dimensions, mm
Machine weight 4-spindle, kg. 6500
