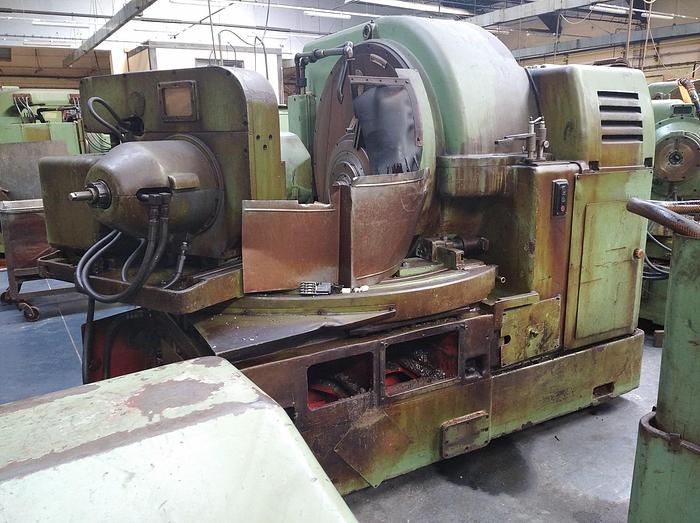

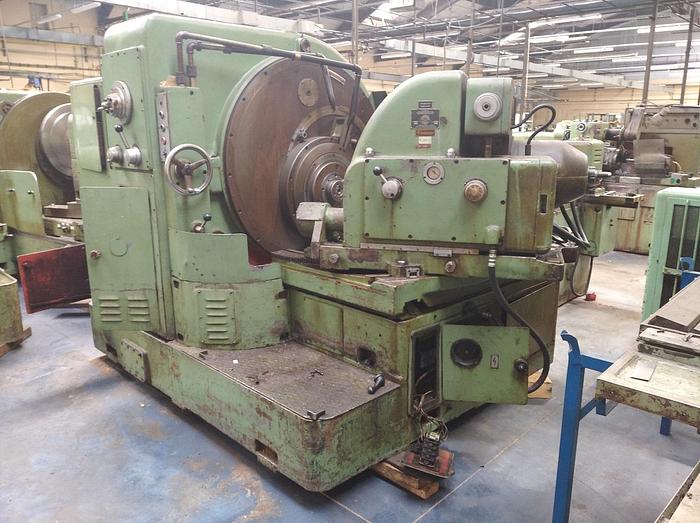

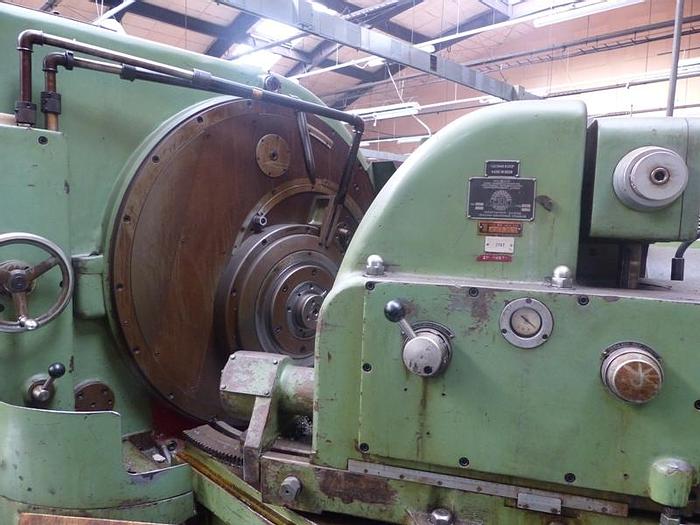

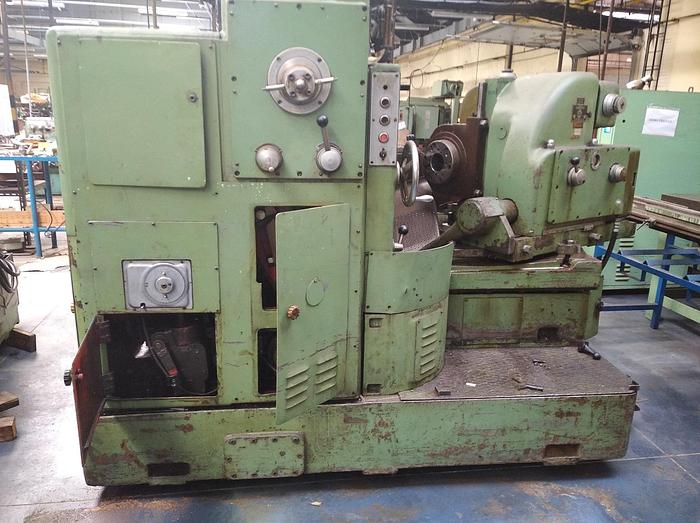

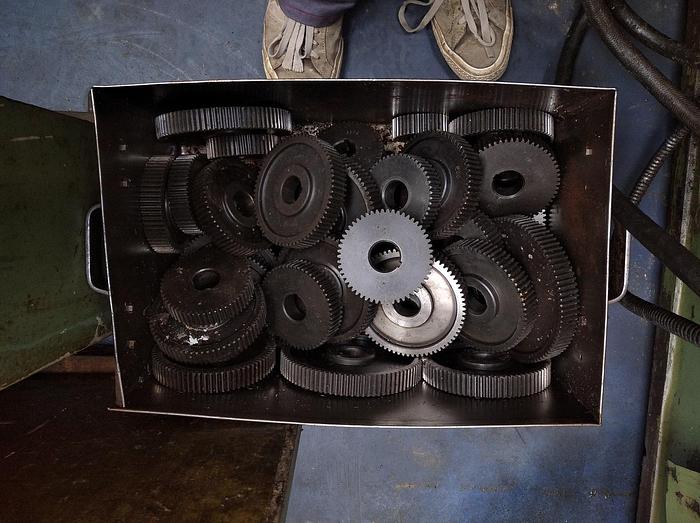

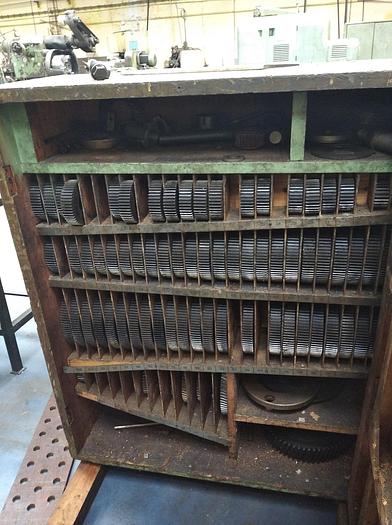

1964 Saratov 528C GEAR CUTTING MACHINE
Specifications
| Manufacturer | Saratov |
| Model | 528C |
| Year | 1964 |
| Stock Number | 150291201 |
| Max. diameter, mm | 800 |
| Modul, mm | 16 |
Description
The largest diameter of the workpiece, mm 800
The largest outer circumferential module, mm 16
The greatest external tooth height, mm 36
The greatest average taper distance, mm 360
The greatest width of the gear rim, mm 125
The smallest pitch cone angle, ° 5
Number of teeth of the product 5-150
Greatest hypoid displacement, mm
- up 125
- down 125

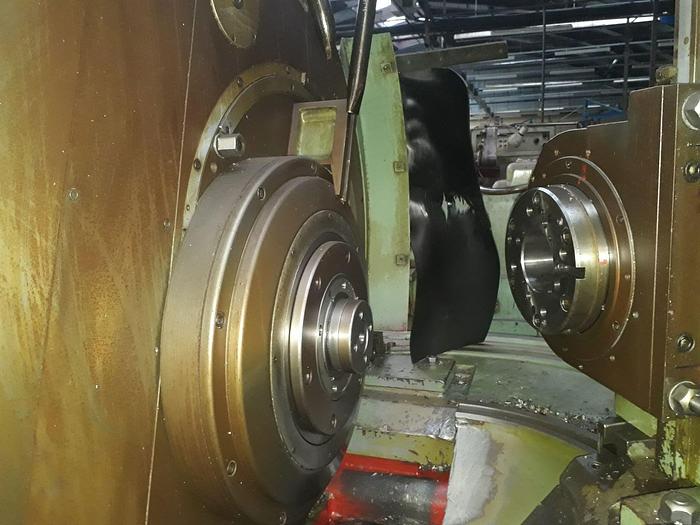

Diameter of the conical bore of the workhead spindle, mm 153
Distance from the butt end of the headstock spindle to the center of the semiautomatic device, mm 135-600

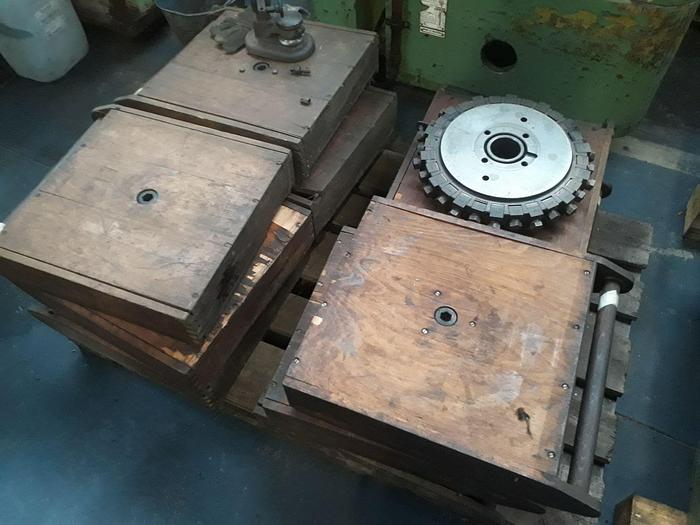

Nominal diameter of gear cutting heads, mm 160; 200; 250; 315; 400; 500
The largest radial setting of the tool spindle relative to the cradle axis, mm 320
Tool spindle rotation frequency, rpm. 18-172
Cycle time, from 7 or more
Main motion electric motor power, kW 7.5
Total power of installed electric motors, kW 17
Machine dimensions, mm
- length 3485
- width 3730
- height 2860
Machine weight, kg 16 395
