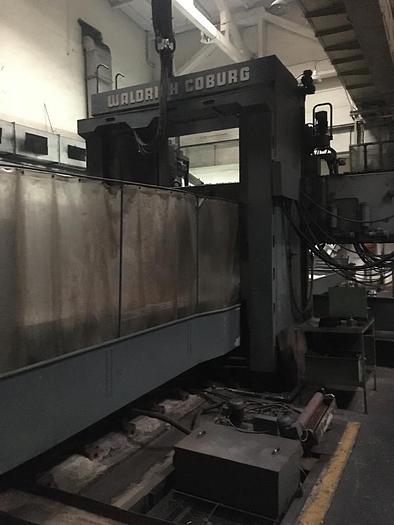

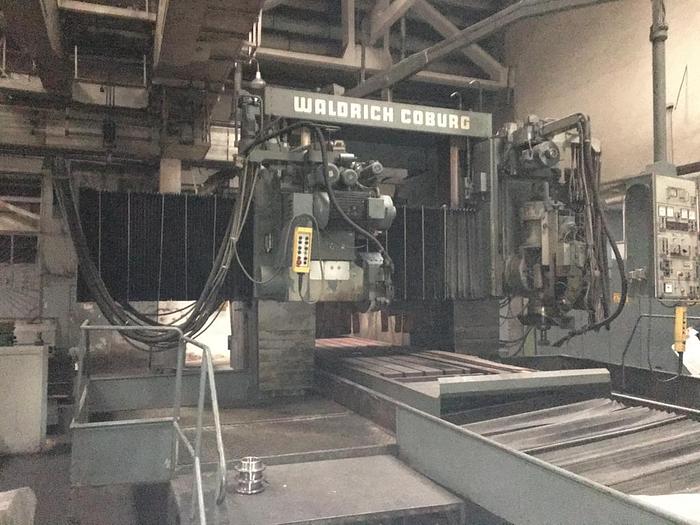

1985 Waldrich Coburg 30-15S 3030 (4m) Slideway Grinding Machine
No longer available
Specifications
| Manufacturer | Waldrich Coburg |
| Model | 30-15S 3030 (4m) |
| Year | 1985 |
| Stock Number | 149234129 |
| Max. grinding length, mm | 4500 |
| Grinding width, mm | 1715 |
| Grinding height, mm | 1500 |
Description
Total length with gutter for cooling liquid mm 11880
Overall width mm 6415
Overall height mm 4850 +/- 600
Grinding width mm 1715
Table mm 1500х4000
Distance between columns mm 1718
Maximum length of grinding mm 4500
Grinding length at table speed 5 m / min mm 140
Grinding height mm 1500

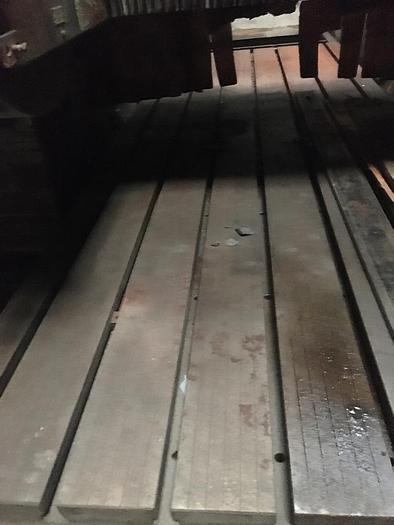

Number of T-shaped slots pcs. 7
Distance between T-shaped slots mm 210
T-slot width mm 28
Workpiece weight kg 8500
Machine weight kg 54600
