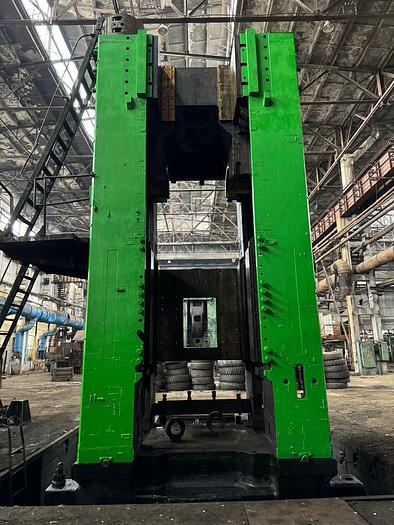

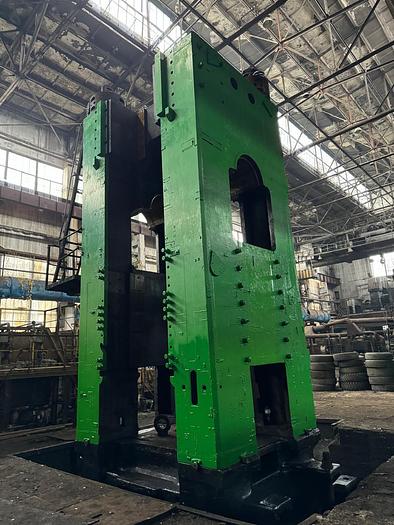

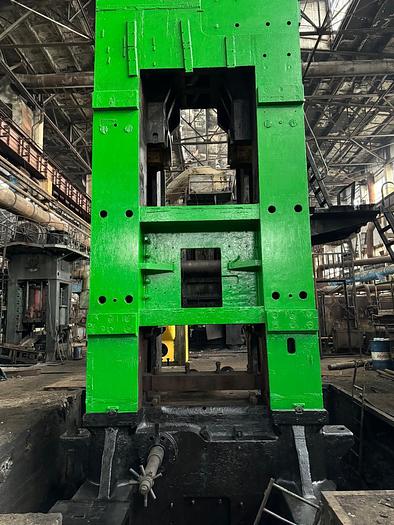

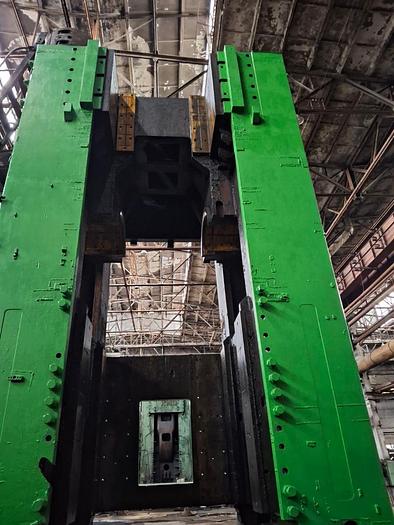

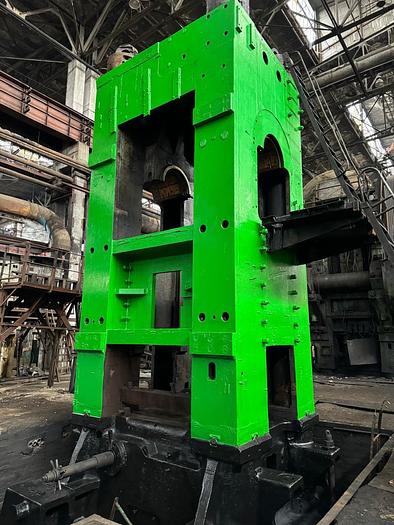

1976 NKMZ 6300TN ( K8548) Hot stamping press

with a brand-new slider also new stale gears and cleaned and painted parts

Warranty for all brand new components 12 month.

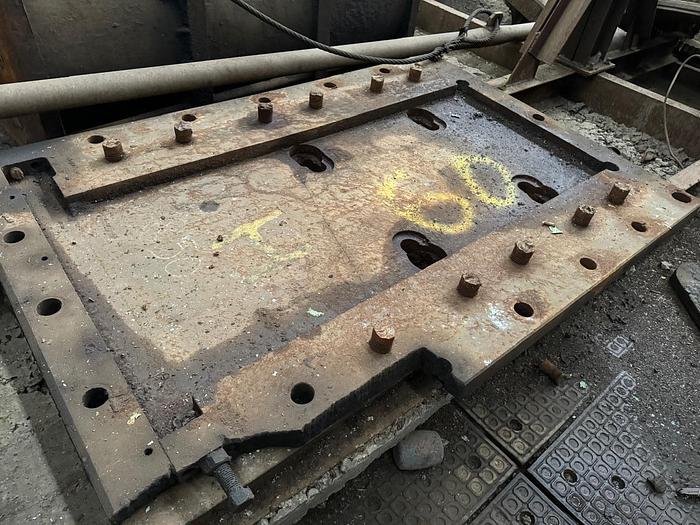

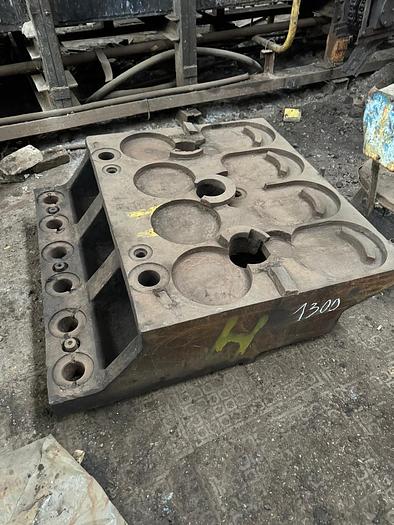

Die Holder included price .

All parts of the press were subjected to technical inspection and the main components were replaced .

· Completing the press with NEW and STALE PARTS and components;

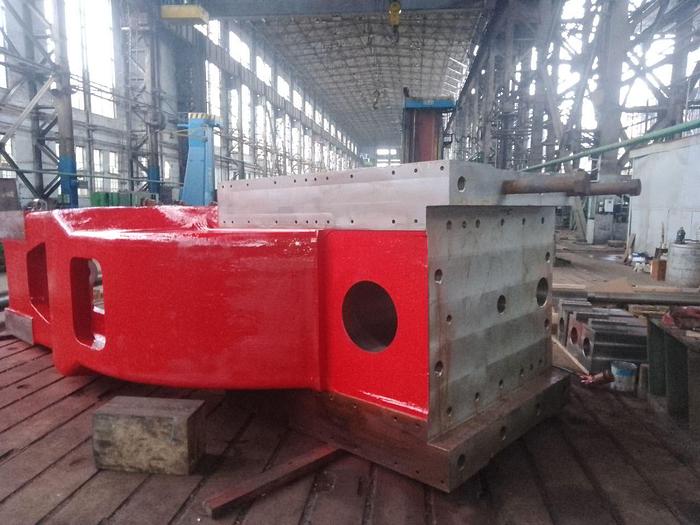

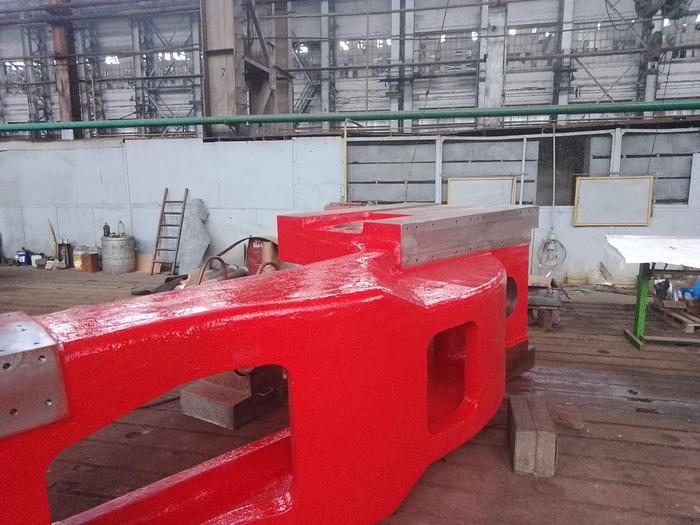

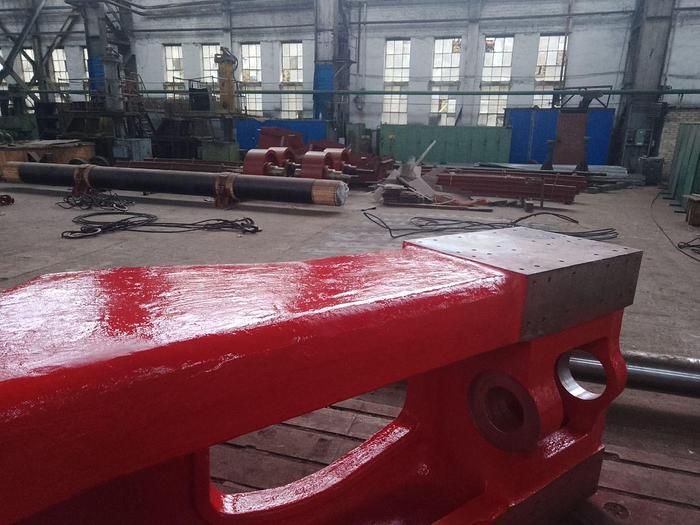

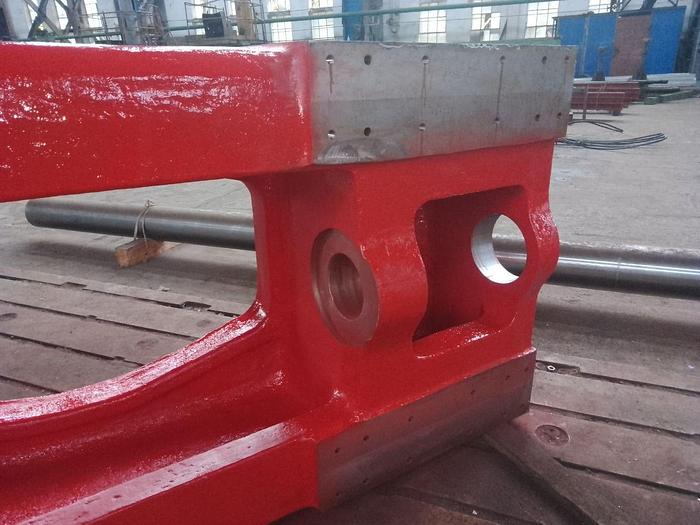

· Brand New Ram 2024

- Brand new Pin 2024

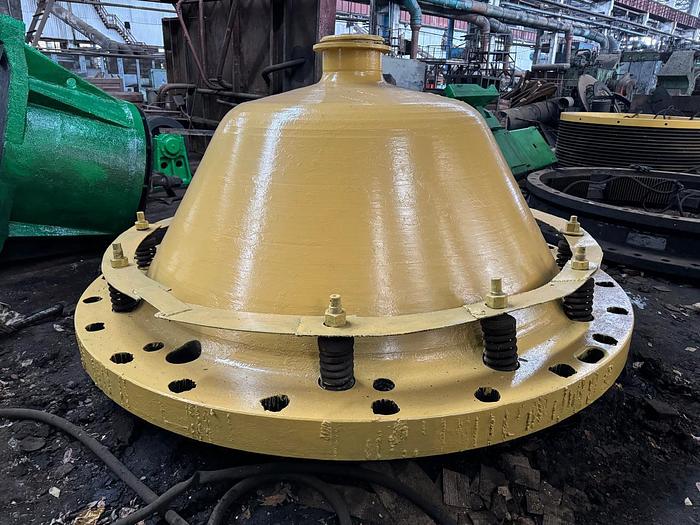

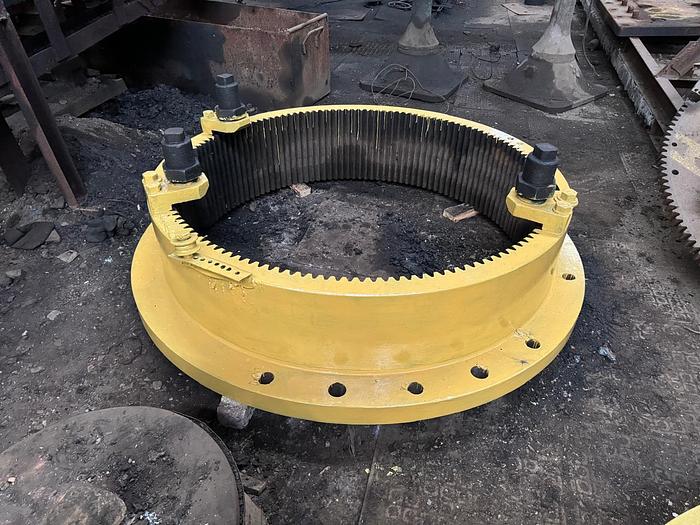

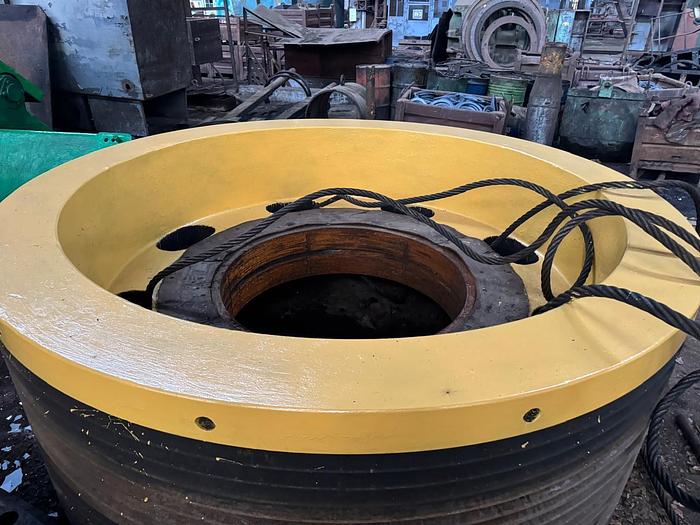

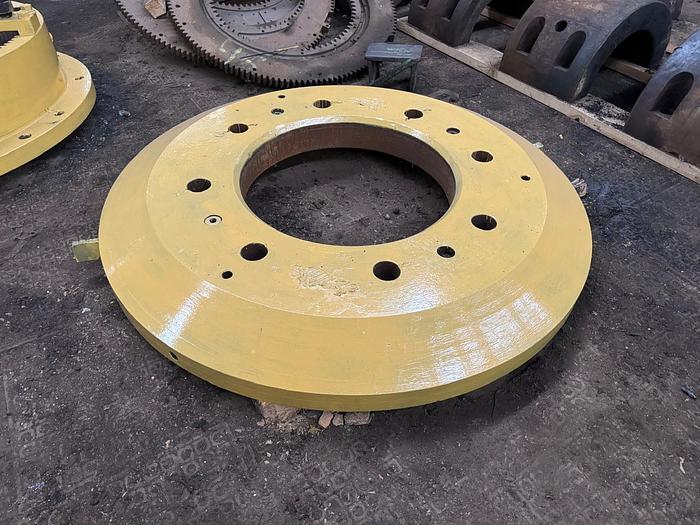

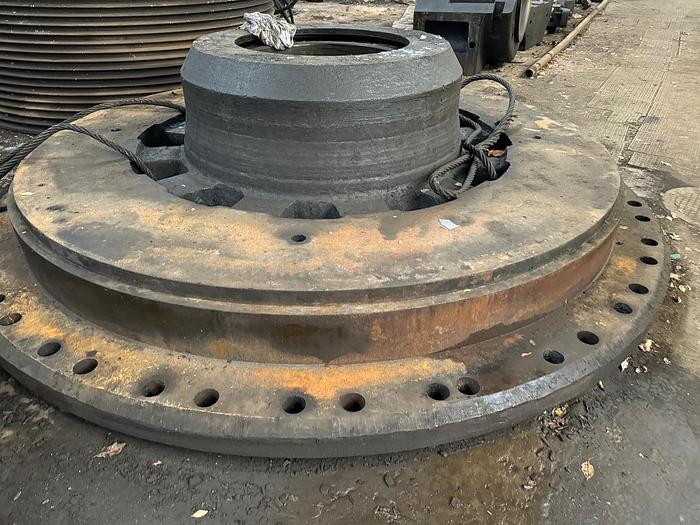

· New stale drive hub 2023

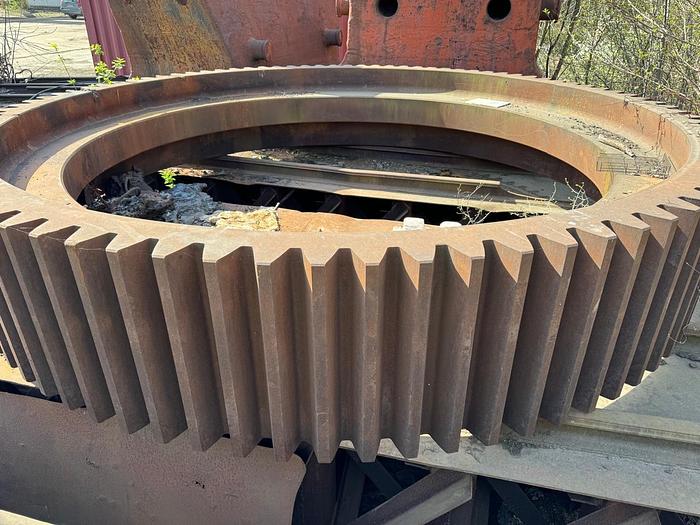

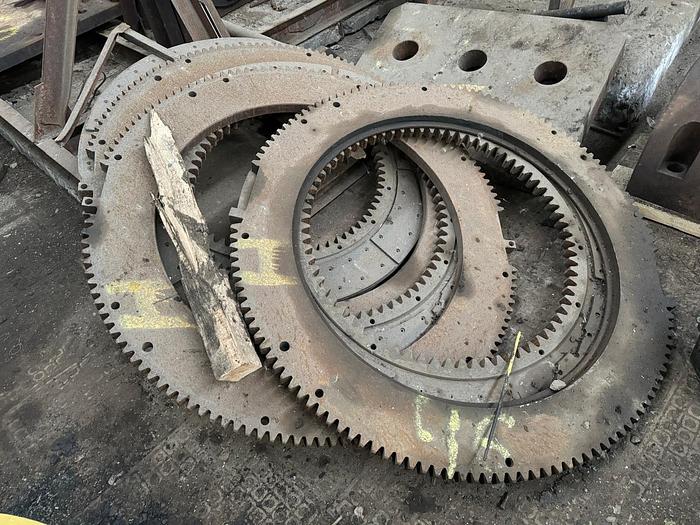

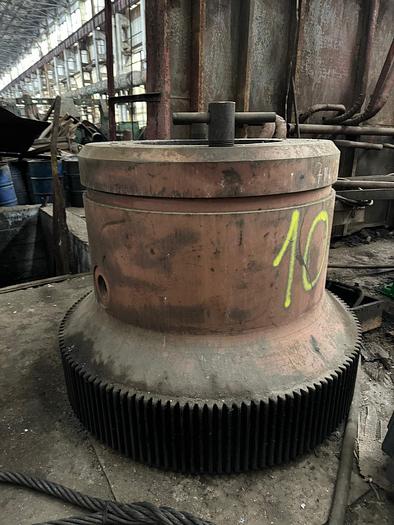

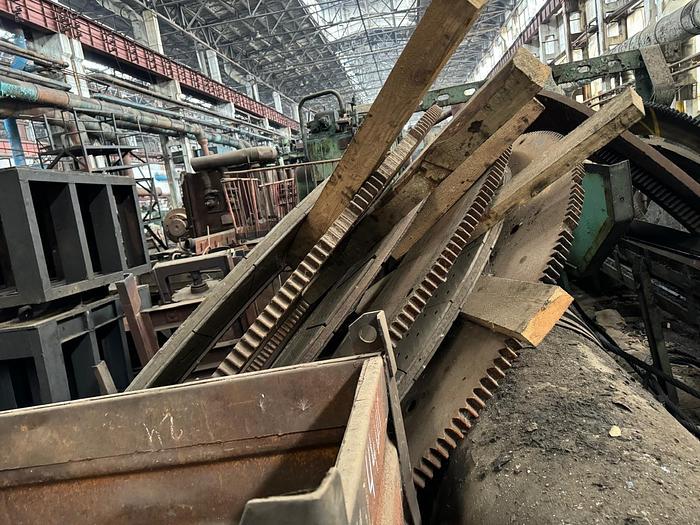

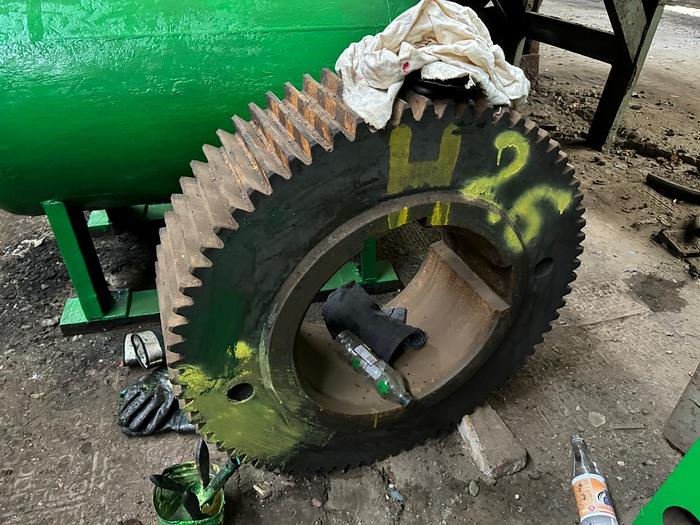

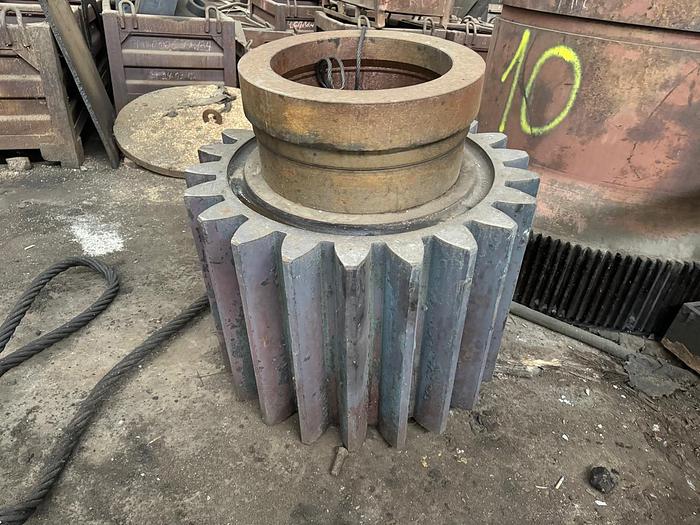

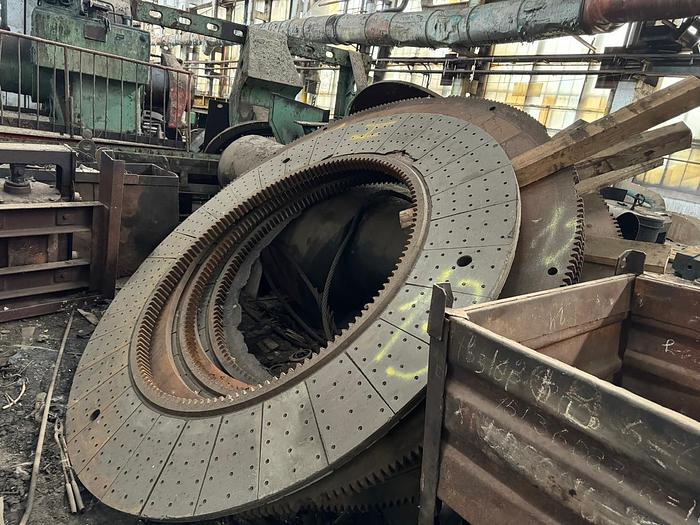

· New stale Gear Big 2023

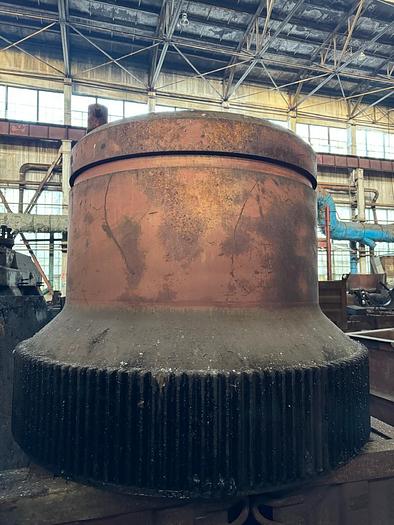

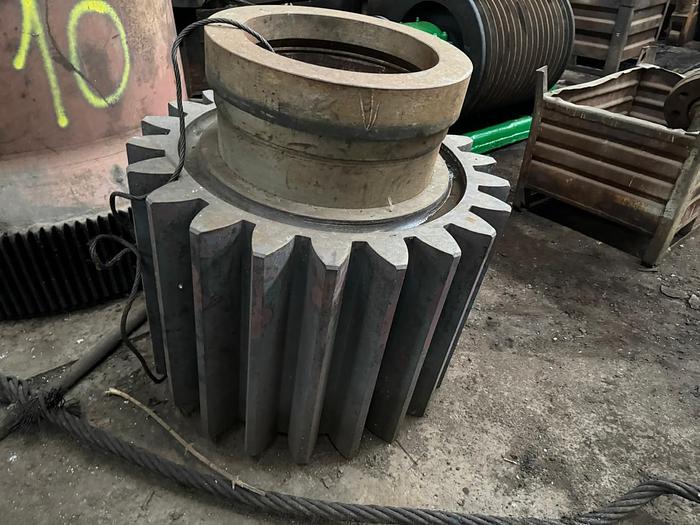

· New stale small gear 2023

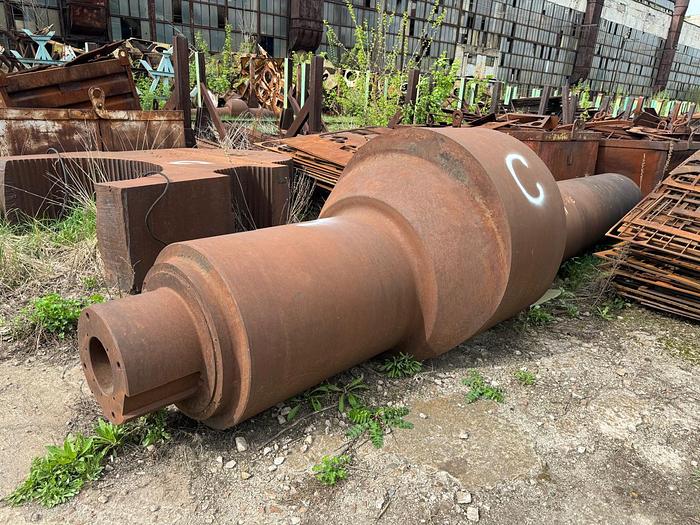

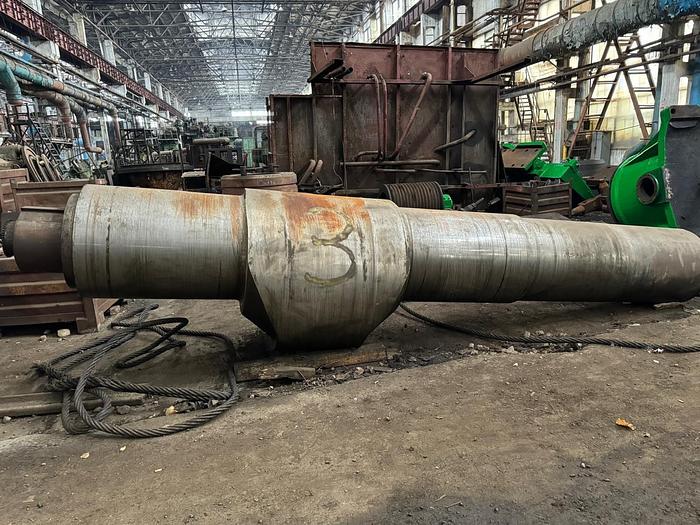

· New stale eccentric shaft 2023

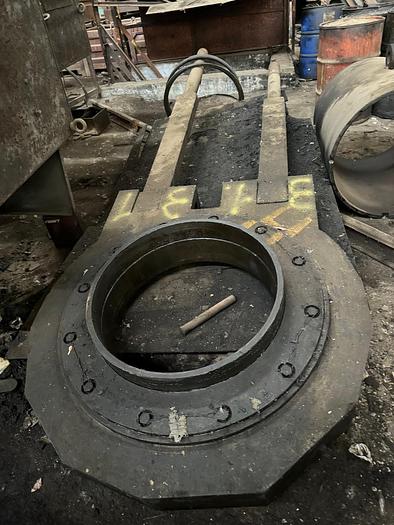

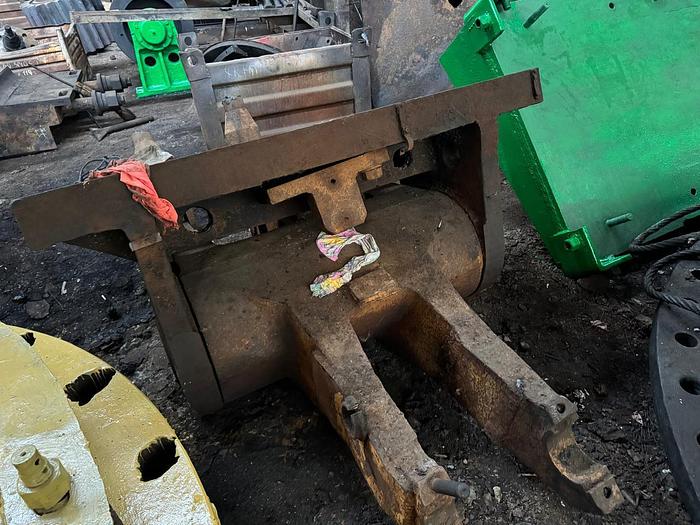

connecting rod is in stock

Nominal force: 6300 ton

Number of continuous strokes per minute: 40

Ram stroke: 460 mm

Distance between ram and table (table is in upper position): 1150 mm

Table adjustment: 15 mm

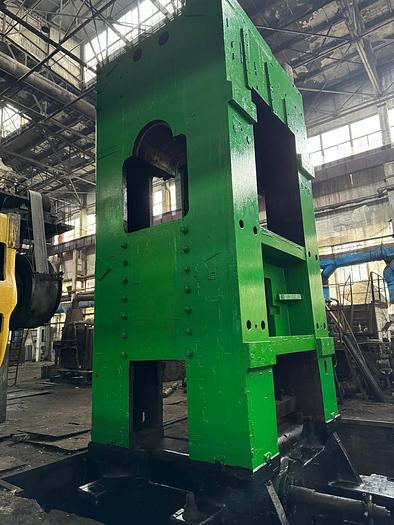

Distance between press columns: 1950 mm

Ram dimensions:

-front to back: 1680 mm; -left to right: 1680 mm

Table dimensions:

-front to back: 1950 mm; -left to right: 1920 mm

Mechanical upper ejector:

-max stroke: 100 mm; E5231468 -number of positions: E5231468 1

-steps of stroke adjustment: 25-30-75 mm

-force: 30 ton

Pneumatic lower ejector:

-max stroke: 300 mm

-stepless stroke adjustment: 15-300 mm

-number of positions: 3; E5231468

-force: 65 ton

Side windows dimensions:

-width: 1100 mm; -height: 1280 mm

Main motor: 400/590 kW/rpm

Press layout dimensions: 6300x8965 mm

Total height: 11125 mm

Height above floor level: 9150 mm

Total weight: 626100 kg
