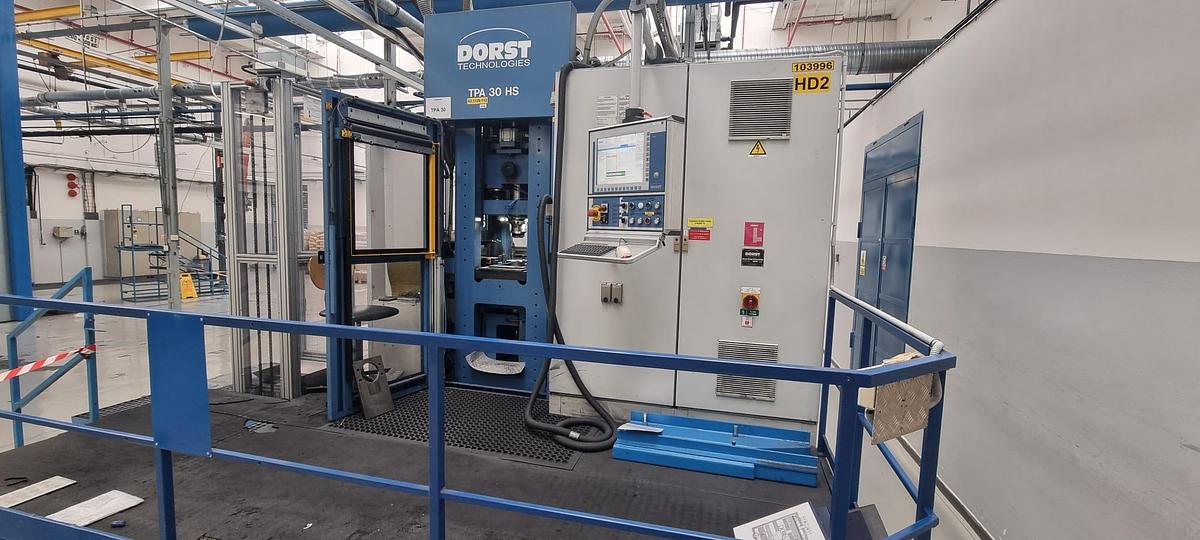

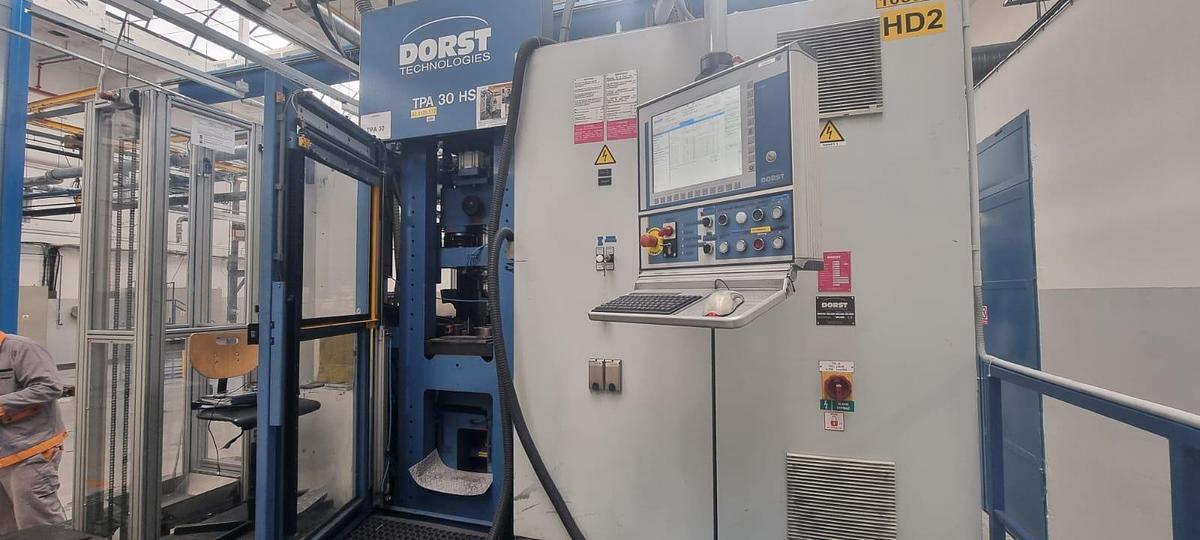

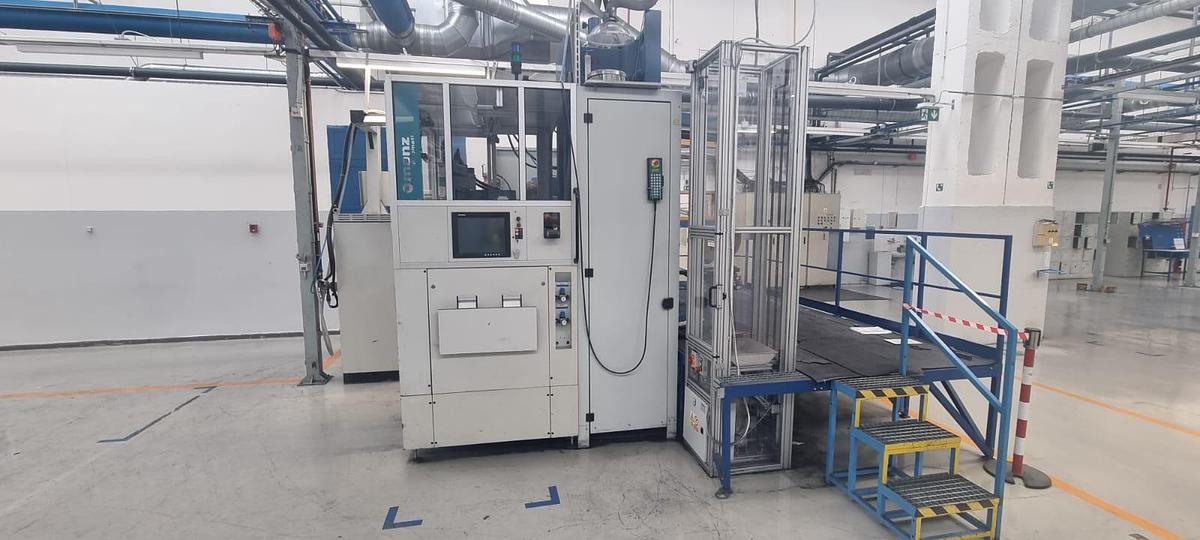

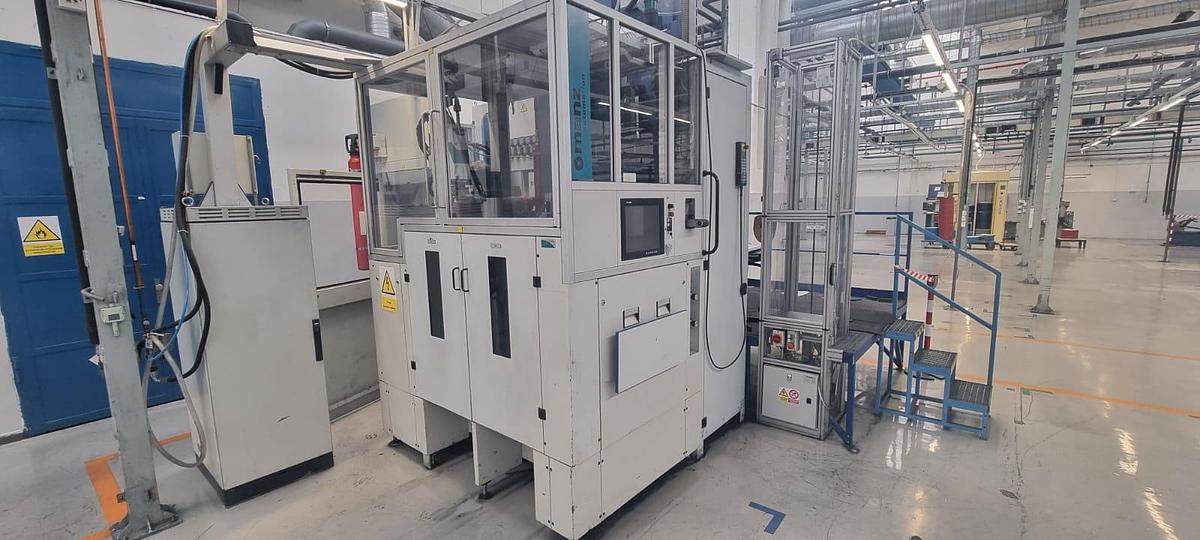

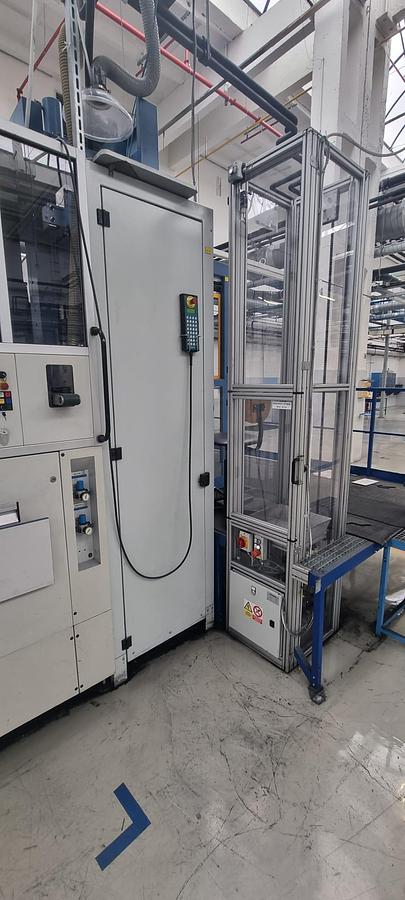

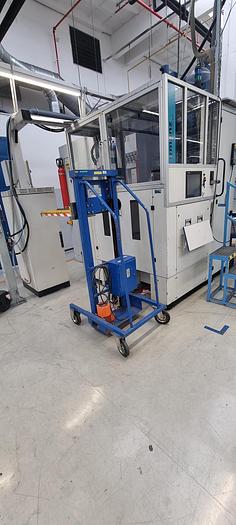

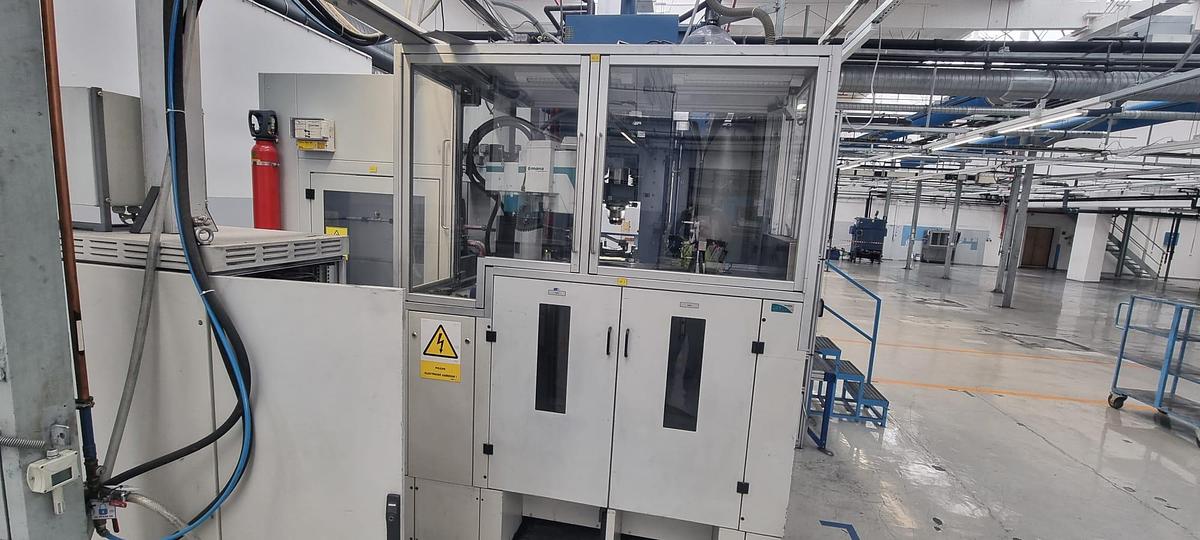

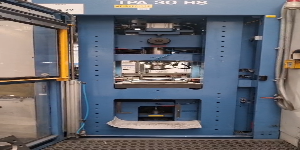

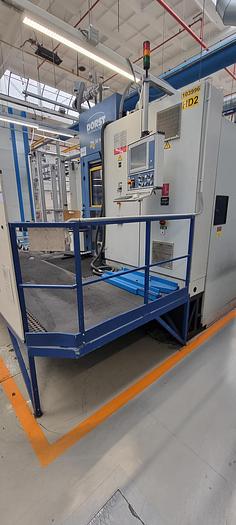

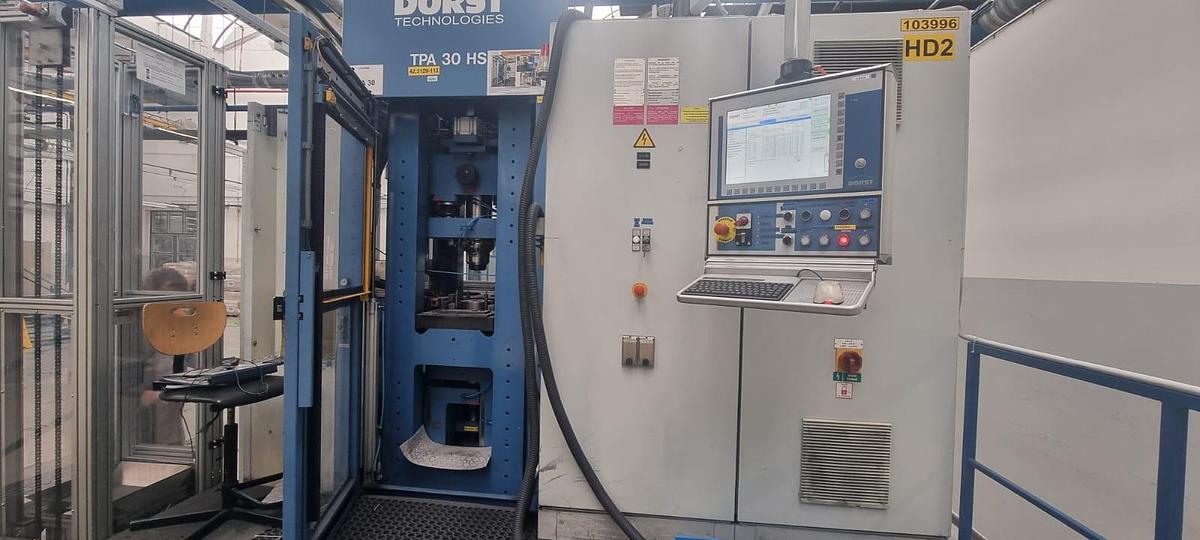

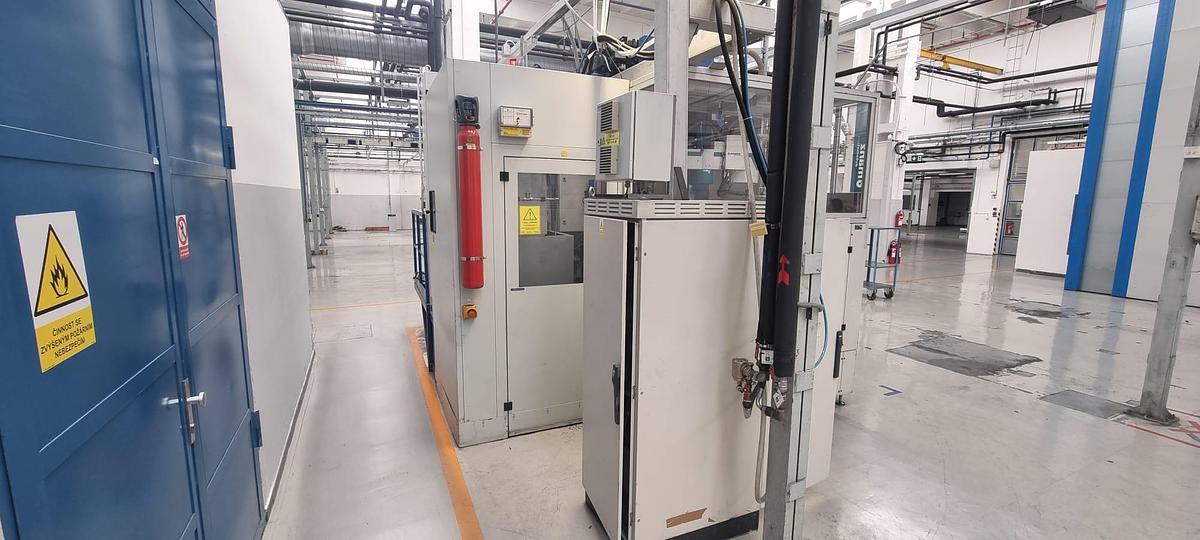

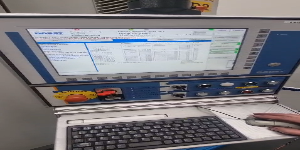

2007 Dorst TPA-30HS Hydraulic Powder Press

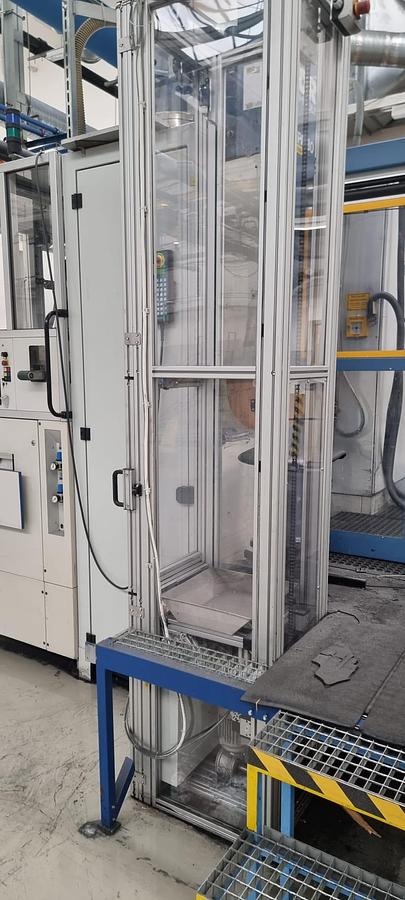

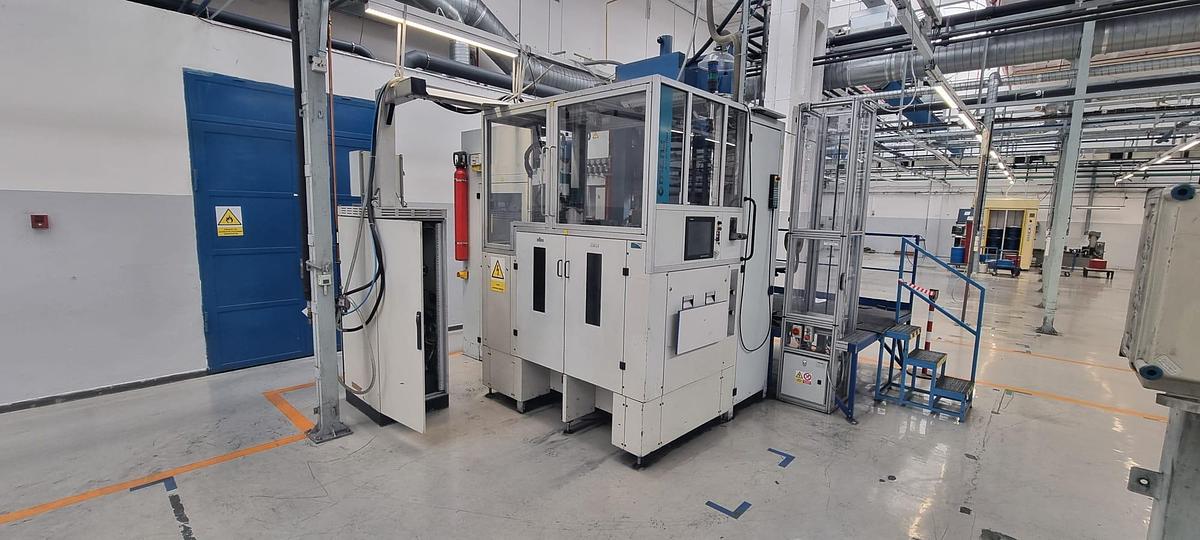

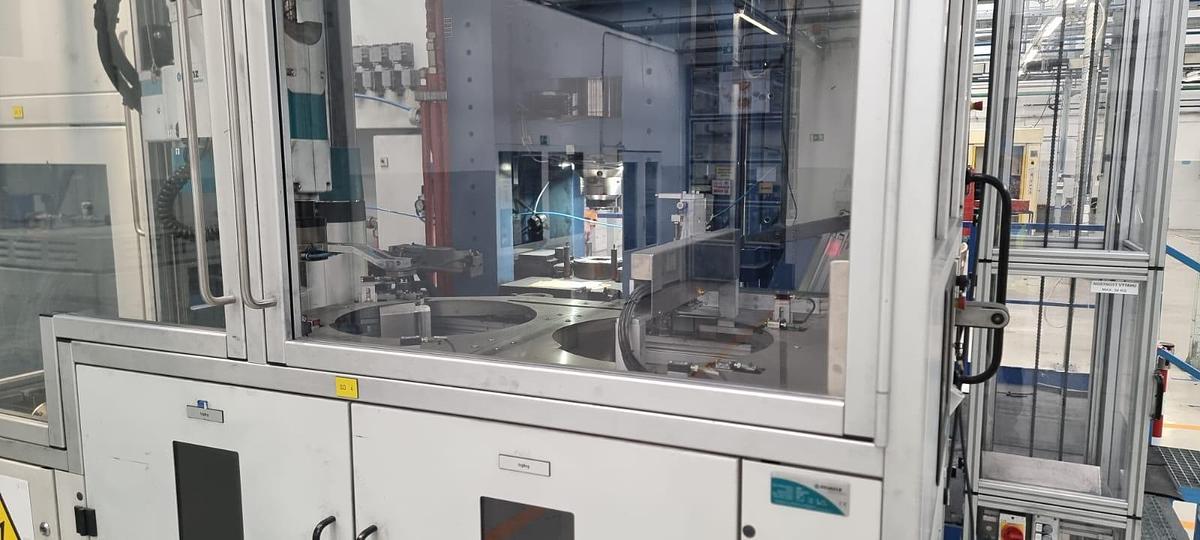

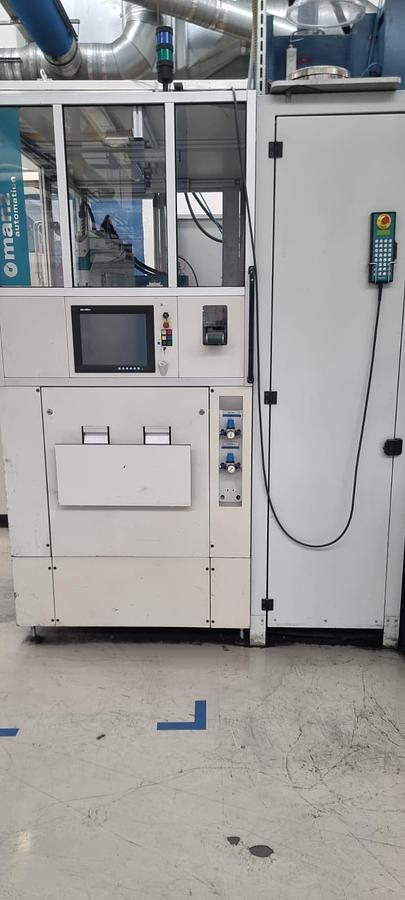

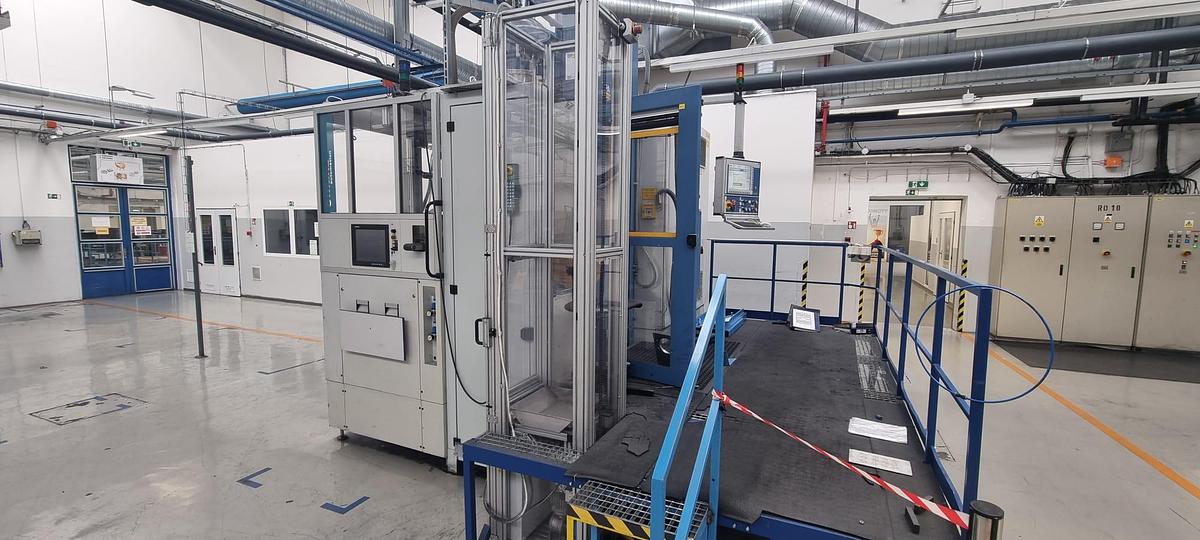

with robot + adaptor

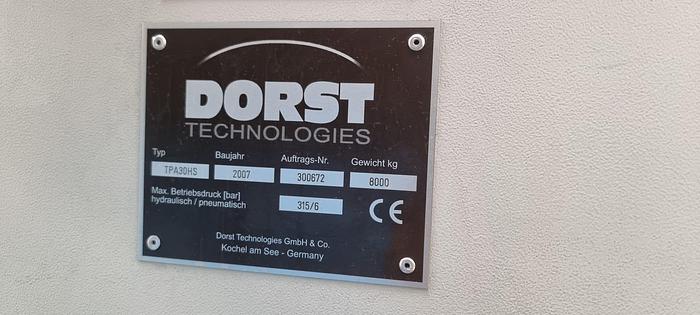

Technical Data DORST TPA 30 HS

Pressing force:300 kN

Upper ram travel:180 mm

Max. Fill height:130 mm

Core rod travel:130 mm

with 10mm fill height = 20 Strokes/min

with 25 mm fill height = 10 Strokes/min

Safety:

Satey Distance 230 mm

Stopping Time 140 ms

Measuring Point after U.D.C / starting point 30 mm

Top ram Vmax 160 mm

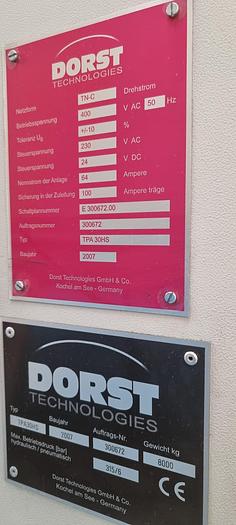

Power:

voltage 400 V / 50 Hz

main drive motor 22 kW

total power requirement 30 kW

Dimensions of the machine ca. 3,3 x 1,6 x 3,5 m

Positioning accuracy

Upper ram and die:0,002 mm

Core rod:0,01 mm

Filler drive:0,1 mm

press is still in operation

Highlights

• Short set-up times

• Precisely closed-loop controlled hold-down force

• Zero backlash guiding systems

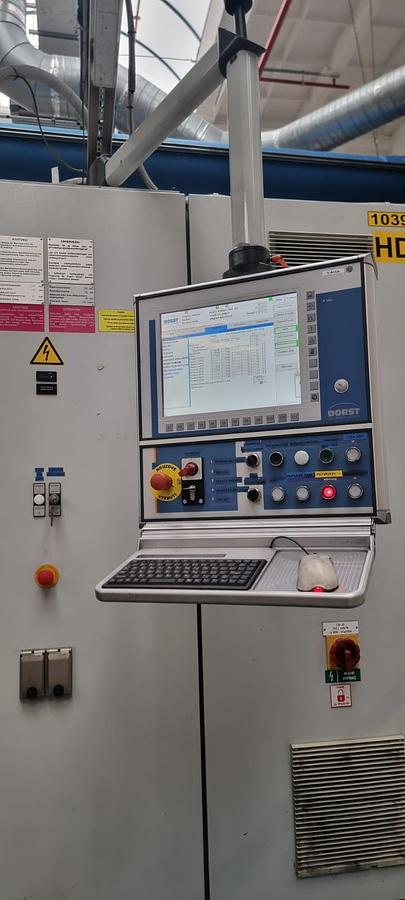

• Programming with IPG

• Low energy consumption

Characteristics

• Die plate stationary (ejection method)

• Max. number of upper levels: 2

• Max. number of lower levels: 2

• Use of quick clamping systems

• Tool change in the machine
