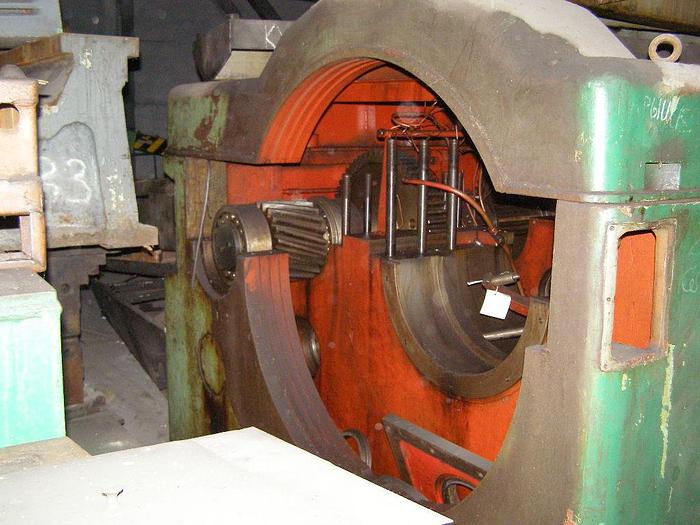

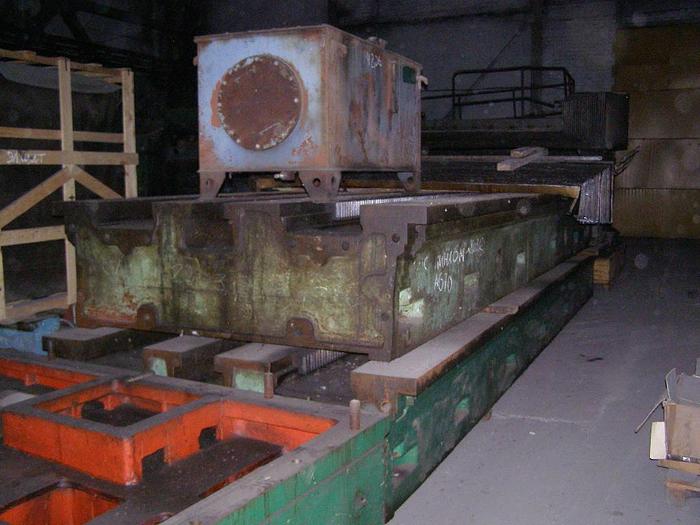

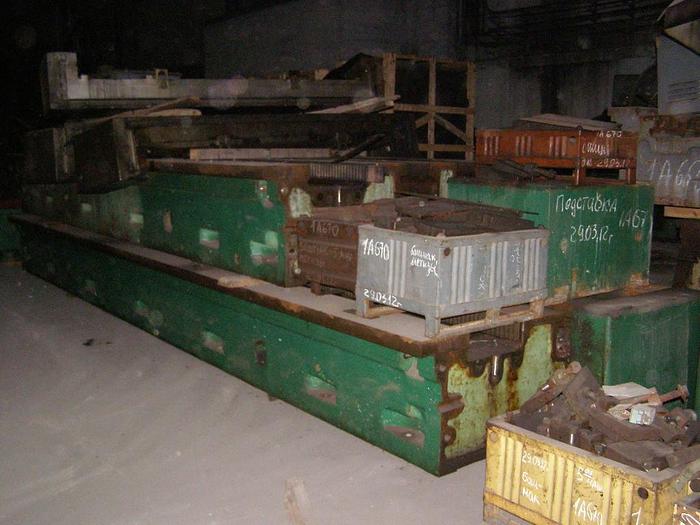

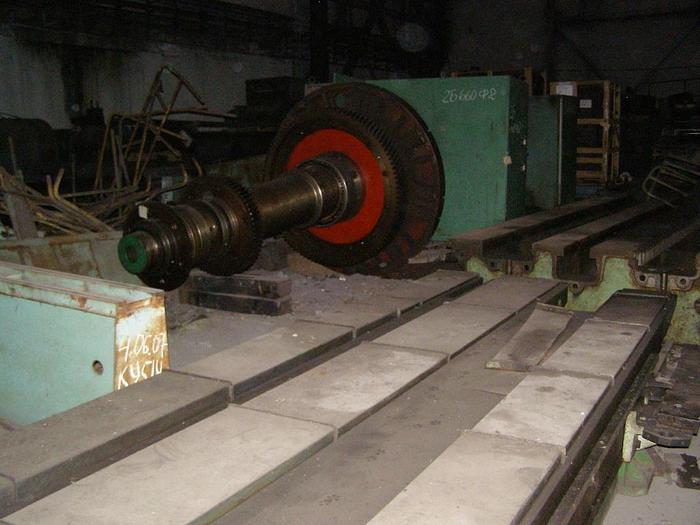

1969 Kramatorsk 1A670 (2000x16000) Heavy duty lathe

Max work-piece diameter:

-Over bed: 2000 mm

-Over support: 1600 mm

Min work-piece diameter: 400 mm

Table diameter: 2000 mm

Distance between centers: 16000 mm

Max weight of a work-piece: 63 ton

Spindle rotation frequency: 1-125 rpm

Opening diameter in a spindle: 80 mm

Thread cutting:

-Metric (step): 2-96 mm

-Inch (threads for 1''): 12-3/8

Max conicity by the way of combined feed: 0,15

Max total cutting force: 25 ton

Turn angle of the upper support part: 90 degrees

Longitudinal support feeding: 0,19-32 mm/r

Rapid support feeding: 3100 mm/min

Capacity of the main drive: 100 kw

Dimensions:

-Length: 17720 mm

-Width: 3250 mm

-Height: 2850 mm

Weight: 104 ton
