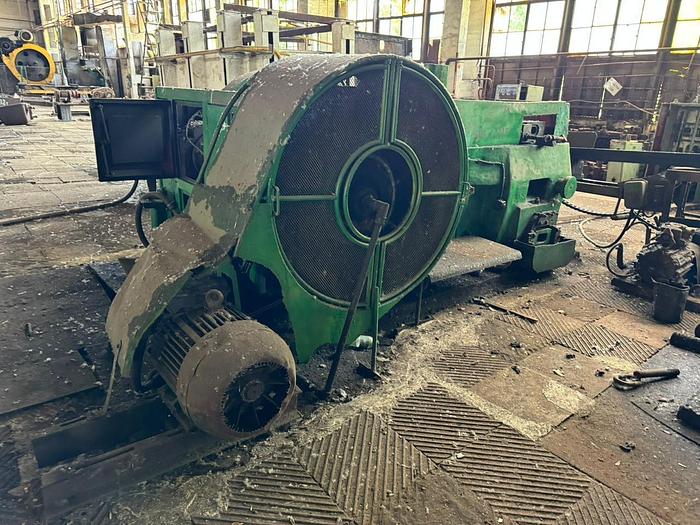

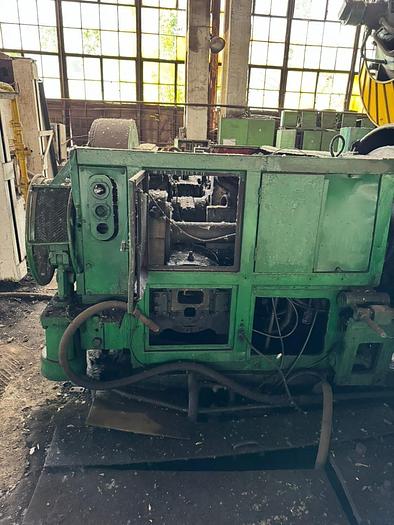

1987 STANKO VV1134,250T Horizontal forging machine
orCall +44 20 3287 0537
Specifications
| Manufacturer | STANKO |
| Model | VV1134,250T |
| Year | 1987 |
| Stock Number | 165407578 |
| Quantity | 2 |
| Upset slide nominal force | 2500 kN |
| Machine weight | 24680 kg |
Description
Max. diameter of initial blank: 30 mm Blank length: -Min.: 120 mm -Max.: 300 mm Max. diameter of upset flange: 60 mm Upset slide nominal force: 2500 kN Max. force on clamping slide with dies closed: 2500 kN Stroke: -Movable die: 100 mm -Upset slide (full): 220 mm -Die closing: 140 mm Slide strokes per minute: 45 Machine overall dimensions: -Length: 6050 mm -Width: 4600 mm -Height: 2260 mm Machine weight: 24680 kg
