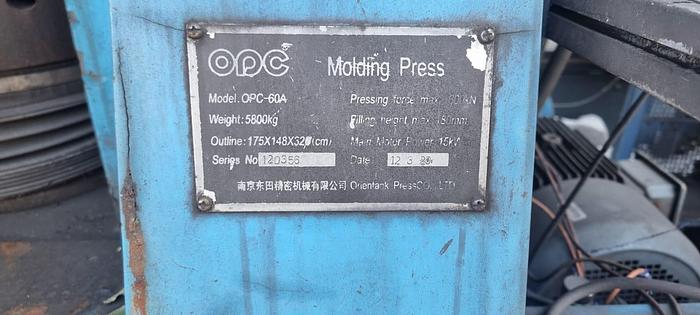

2020 ORIENTANKPRESS OPC - 60A Molding press
orCall +44 20 3287 0537
Specifications
| Manufacturer | ORIENTANKPRESS |
| Model | OPC - 60A |
| Year | 2020 |
| Serial Number | 120356 |
| Stock Number | 165211944 |
Description
Pressing force max KN 600
Withdrawal force max KN 300
Die Supporting force max KN 300
Die return force max KN 32
Upper punch travel mm 190
Upper punch adj.travel mm 200
Filling height max mm 180
Pressing travel max. mm 90
Withdraw travel max. mm 95
Top pressing travel max mm 18
Adjustment at Die position mm 50
Filler travel mm 140
Maximum forming Diameter mm 130
Cycle stroke /min 12-25
Main Motor Power KW 15
Total Power KW 15
Speed control method Inverter
Driving pressure for Clutch MPa 0.55
Pre-load Travel mm 110
Total air consumption L/min 300
Total weight Kg 5800
Overall size
H mm 3200
W mm 1750
D mm 1480
