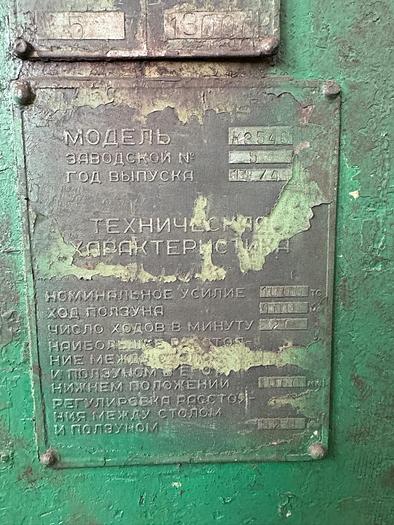

1974 TMP K3540 1000TN Sheet stamping press

Capacity, ton 1000

Ram stroke, mm 400

Max. ram strokes per min. 20

Shut height,mm 1000

Ram adjustment, mm 320

Table size, mm 3150 x 1800

Ram size (front-to-back), mm 1700

Column gap size, mm 1500 x 1900

Bolster plate thickness, mm 250

Ram travel to its extreme position where it develops nominal capacity, mm 12

Pneumatic cushion capacity, ton 200

Pneumatic cushion stroke, mm 200

Upper knock-out capacity, ton 50

Main motor power, kW 132

Press dimensions, mm 5150 x 4700 x 7830

Press weight, kg 200000
