2008 MG AK350 (3000x50) Plate Bending Machine - 3 Rolls

orCall +44 20 3287 0537

Specifications

ManufacturerMG
ModelAK350 (3000x50)
Year2008
Stock Number164261699

Description

CAPACITY:

-Plate width 3000 mm

-plate thickness 50 mm

-Pre-pinch thickness 40 mm

-Minimum rolling dia. 550 mm.

CONFIGURATION:

-useful surface  length on the rolls  3100 mm

-upper roll size 480 mm

-lower rolls size  440 mm

Machine configuration and accessories installed:

-Digital position readouts.

-Hardening treatment    of the 3 rolls.

-3 rolls driven hydraulic motorized with independent axial gear box on each roll.

-Conical plate bending  tiltable side rolls hydraulic, hardened contrast pad.

-Overload safety hydraulic  protection

-Synchronized hydraulic rotation

-Hydraulic power unit  40Hp motor. 3phase 380/50

-High pressure hydraulic power pack  with multi-pumps oil feed.

-Speed of rolling  variable slow/fast

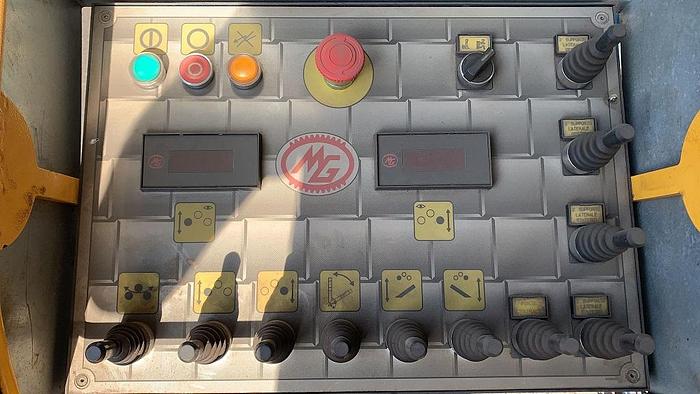

 -Centralized control panel electric on wheels with joysticks and digital readouts

-Emergency stop push button and safety perimetral all around the machine

-CE quality certification, Made in Italy manufacturing.

-Service manuals



ACCESORIES INCLUDED  ( see photo in enclosed )

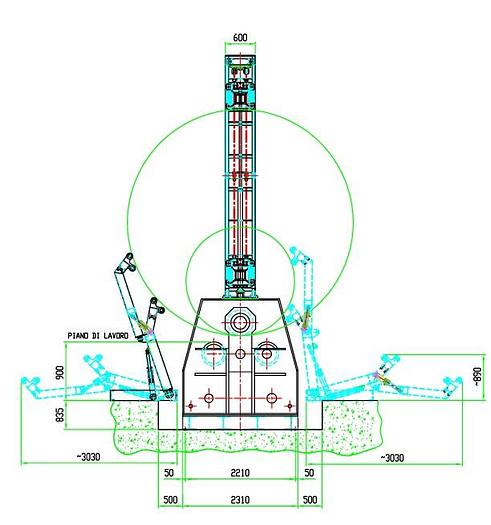

1X  central top support hydraulic 3ton for diameters up to 3 m.

2x side supports  hydraulic dual articulation 4 ton
