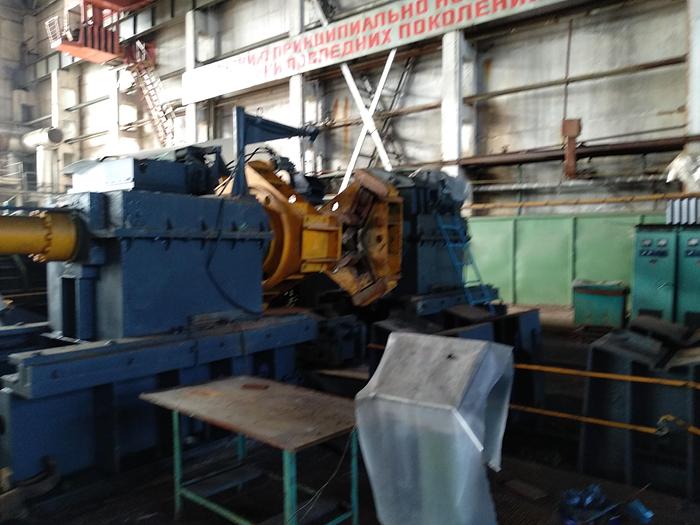

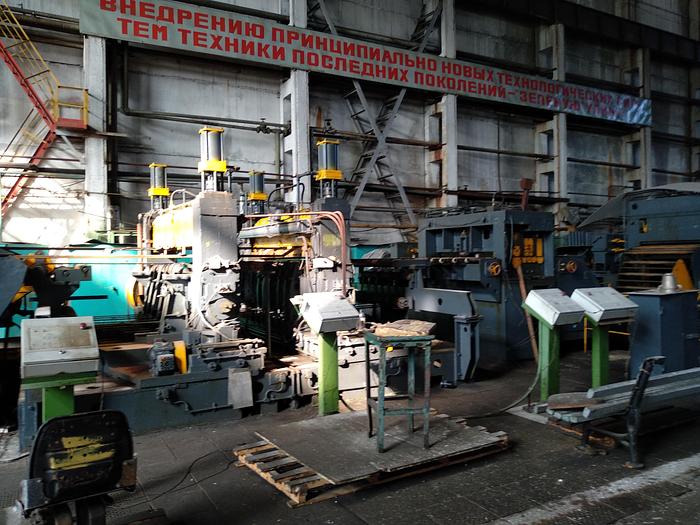

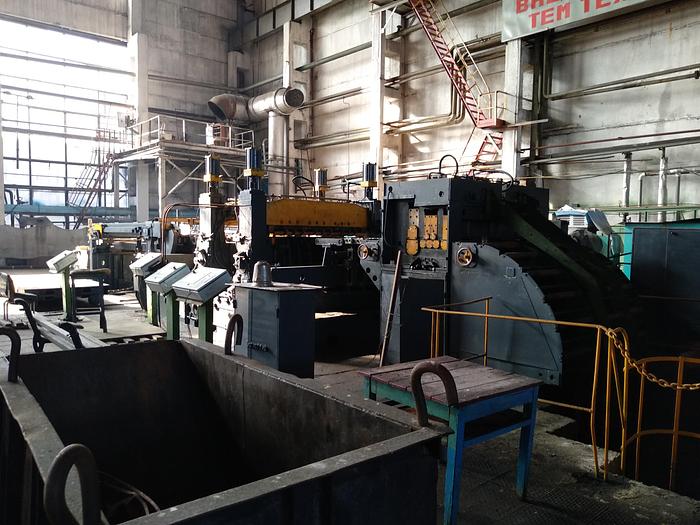

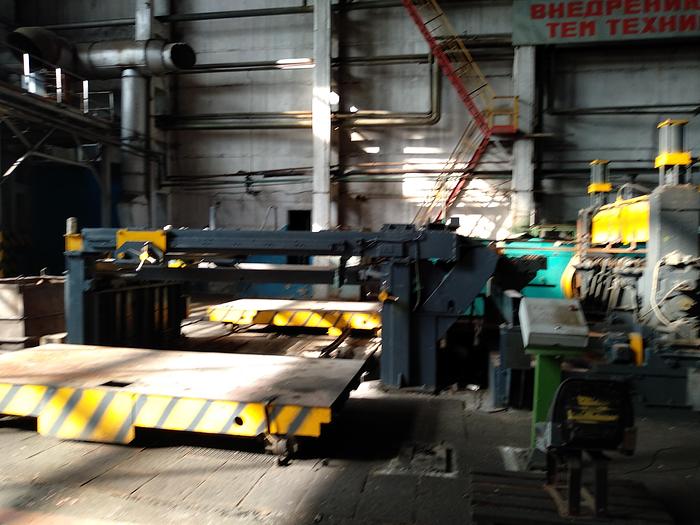

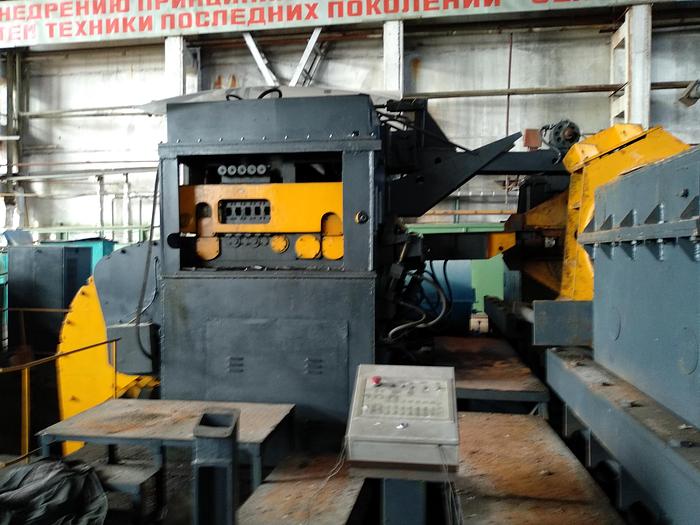

1986 STANKO AZOV L-116 Cross cutting line for roll

Processed material: cold-rolled and hot-rolled steel with and without zinc coating; Maximum thickness of the cut sheet metal (Normal Steel) 4 mm Minimum thickness of the sheet metal 0.5 mm Maximum weight of the sheet metal coil 26000 kg Maximum external diameter of the sheet metal coil 1800 mm Minimum internal diameter of the sheet metal coil 470 mm Maximum internal diameter of the sheet metal coil 670 mm Minimum width of the metal sheet 750 mm Maximum width of the metal strips 1600 mm Minimum length of the sheet metal 300 mm Maximum length of the sheet metal 4000 mm Maximum feed rate 90 m/min Accuracy of the cutting +/-1 mm Machine height 3350 mm Machine length 34900 mm Machine width 9400 mm Machine weight 137 ton
