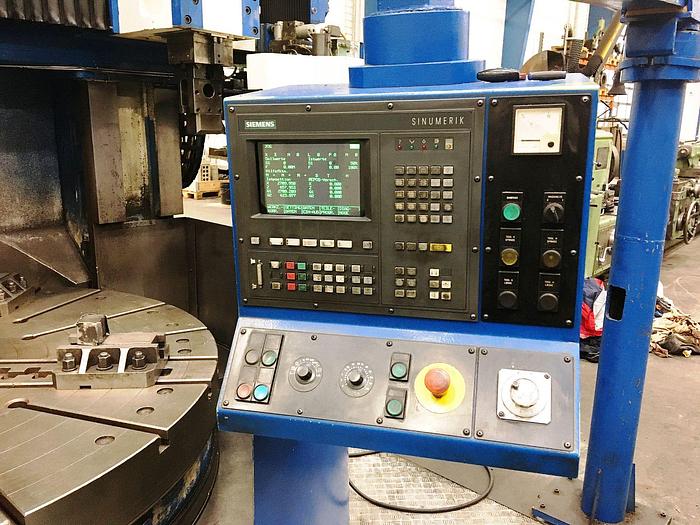

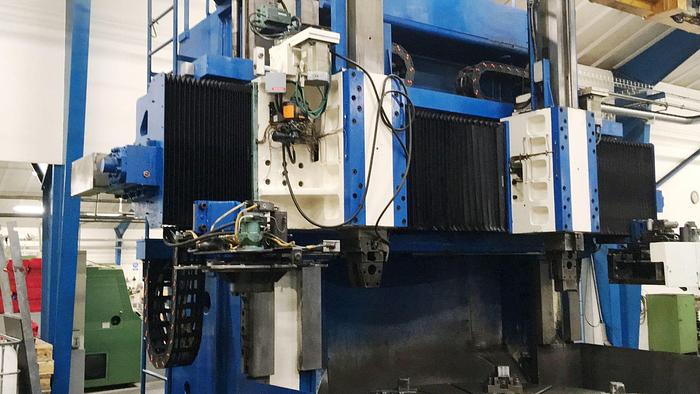

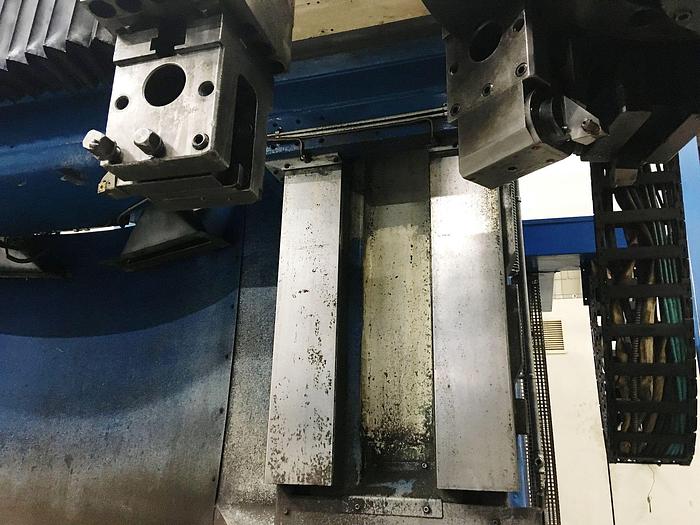

1999 SEDIN 1A525M-CNC VERTICAL TURNING LATHE

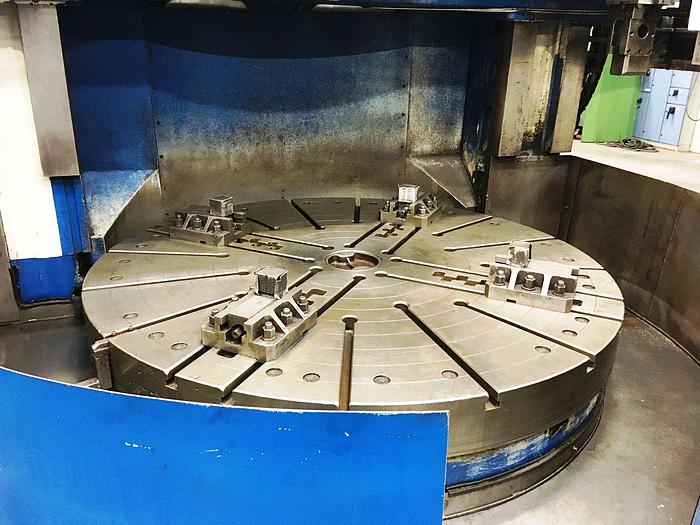

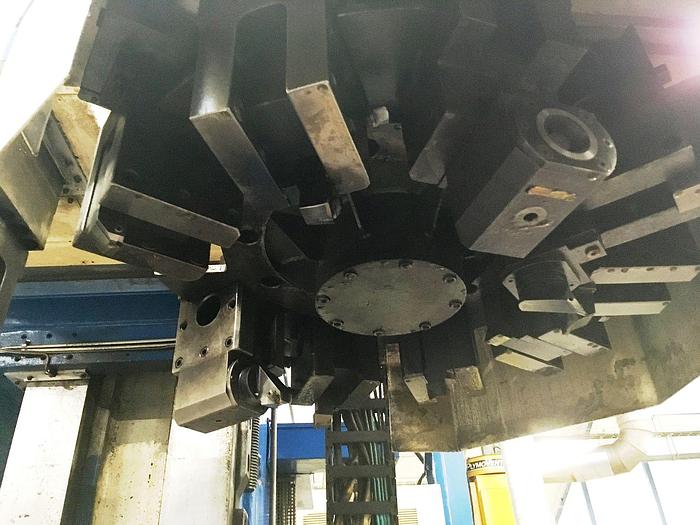

Diameter mm 2500 Height mm 1600 Faceplate diameter mm 2240 On the open weight of the workpiece kg 25,000 At an open height of the cutter section mm 50 On the open stroke length of the caliper slide mm 1250 The number of tool sockets in the store mm 10 Faceplate rotation speed rpm 0.27-140 Working feed of a support on each axis mm / rev mm / min 0,01-100 0,1-1000 The resolution of the coordinates of the movement of the upper support mm 0,001 Sweep speed mm / min 6000 The greatest allowable cutting reinforcement: for right caliper kN 50 for left caliper kN 35 total kN 75 The greatest torque on a faceplate of kN · m 80 Main drive power kW 55 (70) * Sound level at the operator’s workplace dBA 80 Machine weight kg 47000
