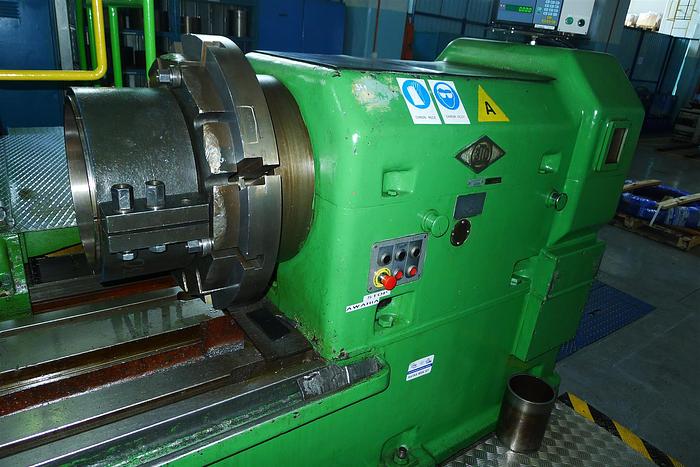

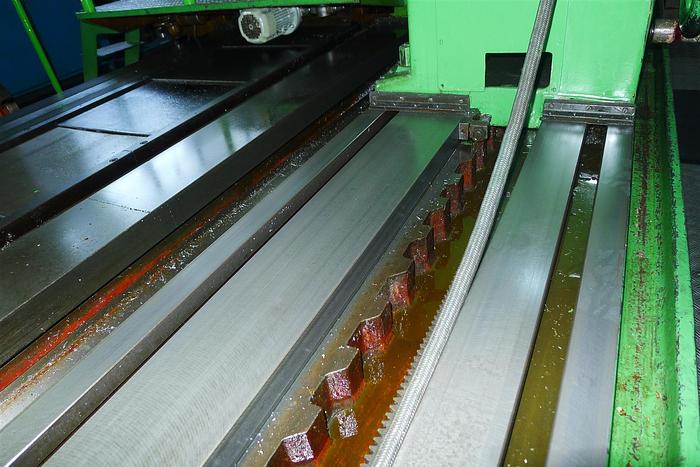

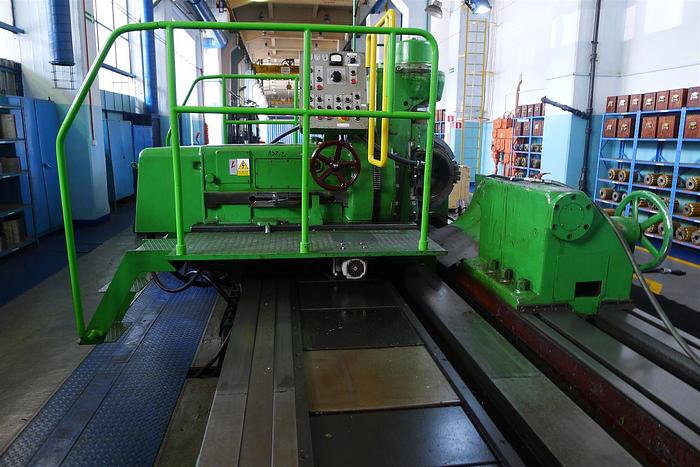

Horizontal Thread Milling Gear Hobbing Machine KOLOMNA 5B371
Sold
Specifications
Manufacturer | KOLOMNA |
Model | 5B371 |
Year | 1973 |
Stock Number | 02782 |
Max workpiece Ø,mm | 500 |
Max workpiece length ,mm | 3000 |
Threading length,mm | 2500 |
Module | 10-25 |
Description
max. wheel diameter 500 mm
gear width 3.000 mm
max. module high precision 10 can be make also 25
min. wheel diameter 50 mm
hobbing length 2.500 mm
workpiece length - max. 3.000 mm
max.helical angle 45 °
workpiece weight 4000 kg
faceplate diameter 560 mm
height of centering tips over bed 450 mm
number of teeth 25-250
hob dia. - max. 250 mm
hob length - max. 300 mm
axis distance between cutter and workpiece - min. 60 mm
axis distance between cutter and workpiece - max. 385 mm
weight of the machine ca. 28 t
dimensions of the machine ca. 8,0 x 3,0 x 2,0 m
ADDITIONAL INFORMATION
Horizontal pinion and hobbing machine for toothing straight and
Helical gears, pinion shafts and splines
Accessories / Equipment:

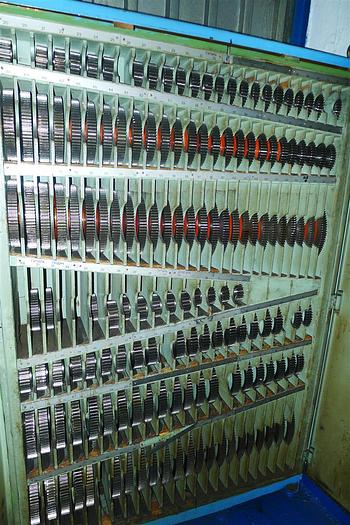

- change wheels
- various milling arbors
