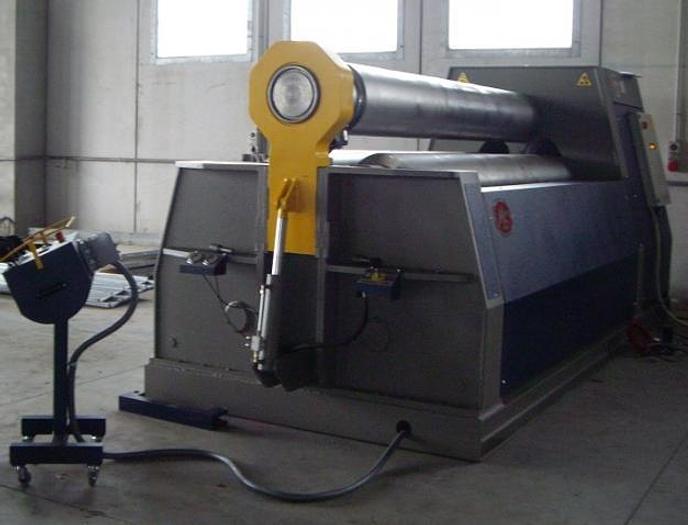

new MG MH332 (3000x32) HYDRAULIC 4 ROLL PLATE BENDING MACHINE

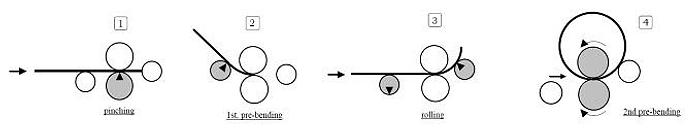

Planetary dual pinch plate pre-bending -new hydraulic technology. -Width of plate: 3000 mm -Thickness of plate rolling: 32 mm -Pre-bending thickness 25 mm -Total electric power 25 Hp -Nominal capacity rated on a plate yield strength 255 Mpa. -Minimum bending diameter ID 500 mm obtainable with medium plate thickness Rolls dimensions: -Surface length mm. 3100 -Upper roll mm. 410 -Pinch roll mm. 370 -Side rolls mm. 300 Configuration installed: -Hardening of the four rolls, high surface hardness 54 / 58 Hrc. -Conical plate bending hydraulic attachment -Central rolls individual driven hydraulic motorized with axial planetary gear unit independent on each roll. -Pre-bending facility with adjustable load pressing force of the pinch roll to optimize the edge setting of the plate. -Calibration system for the re-rolling of the welded shells. -Digital readout position of the two side rolls. Shipment dimension and packing list: Nr. 1 Machine package 205 x 570 x H 210 cm -Nr. 1 Control console package 100 x 80 x H90 cm -Total weight 19 Ton
