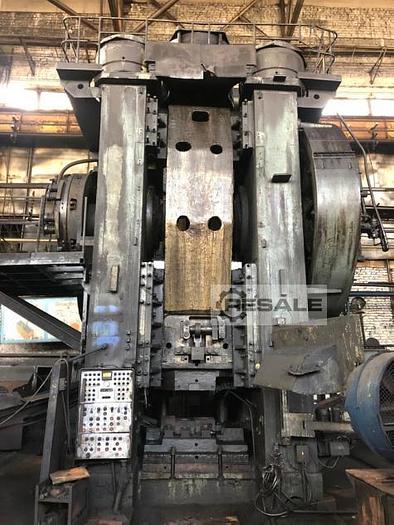

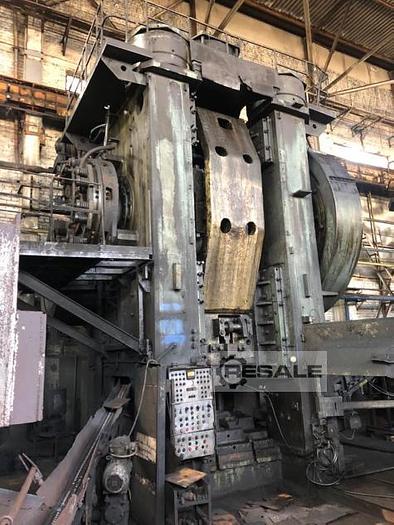

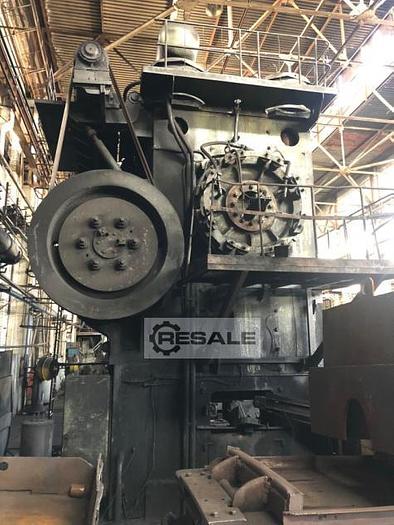

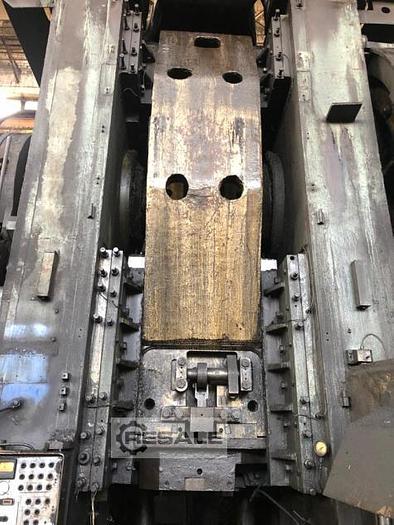

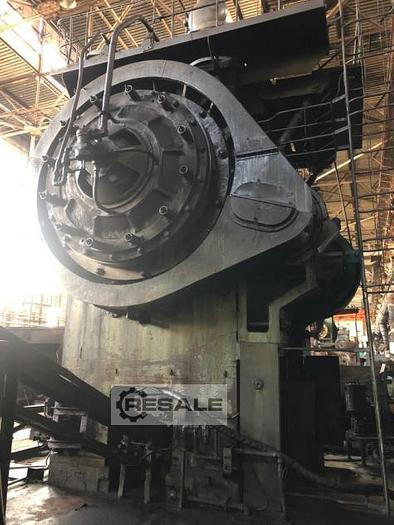

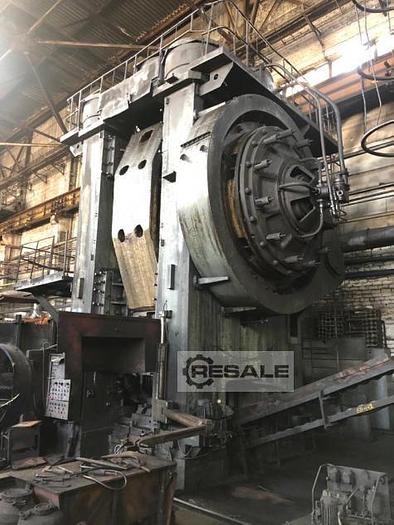

1986 TMP VORONEZH KB8546 4000TN Hot stamping press

Rated capacity: 40000 kN Shut height: 1000 mm Adjustable distance between table and slide: 10 mm Dimensions of openings in L. H. press side wall: -Height: 1100 mm -Width: 1000 mm Table working surface: -L-to-R: 1570 mm -F-to-B: 1620 mm Slide dimensions: -L-to-R: 1420 mm -F-to-B: 1420 mm Slide stroke: 400 mm Slide strokes per minute (continuous): 50 Number of pitmans: 2 Number of drive stages: 2 Top ejector mechanism: -Stroke: 65 mm -Capacity: 80 kN Bottom ejector mechanism: -Stroke: 65 mm -Capacity: 125 kN Main drive motor power: 160 kW Overall dimensions: -L-to-R: 6228 mm -F-to-B: 5515 mm -Height above floor level: 7790 mm Mass (approximately): 362-5 tons
