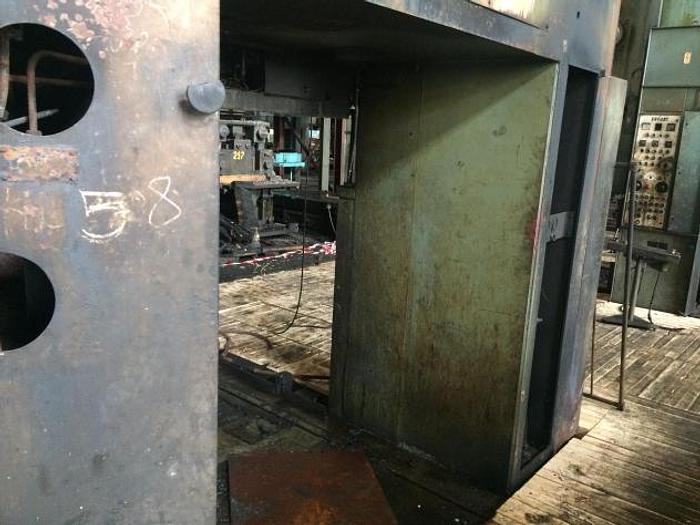

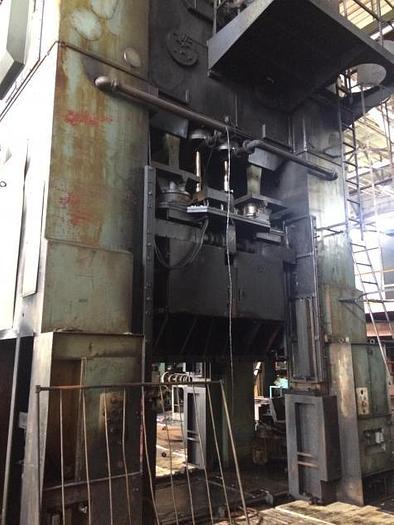

1983 ERFURT PKnZT VI 800 TS Double-action deep-drawing press

Max. force of internal slide:500t distance to bottom dead center 12 mm Max. force of internal slide:200t distance to bottom dead center 300 mm stroke of internal slide:640 mm Max. force of outer slide:315t distance to bottom dead center 6.3 mm stroke of outer slide:440 mm Adjustability of each of the sliders 300mm Max. drawing depth:300mm Moving Table (WxD):2500x1700mm Weight: 221.7t
