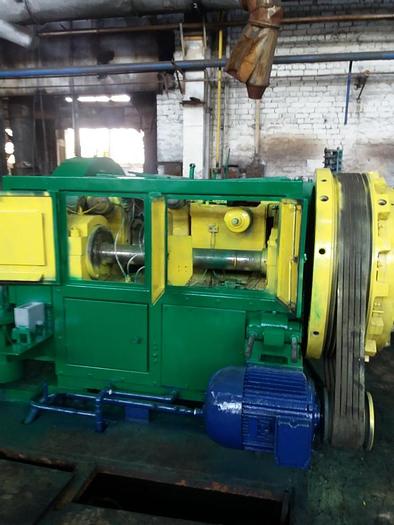

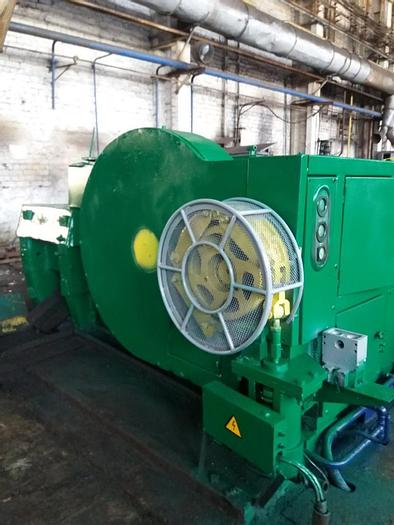

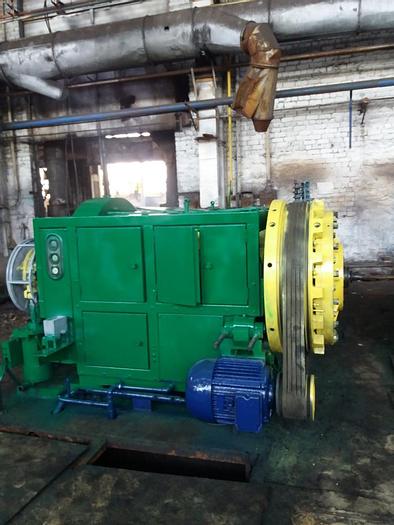

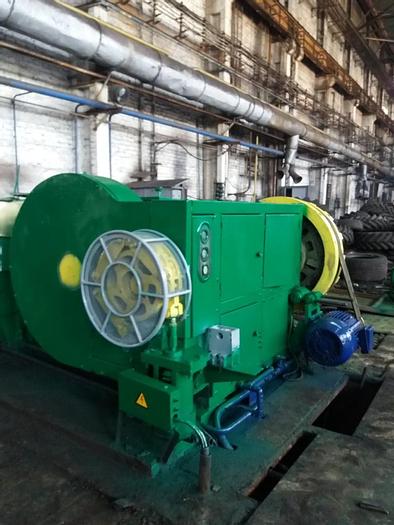

1991 STANKO VV1134,250T Horizontal Forging Machines
orCall +44 20 3287 0537
Specifications
Manufacturer | STANKO |
Model | VV1134,250T |
Year | 1991 |
Stock Number | 145130999 |
Quantity | 2 |
Upset slide nominal force | 2500 kN |
Machine weight | 24680 kg |
Description
Max. diameter of initial blank: 30 mm Blank length: -Min.: 120 mm -Max.: 300 mm Max. diameter of upset flange: 60 mm Upset slide nominal force: 2500 kN Max. force on clamping slide with dies closed: 2500 kN Stroke: -Movable die: 100 mm -Upset slide (full): 220 mm -Die closing: 140 mm Slide strokes per minute: 45 Machine overall dimensions: -Length: 6050 mm -Width: 4600 mm -Height: 2260 mm Machine weight: 24680 kg
