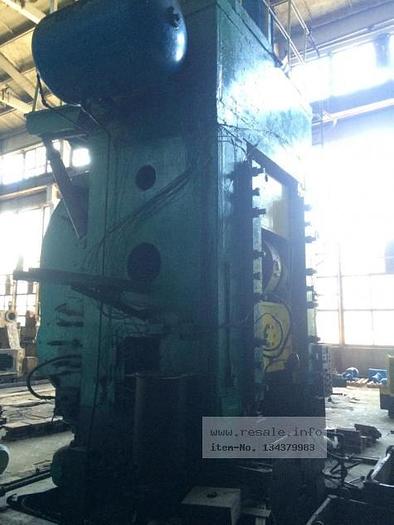

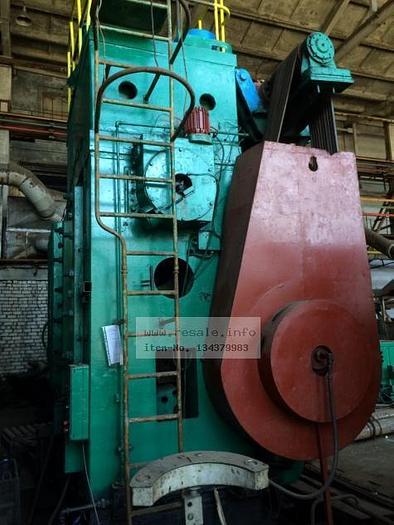

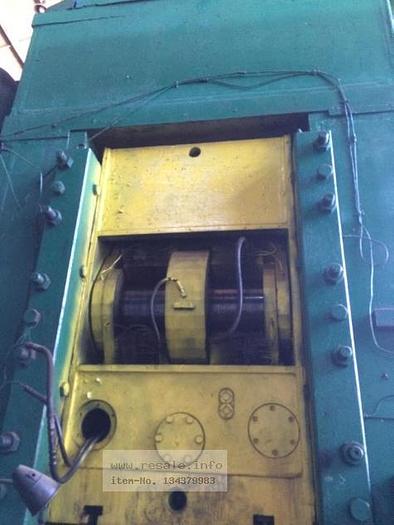

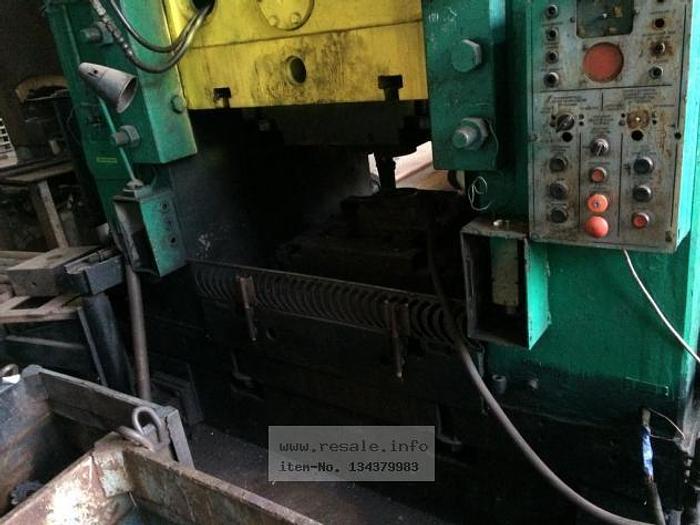

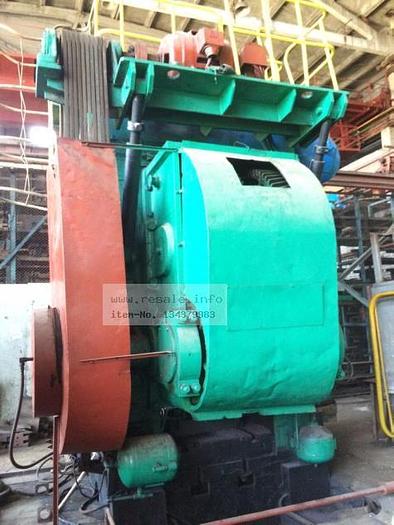

1973 Knuckle joint press TMP VORONEZH K8344,2500T

orCall +44 20 3287 0537

Specifications

ManufacturerTMP VORONEZH
ModelK8344,2500T
Year1973
Stock Number134379983
Capacity2500 ton
Slider stroke190 mm
Strokes per min20
Press weight97715 kg

Description

Capacity: 2500 ton Slider stroke: 190 mm Size of a working course of slider before its extreme bottom position corresponding nominal capacity: 4.5 mm Number of slider courses per minute: 20 Maximum distance between table and slider (in lower position of slider): 800 mm Distance adjustment between table and slider: 20 mm Table overall dimensions: - from front to rear: 1400 mm - from left to right: 1250 mm Thickness of a under-forginig plate: 230 mm Hole diameter in a table: 125 mm The size of a slider in front - back: 900 mm Lower eliminator stroke length: 190 mm force of the bottom pusher: 75 ton Distance between railings: 950 mm Course of a pusher in a slider: 15 mm Capacity of a pusher in a slider: 25 ton Admissible number of starts per minute: 10 Machine overall dimensions - length: 3910 mm - width: 3920 mm - height: 6220 mm Press weight: 97715 kg
