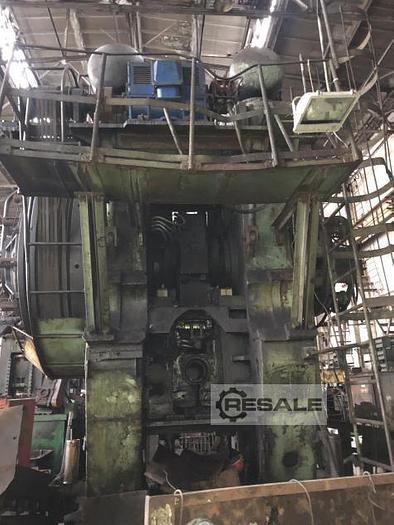

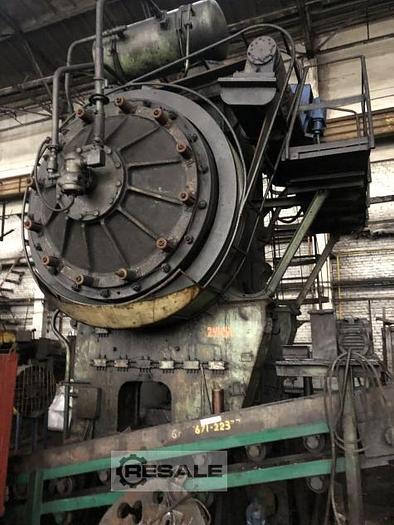

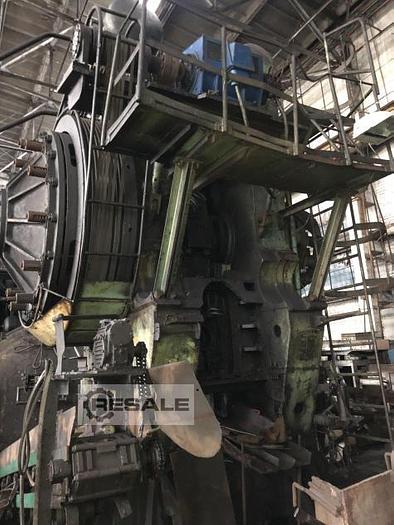

1969 TMP VORONEZH K8542 1600t MECHANICAL HOT STAMPING PRESS
Sold
Specifications
| Manufacturer | TMP VORONEZH |
| Model | K8542 1600t |
| Year | 1969 |
| Stock Number | 144603590 |
| Back shaft | NO |
| Capacity | 1600 tons |
| Slide stroke | 300 mm |
| Table overall dimensions | 940x1200 mm |
| Press weight | 120 tons |
Description
Capacity: 1600 tons
Slide stroke: 300 mm
Slide stroke length at maximum force: 0,16 mm
Distance adjustment between tableand slider: 10 mm
Slide stroke number in 1 min: 75
Length of a rod: 920 mm
The closed height: 660 mm
Table overall dimensions: 940x1200 mm
Table height above floor level: 450 mm
Slide overall dimensions: 860x910 mm
The size of lateral windows:
-Height: 560 mm
-Width: 600 mm
Main motor: 110 kW
Press overall dimensions:
-Length: 5060 mm
-Width: 3940 mm
-Height above floor level: 5125 mm
Press weight: 120 tons
