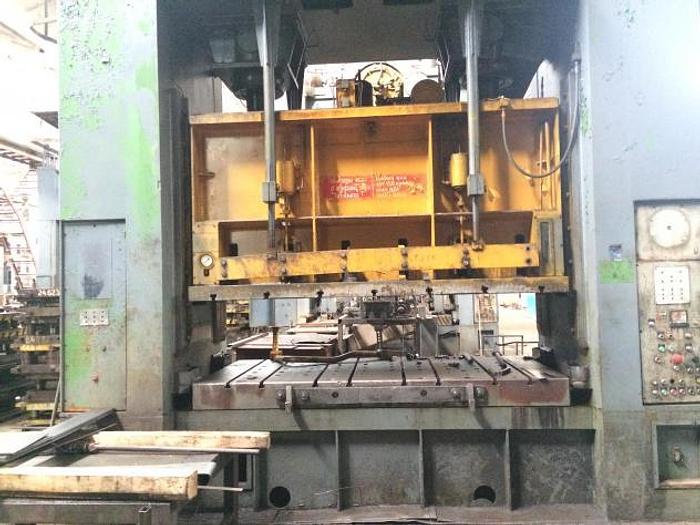

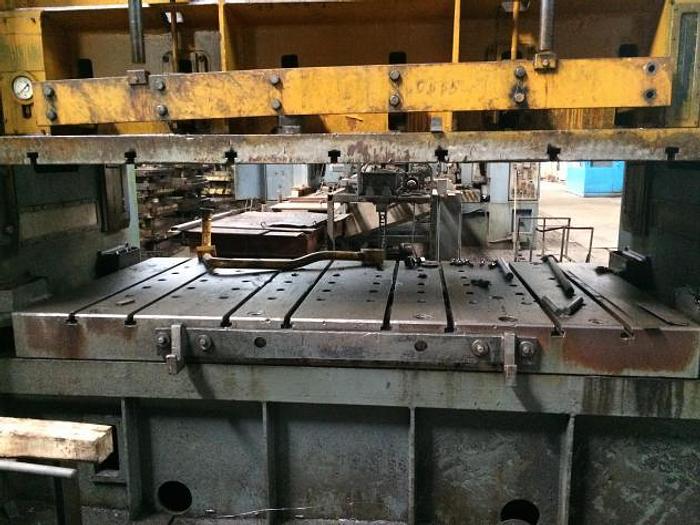

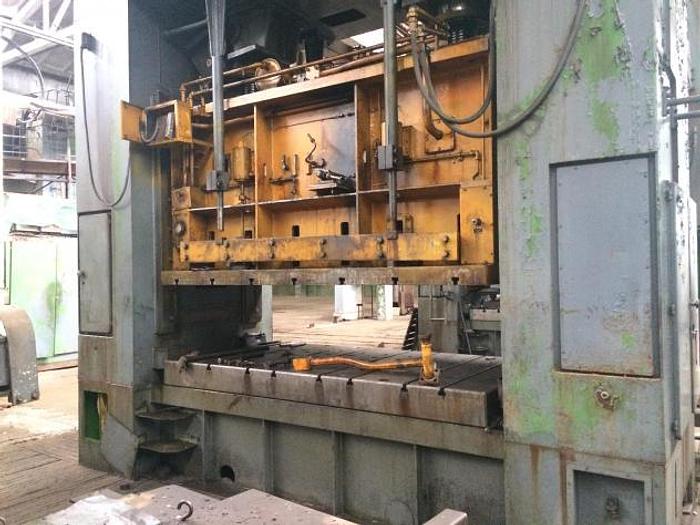

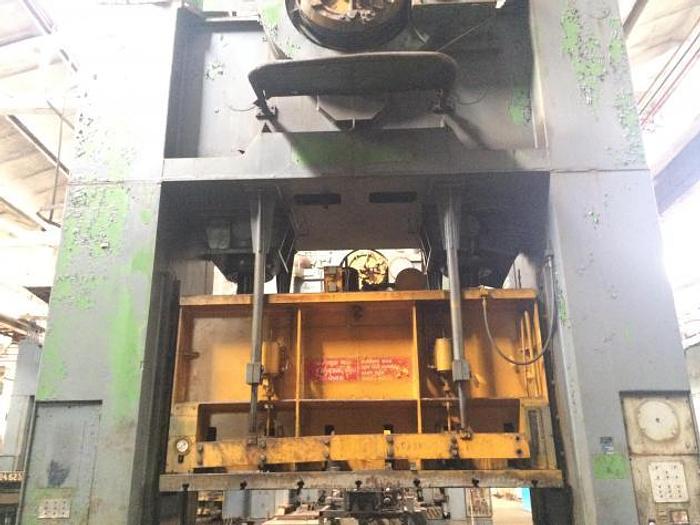

1976 RAVNE DE 500 Sheet stamping press
orCall +44 20 3287 0537
Specifications
| Manufacturer | RAVNE |
| Model | DE 500 |
| Year | 1976 |
| Stock Number | 124240565 |
| Quantity | 1 |
Description
The force of 500 tons.
stroke 305 mm.
Adjust slide bar 254 mm.
Distance between table and slide 485 mm.
Distance between columns 3050 mm.
Table size 2740 x 1370 mm.
Pusher in table 155 mm.
Maximum press height above floor level 6900 mm.
Power 37 kW.
Number of RAM strokes 12 strokes/min.
Weight 93 tons.
