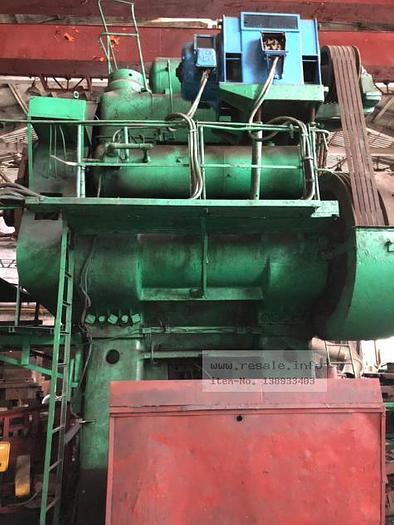

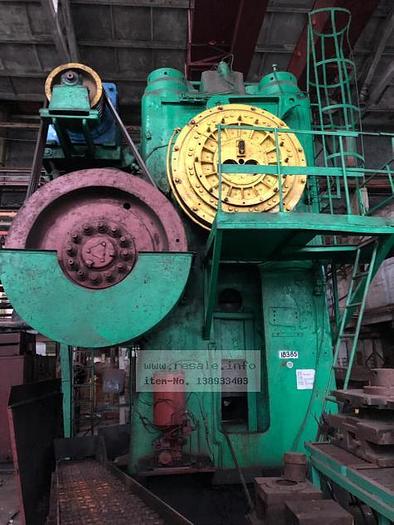

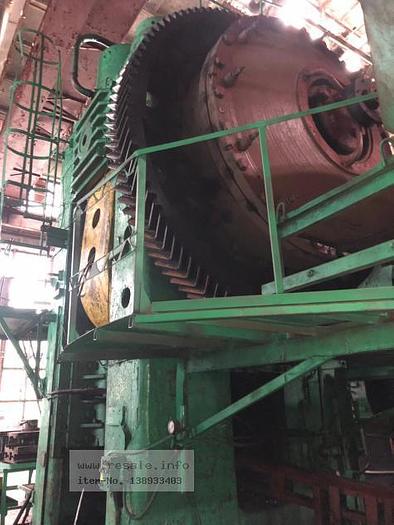

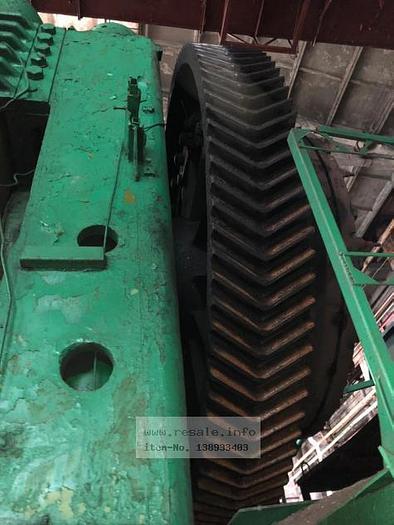

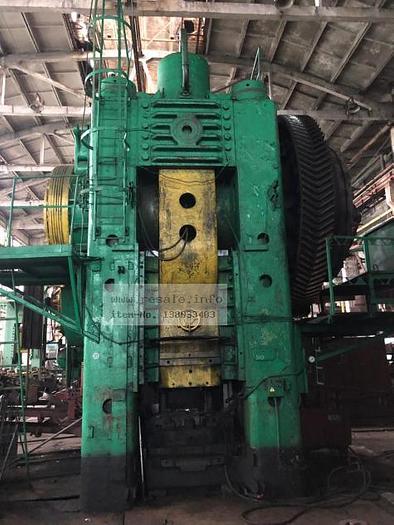

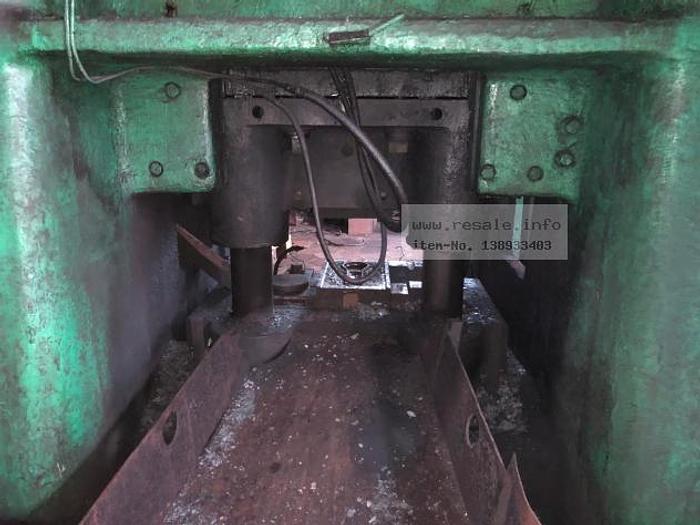

1979 SMERAL LKM 4000 Hot forging press

orCall +44 20 3287 0537

Specifications

ManufacturerSMERAL
ModelLKM 4000
Year1979
Stock Number138933403-18385
Quantity1
Capacity, ton4000
Slider stroke, mm400
Table size, mm1120 x 1600
Press weight, kg280 092 kg
LocationUkraine
Seller-item-no.18385

Description

-Max pressure at the end of stroke – 4000 ton -Press stroke – 400 mm -Number of stroke – 50 per minute -Max distance of stroke from the table – 1400 mm -Dimensions of slider: 1320 x 1320 mm -Bed dimensions: 1120 x 1600 mm -Bed movement by height – 20 mm -Max pressure of upper ejector – 20 t -Max stroke of upper ejector – 65 mm -Max pressure of lower ejector – 40t -Max stroke of lower ejector – 80 mm -Main motor power – 225 kW -Main motor speed – 730 rpm -Total width — 6280 mm -Total depth – 4885 mm -Total height – 8870 mm -Height over the bed – 7315 mm -Total net weight – 280 092 kg
