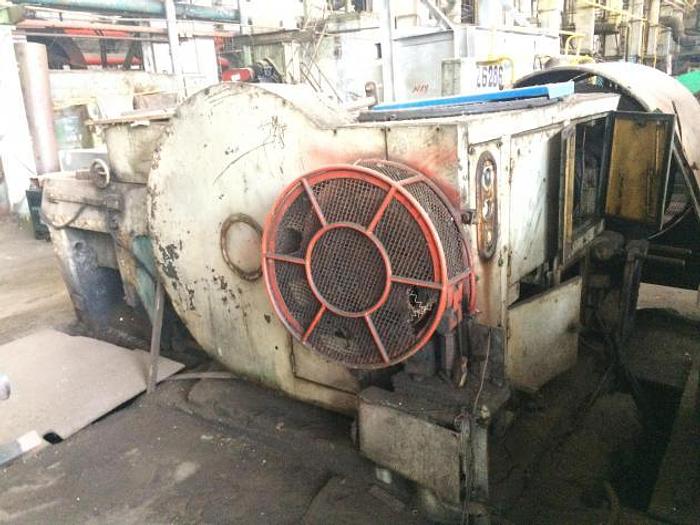

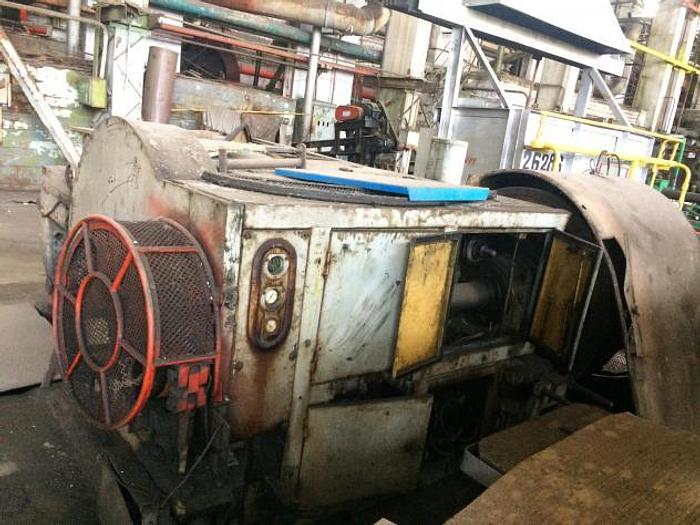

1983 STANKO V1134,250T Horizontal forging machine
orCall +44 20 3287 0537
Specifications
| Manufacturer | STANKO |
| Model | V1134,250T |
| Year | 1983 |
| Stock Number | 125694859 |
| Quantity | 1 |
| Upset slide nominal force | 2500 kN |
| Machine weight | 24680 kg |
Description
Max. diameter of initial blank: 30 mm
Blank length:
-Min.: 120 mm
-Max.: 300 mm
Max. diameter of upset flange: 60 mm
Upset slide nominal force: 2500 kN
Max. force on clamping slide with dies closed: 2500 kN
Stroke:
-Movable die: 100 mm
-Upset slide (full): 220 mm
-Die closing: 140 mm
Slide strokes per minute: 45
Machine overall dimensions:
-Length: 6050 mm
-Width: 4600 mm
-Height: 2260 mm
Machine weight: 24680 kg
