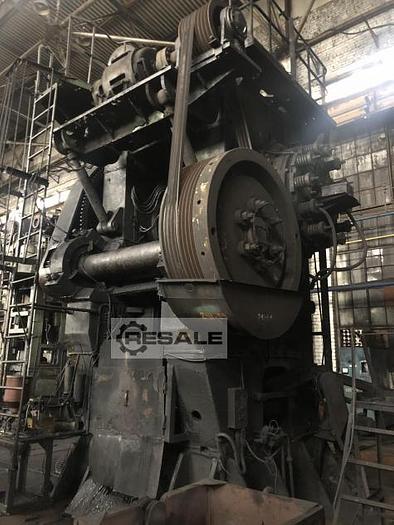

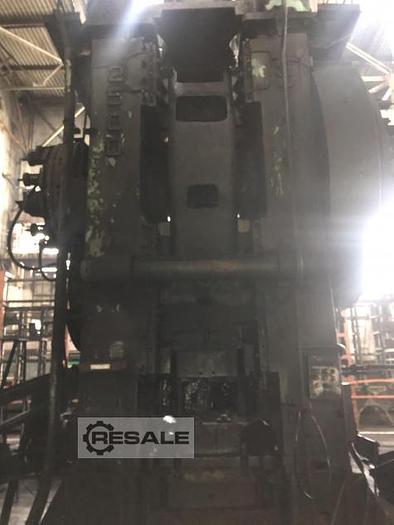

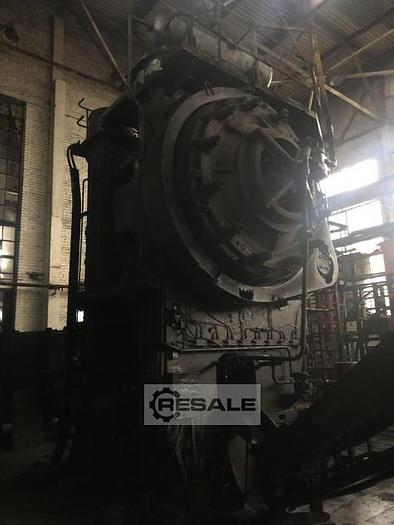

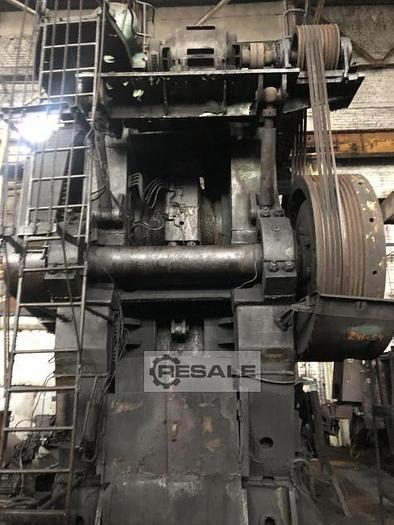

1975 TMP VORONEZH K8544,2500T HOT STAMPING PRESS
Sold
Specifications
Manufacturer | TMP VORONEZH |
Model | K8544,2500T |
Year | 1975 |
Stock Number | 144524149 |
Capacity, ton | 2500 |
Connecting rod | 1 |
Back shaft | YES |
Description
CAPACITY TN 2500
INTERMEDIATE SHAFT YES
CONNECTING ROD N° 1
SLIDE STROKE MM 350
CONTINUOUS STROKE PER MINUTE N° 60
SINGLE STROKE PER MINUTE N° 14
DIE SPACE MM 890
DIE SPACE ADJUSTMENT IN THE TABLE MM 10
TABLE DIMENSIONS
L TO R MM 1200
F TO B MM 1400
SPACE BETWEEN UPRIGHTS MM 1320
RAM DIMENSIONS
L TO R MM 1070
F TO B MM 1120
SUPERIOR KNOCKOUT
POWER TN 6
STROKE MM 50
PUSHERS N° 1
LOWER KNOCKOUT
POWER TN 10
STROKE MM 50
PUSHERS N° 1
DIMENSIONS SIDE WINDOWS
LEFT RIGHT MM 720
HEIGHT MM 890
MAIN MOTOR POWER KW 132
OVERALL DIMENSIONS
L TO R MM 5350
F TO B MM 4680
HEIGHT ABOVE FLOOR LEVEL MM 6840
PRESS TOTAL WEIGHT TN 198
