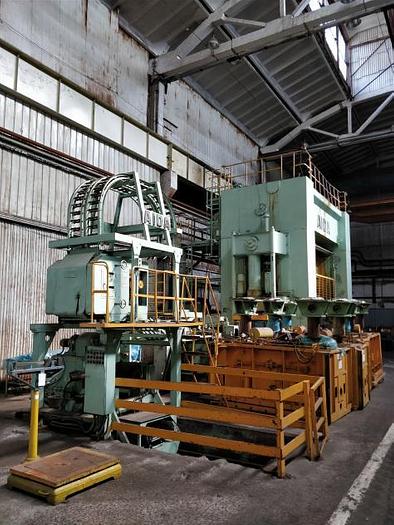

1974 AIDA FT2-40 Transmax press

Effort between stands 400 tons Number of positions incl. cutting position - 7 Maximum force at each pos. - 150 tons Number of strokes of the slider 8-12 Stroke 800 mm. The dimensions of the holder are 690 x 1150 mm. hickness of bolster plate: 250 mm Dimension of bolster plate: 4200x1400 mm The height of the press 7400 mm. (Max) Power of the main electric motor 110 kW Power supply 380V Working air pressure 5 kg / cm2 Documentation available. Weight 165 tn
