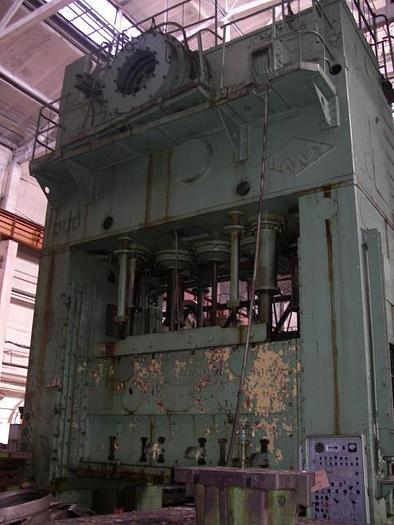

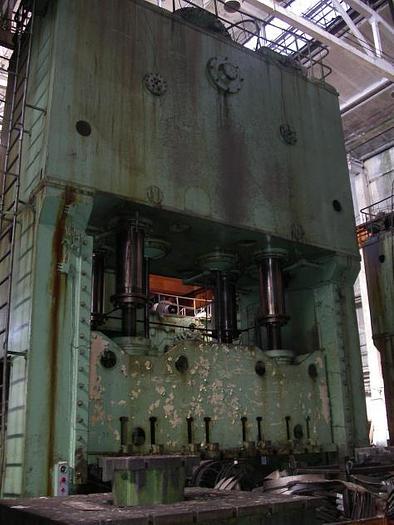

1980 TMP Voronezh KA4537,500T Four crank single action press

Capacity, ton 500 Rated distance of slide above bottom, mm 12 Slide stroke, mm 630 Continuous run frequency, min-1 24 Max. single strokes frequency, min-1 18 Shut height, mm 1230 Shut height adjustment,mm 500 Slide dimensions, mm 1800 x 3150 Bolster plate dimensions, mm 1800 x 3150 Main drive electric motor power, kW 90 Overall dimensions, mm 5500 x 4550 x 7540 Press weight, kg 170000
