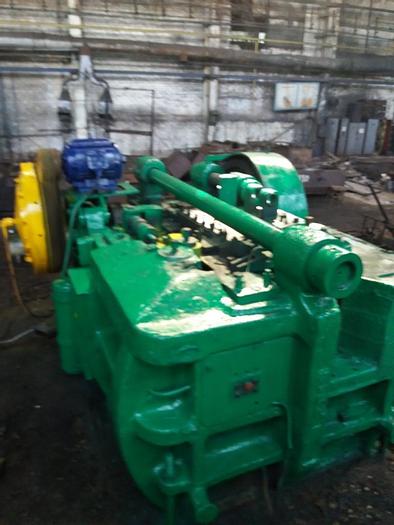

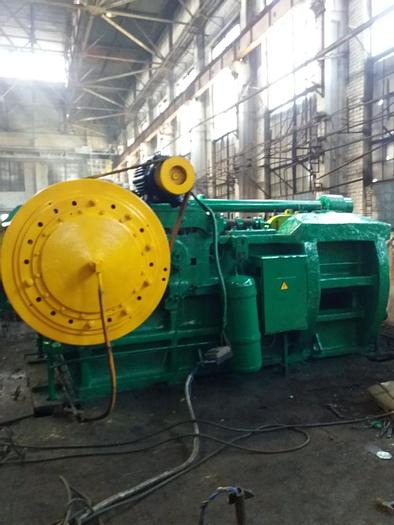

1977 STANKO B1138,630T Horizontal Forging Machines

- The largest diameter of the workpiece, mm 90 - The maximum diameter of the planted flange, mm 120 - Rated force of the landing slide, kN 6300 - The force perceived by the clamping slide with closed dies, kN 6300 - stroke of the landing slider, mm 350 - The stroke of the landing slide after closing the dies, mm 230 - The frequency of continuous idle slider per minute, not less than 42 - Power of the electric motor 45 - Dimensions, mm length 4835 width 3450 height 2880
