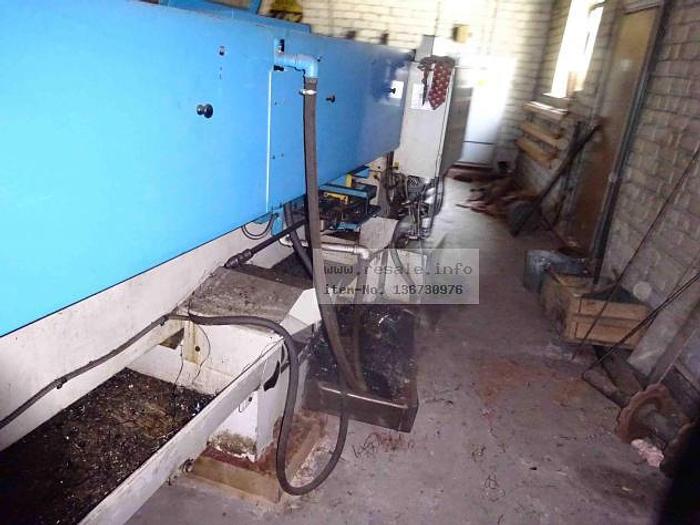

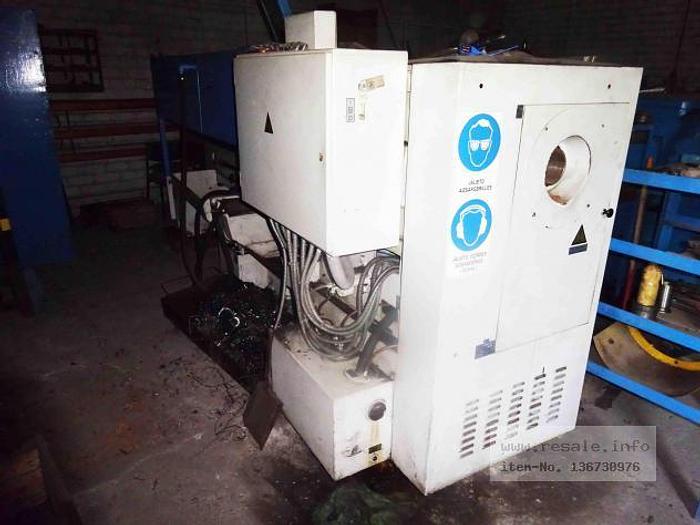

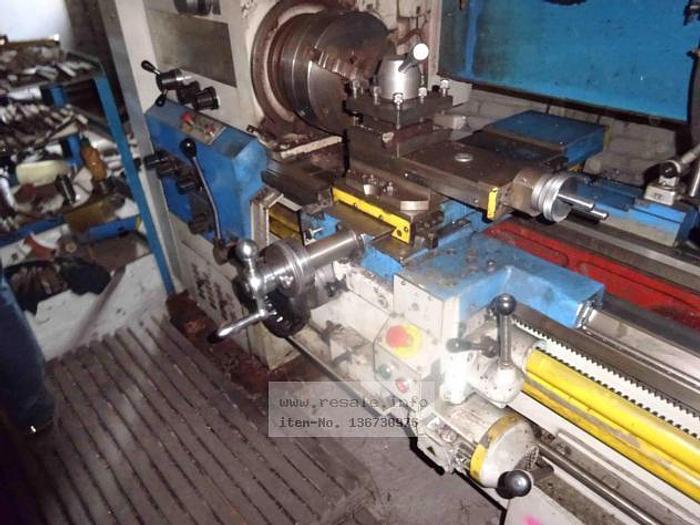

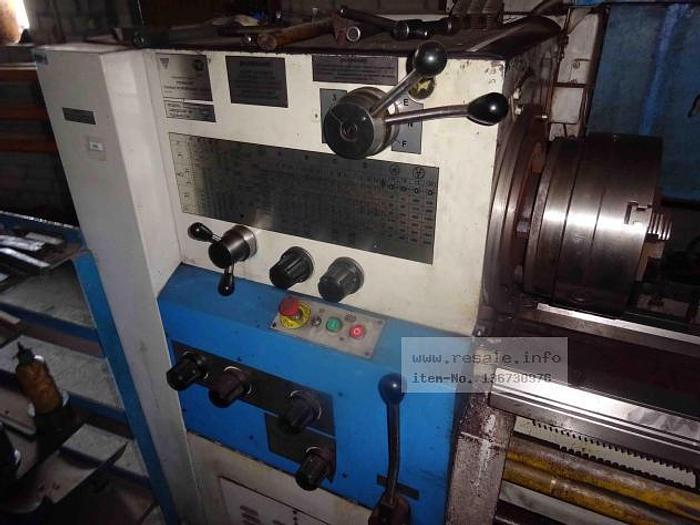

2004 Ryazan 16R25P-2 (500x2000) Screw-cutting lathe
orCall +44 20 3287 0537
Specifications
Manufacturer | Ryazan |
Model | 16R25P-2 (500x2000) |
Year | 2004 |
Stock Number | 136730976 |
Max. work piece diameter above the bed mm: | 500 |
Distance between centers mm: | 2000 |
Machine weight, kg | 2800 |
Description
Max diameter of the workpiece installed and processed, mm:
- above the bed 500
- over the caliper 250
- above the notch in the bed 630
The maximum length of the workpiece, mm 2000
The length of the notch in the frame from the end of the spindle
flange, mm 300 The height of the tool installed in the tool holder,
mm 25 The size of the spindle end of the headstock to DIN 11M
Internal cone in the spindle of the headstock spindle (metric) 100
The diameter of the cylindrical hole in the spindle, mm 95 The inner
cone in the spindle of the tailstock according to GOST 25557-82 (Morse) 5
The limits of the frequency of rotation of the spindle, rpm 16-2000
Limits of working feeds, mm / rev:
longitudinal 0.05-2.8
transverse 0,025-1,4
The limits of the steps of the cut threads:
metric, mm 0.5-112
inch, thread / inch 56-0.5
modular, module 0.5-112
pitchevy, pitch dia. 56-0.5
Accelerated movement of the caliper, mm / min:
longitudinal 2000
transverse 1500
The greatest torque on the spindle, kNm 1.0 Roughness of the processed
cylindrical surface of the sample-product, micron Ra 1.25
Roughness of the processed conical surface of the sample-product,micron Ra 2.5
The greatest angle of rotation of the tapered ruler (with a tapered ruler), degree 10
Main drive power, kW 11
Overall dimensions (together with electrical equipment), mm: length 2825 width 1345 height 1600
Weight, kg 2800;
