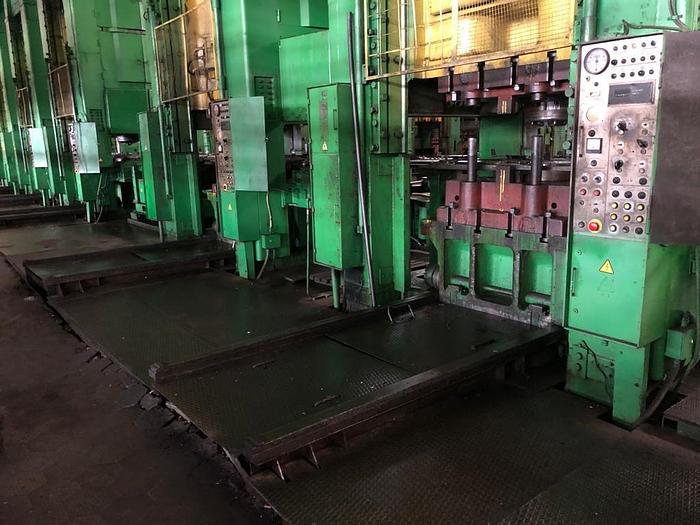

1985 TMP KV2542,1600T Closed single-crank trimming press
Specifications
Manufacturer | TMP |
Model | KV2542,1600T |
Year | 1985 |
Serial Number | 8 |
Stock Number | 163393951 |
Maximum force | 1600 tons |
Slider stroke length | 400 mm |
Number of single turn-on | 12 |
The closed height | 870 mm |
Press weight | 147 tons |
Description
Maximum force: 1600 tons
Slider stroke length: 400 mm
Unattainable-course: 12 mm
Number of courses of a slider per minute: 16
Number of single turn-on: 12
The closed height: 870 mm
Adjustment: 220 mm
Under-forginig plate:
-From left to right: 1600 mm
-From front to rear: 1600 mm
-Thickness: 650 mm
Slider overall dimensions: 1600x1600 mm
Aperture in a table: 1000x1000 mm
window dimensions in cheeks: 1650x1650 mm
Course of a rigid pusher in a slider: 100 mm
Force of a rigid pusher in a slider ton-force: 80
Main electric motor power: 110 kW
Course of pneumatic pillow: 160 mm
Force of pushing out of a pneumatic pillow ton-force: 71
Hydropneumatic pillow:
-Working course: 250 mm
-Force of pushing out ton-force: 25
-Force of a clip ton-force: 250
Press overall dimensions: 4670x4670x8110 mm
Press weight: 147 tons
