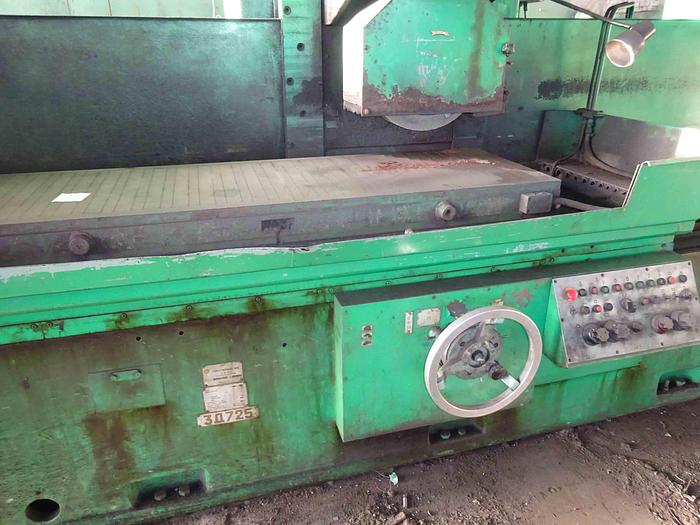

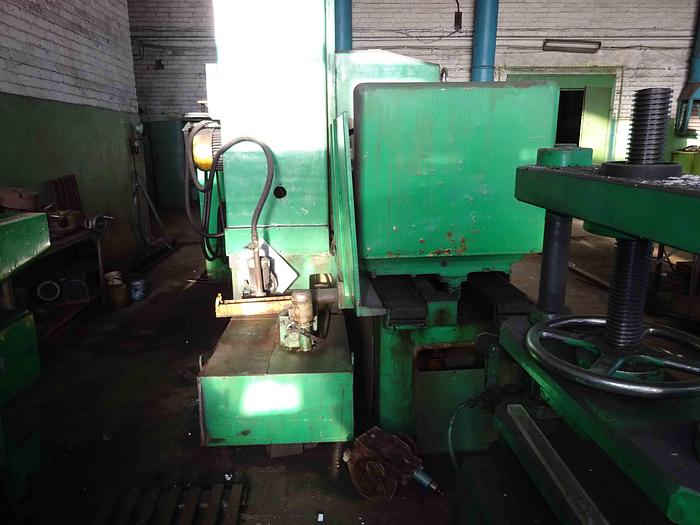

1990 STANKO 3D725 ( 2000 x 630 ) Surface grinding machine

Max. workpiece dimensions, mm 2000 x 630 x 630 Longitudinal movement speed of table, m/min 3...30 Longitudinal table movement, mm 300...2100 Diameter of grinding wheel, mm 500 Distance between spindle axis and table, mm 235...880 Max. cross movement of grinding head, mm 660 Max. vertical movement of grinding head, mm 645 Vertical movement per limb of grinding head, mm 0,004 Automatic vertical feed of grinding head, mm 0,004...0,1 Max. spindle rotation speed, rpm 1500 Max. processed workpiece weight, kg 650 Main motor power, kW 30 Total power required, kW 44,13 Machine dimensions, mm 5950 x 2860 x 2860 Machine weight, kg 15250
