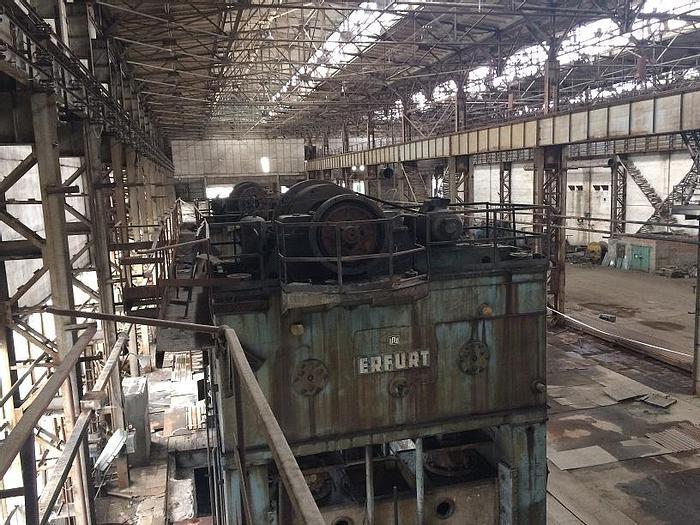

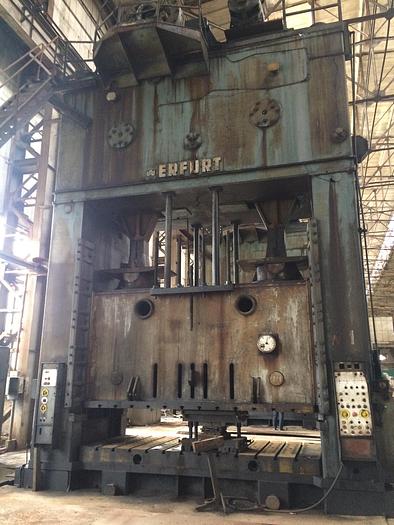

1985 ERFURT PKZZ I 1250 Straight side sheet stamping press

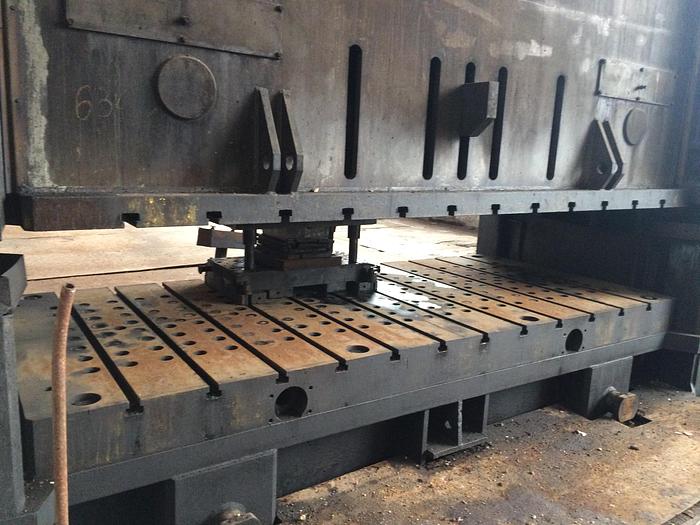

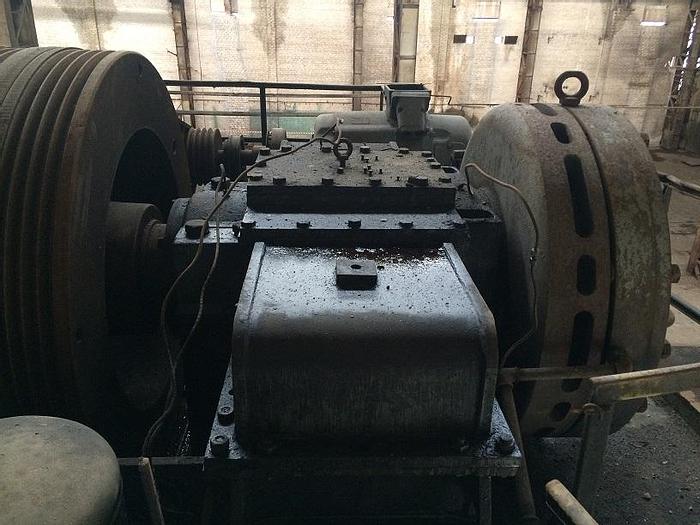

Max. slider force at the distance of 12,5 mm in the lower dead point: 1250 ton Slider force at the distance of 250 mm in the lower dead point: 350 ton Number of single strokes per minute: 11 Slider stroke: 630 mm Slider adjustment: 630 mm The closed height: 1165 mm Table pillow: -Max. stroke: 250 mm -Stroke adjustment: 250 mm -Max. holding force: 250 ton -Max. ejection force: 40 ton Table dimensions: 4000x1800 mm Bolster dimensions: 3950x1800 mm Table gap: 3750x1300 mm Main motor power: 132 kW Stay spacing: 4000 mm Press weight: 215000 kg
