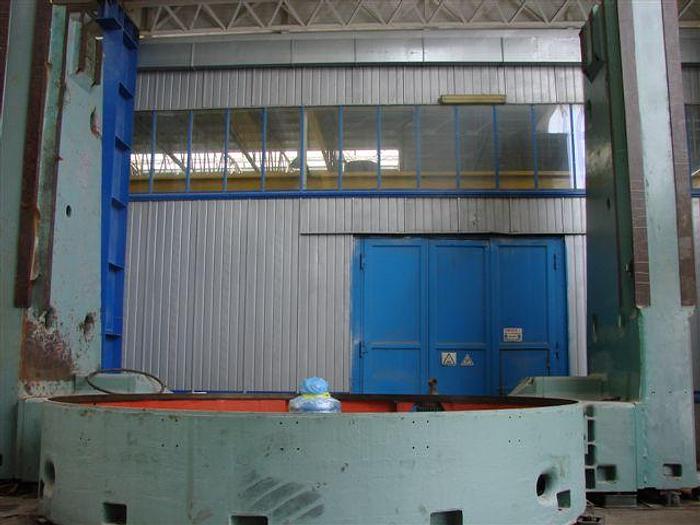

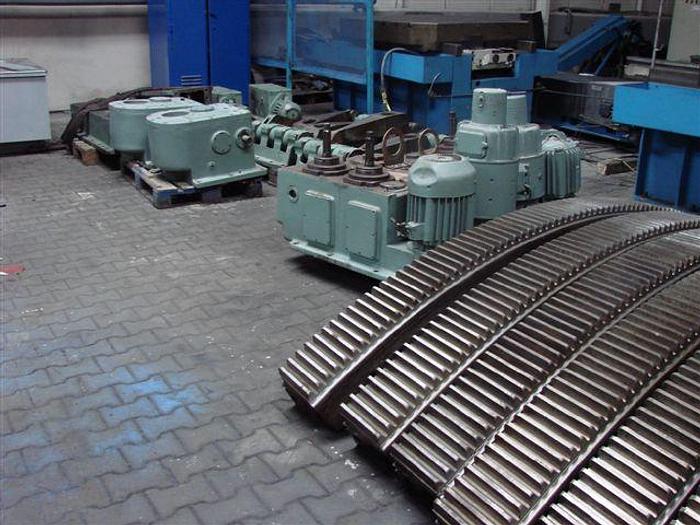

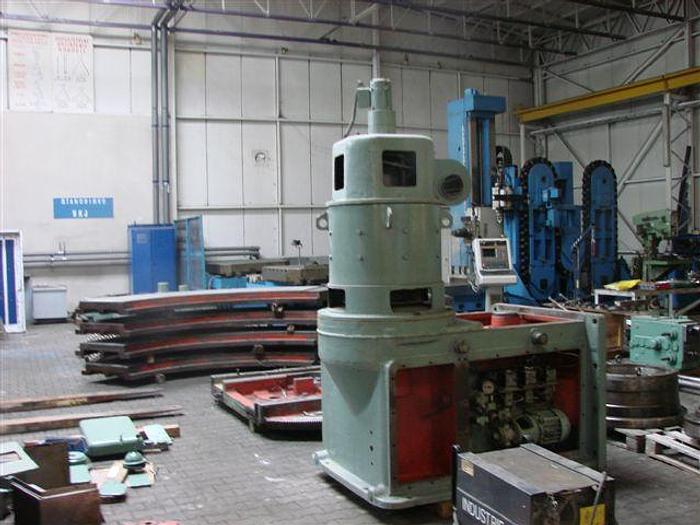

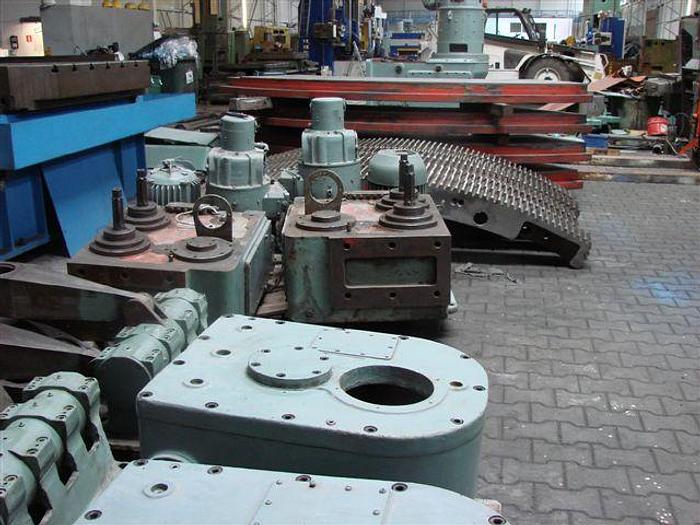

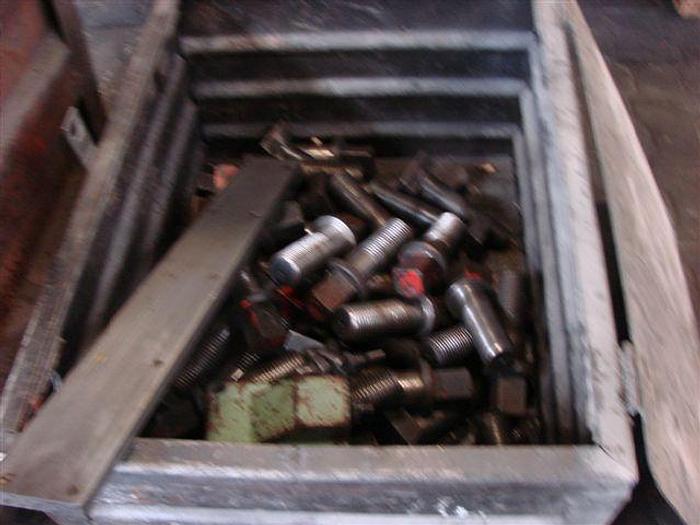

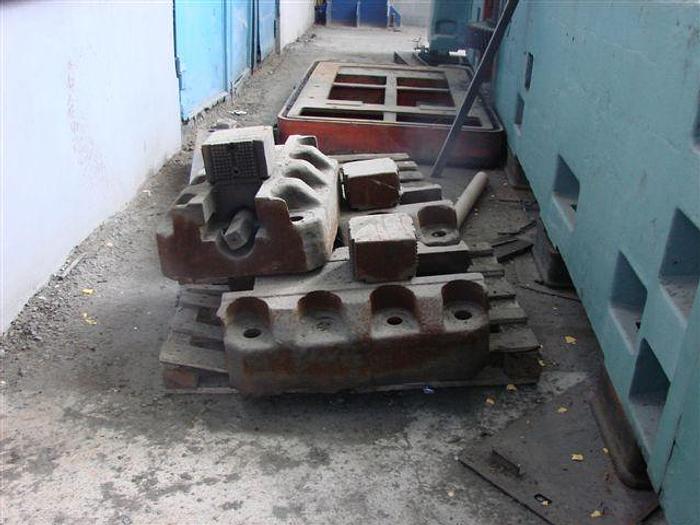

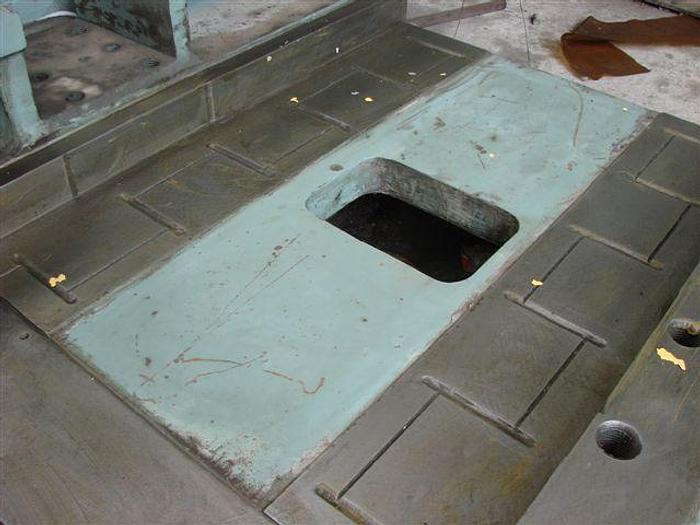

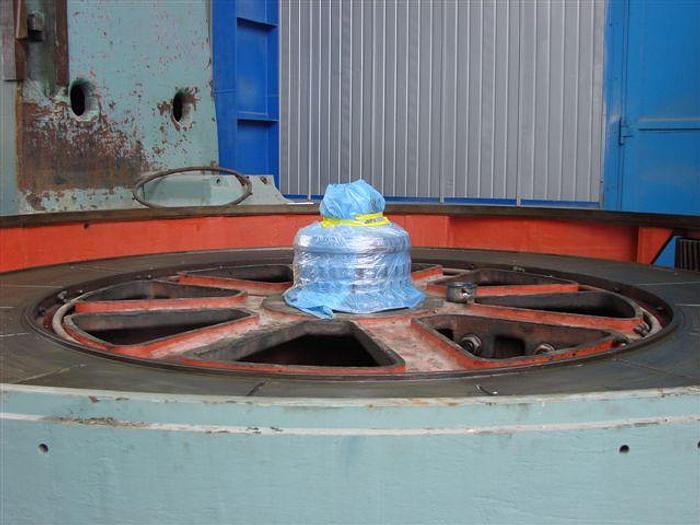

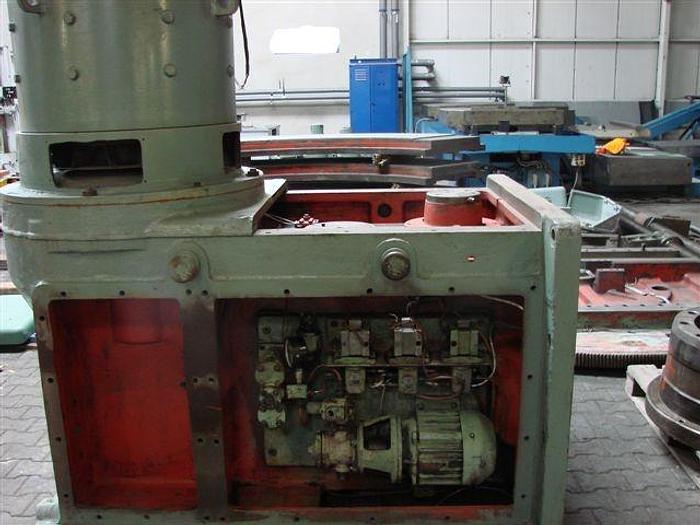

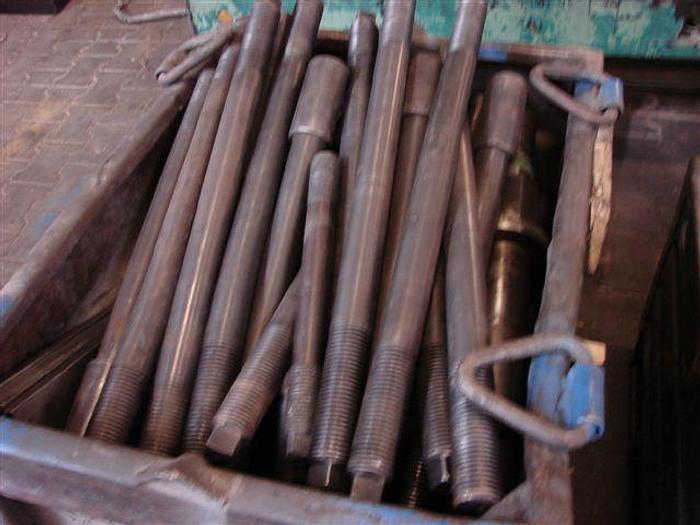

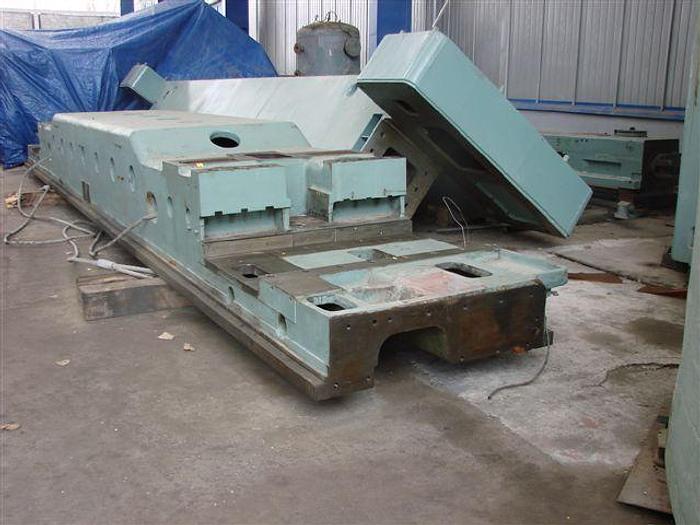

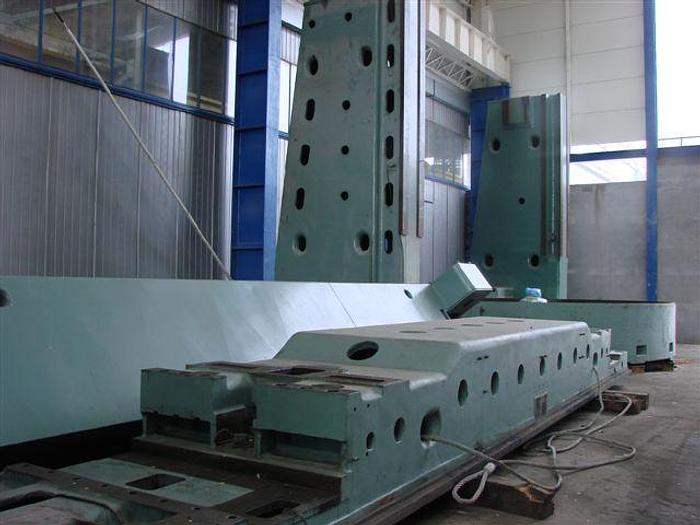

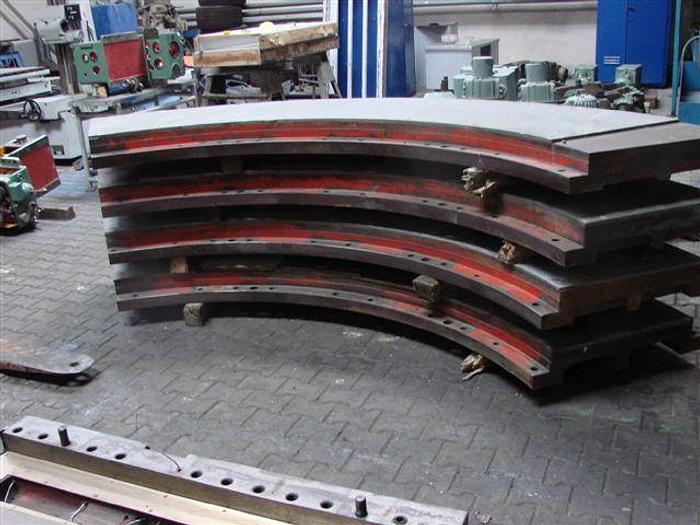

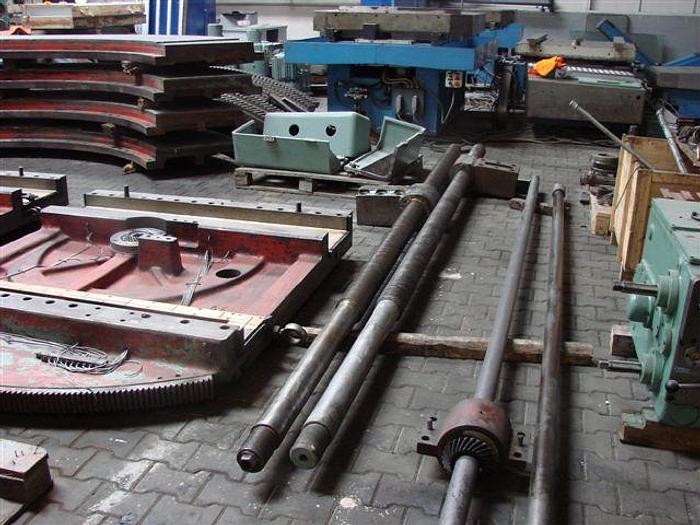

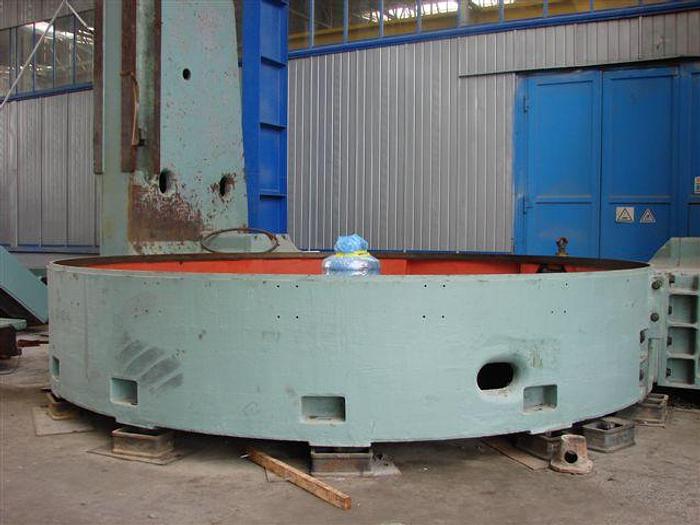

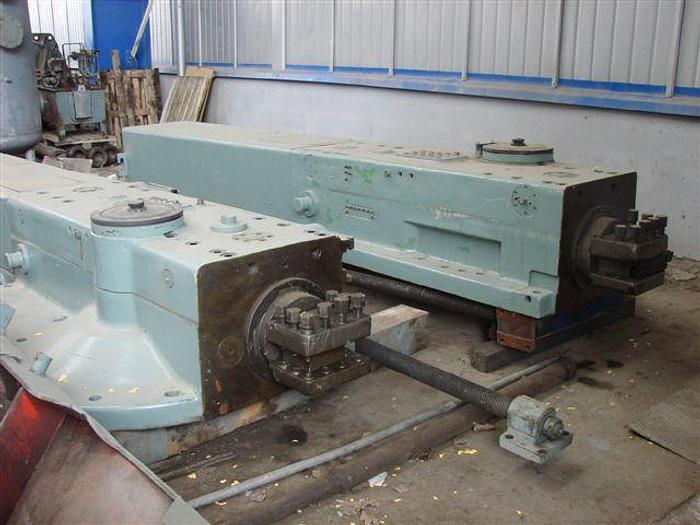

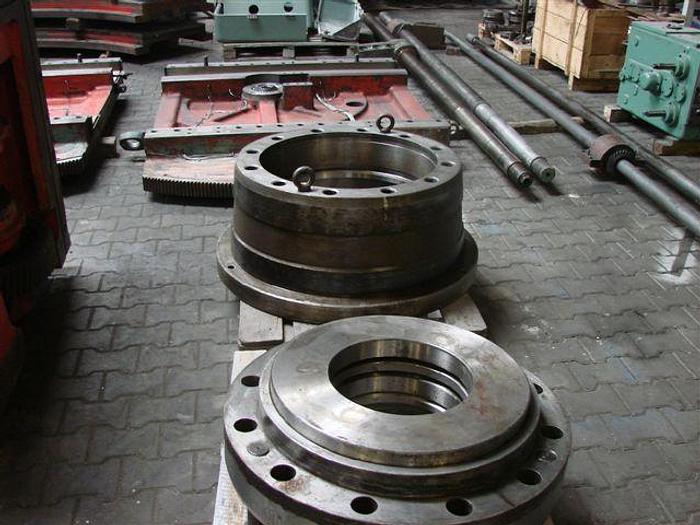

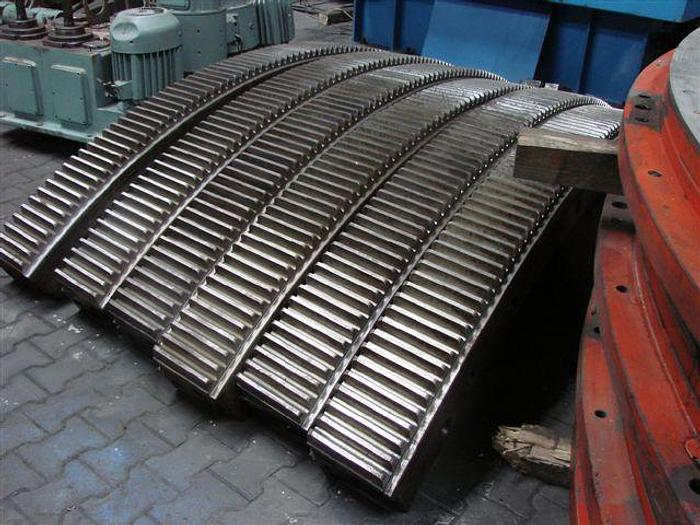

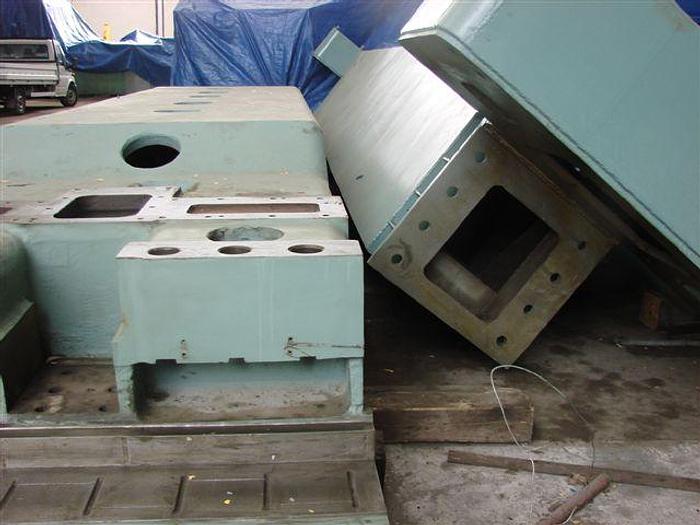

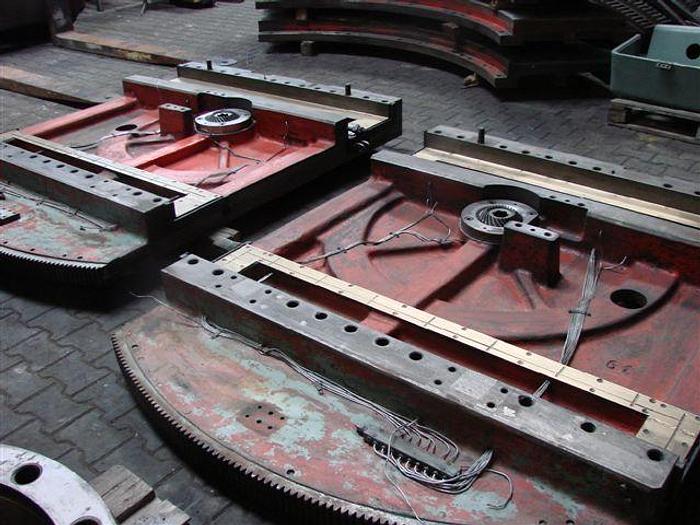

1978 KOLOMNA 1580L (8000x3200) Vertical turning lathe

Chuck diameter, mm 7100

Max. work piece diameter, mm 8000

Max. work piece height, mm 3200

Max. work piece weight, kg 125000

Chuck speed, rpm 0,22...20,1

Max. ram movement of vertical support, mm 2000

Max. movement of vertical, mm 4275

Support feed range, mm/min 0,0352...285

Support rapid feed, mm/min 2500

Supports possible work angle, E431468 deg. -15...+40

Jaws, units 4

Machine overall dimensions, mm 8615 x 17600 x 9800

Machine weight, kg app. 247300
