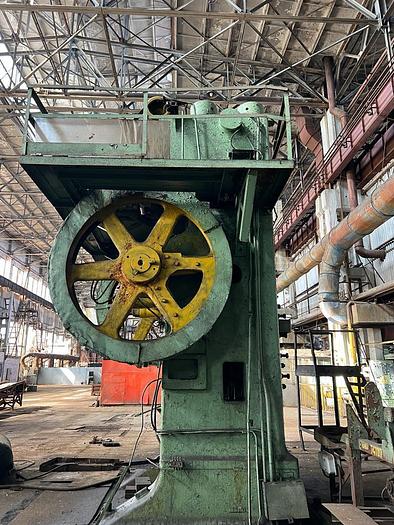

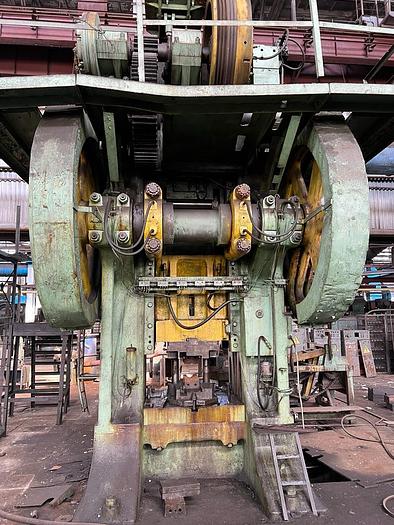

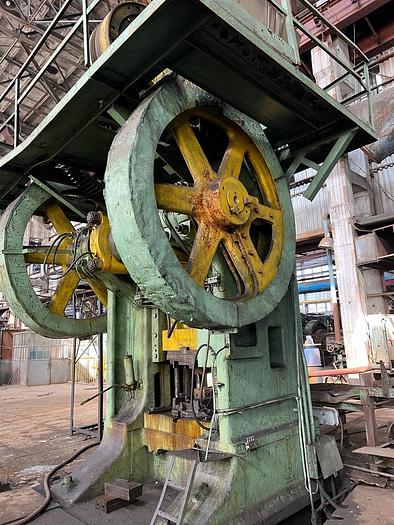

1970 BARNAUL K849C,2000T Knuckle-Joint Press

Press force at the end of stroke: 2000 t

Slide stroke: 200 mm

Number of slide strokes per minute: 17

Adjustment of interstamping space: 15 mm

Max. distance between table and slide in its lower position: 830 mm

Distance between guides in daylight: 1040 mm

Bolster plate dimensions:

-From front - to back: 1300 mm

-From right - to left: 1270 mm

Size of the opening in the table - diameter: 130 mm

Slide dimensions:

-From front - to back: 800 mm

-From right - to left: 1250 mm

Main electric motor:

-Type: АС 82-4

-Power: 55 kW

-RPM: 1380

Electric motor of adjustment:

-Type: АО 52-6

-Power: 4,5 kW

-RPM: 950

Press weight: 75107 kg
