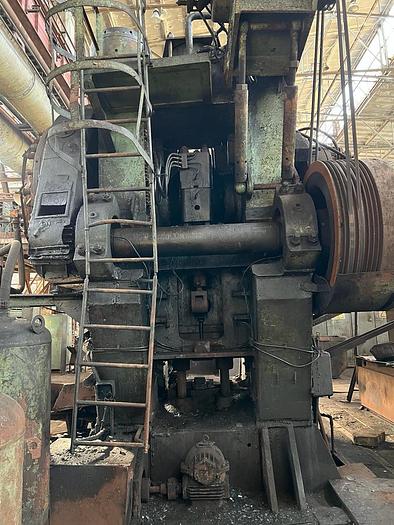

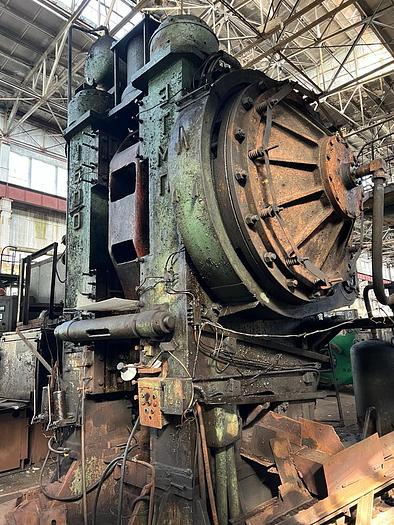

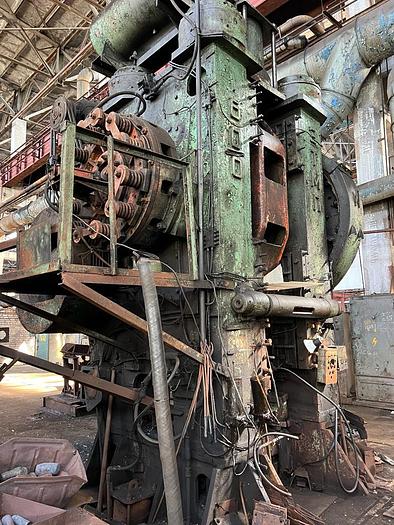

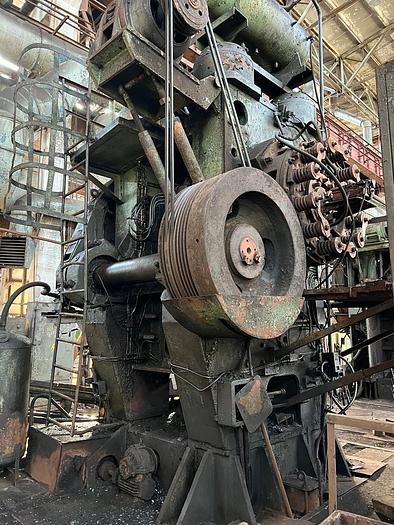

1975 TMP VORONEZH K8542 1600t MECHANICAL HOT STAMPING PRESS
orCall +44 20 3287 0537
Specifications
| Manufacturer | TMP VORONEZH |
| Model | K8542 1600t |
| Year | 1975 |
| Stock Number | 162779153 |
| Back shaft | YES |
| Capacity | 1600 tons |
| Slide stroke | 300 mm |
| Table overall dimensions | 940x1200 mm |
| Press weight | 120 tons |
Description
INTERMEDIATE SHAFT YES
CONNECTING ROD N°1
Capacity: 1600 tons Slide stroke: 300 mm Slide stroke length at maximum force: 0,16 mm Distance adjustment between tableand slider: 10 mm Slide stroke number in 1 min: 75 Length of a rod: 920 mm The closed height: 660 mm Table overall dimensions: 940x1200 mm Table height above floor level: 450 mm Slide overall dimensions: 860x910 mm The size of lateral windows: -Height: 560 mm -Width: 600 mm Main motor: 110 kW Press overall dimensions: -Length: 5060 mm -Width: 3940 mm -Height above floor level: 5125 mm Press weight: 120 tons
