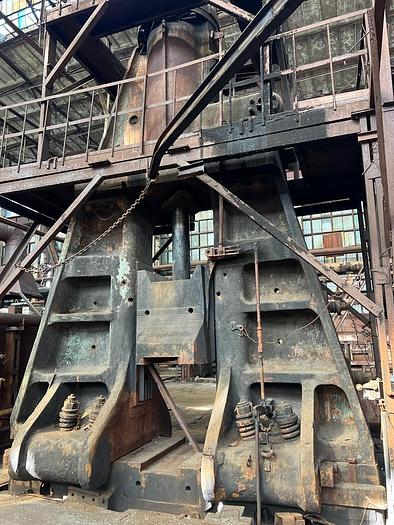

1975 Kramatorsk 18KP 10t air steam die forging hammer

Capacity :10 tons,

Weight of falling part, nominal mass of drop parts without upper instr.:9 tons,

Effective working kinetic energy after blow :25000 kg mtr.,

Max. working ram stroke :1400 mm,

Max no of blows : 30/min ,

Distance between slides : 1000 mm,

Shut height : 775 mm ,

Ram size front to back :1200 mm,

Bolster size front to back :1200 mm,

Air pressure : 7-9 MPA ,

Height of instruments : 450 min.,

Die-holder front to back dimensions:1400 mm,

Height above floor level: 7270 mm,

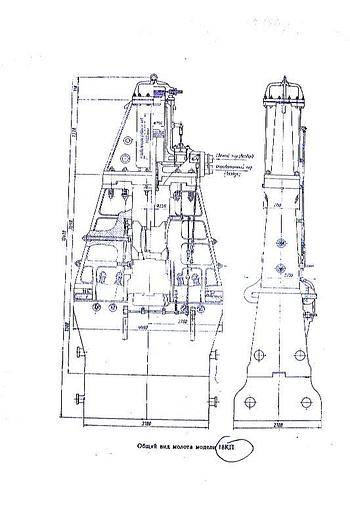

Hammer dimensions : 4400x10420x2700 mm,

Weight (less anvil block): 73.5 ton,

Weight of anvil block : 203.8 tons.
