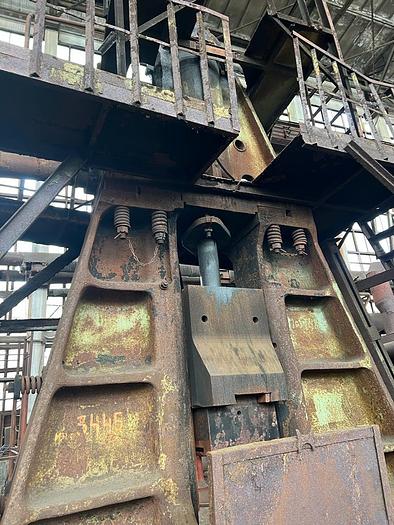

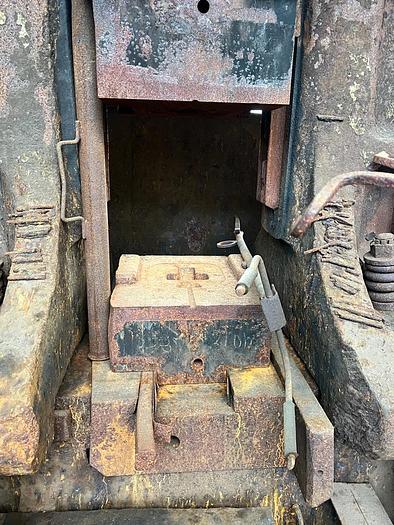

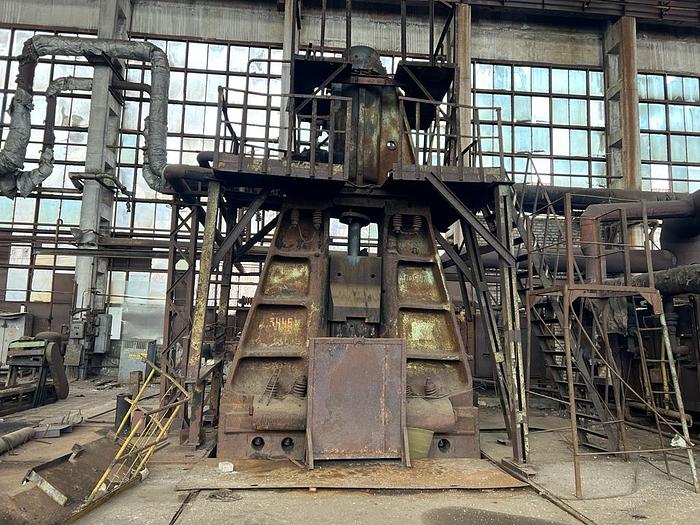

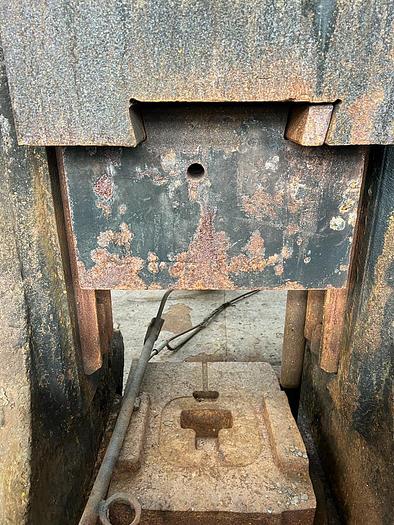

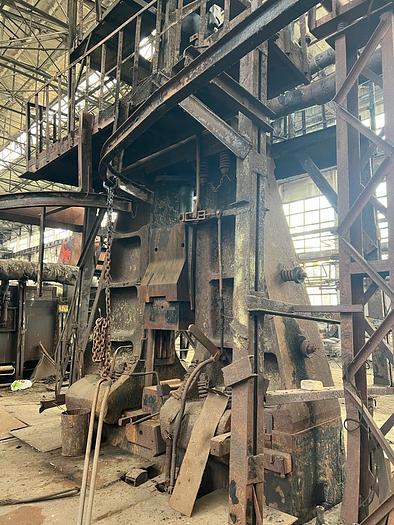

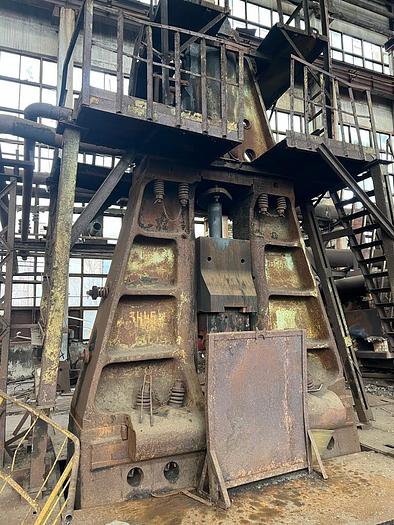

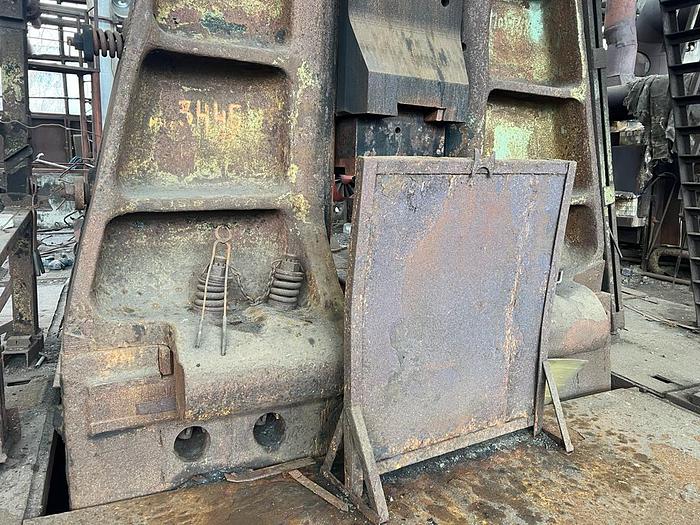

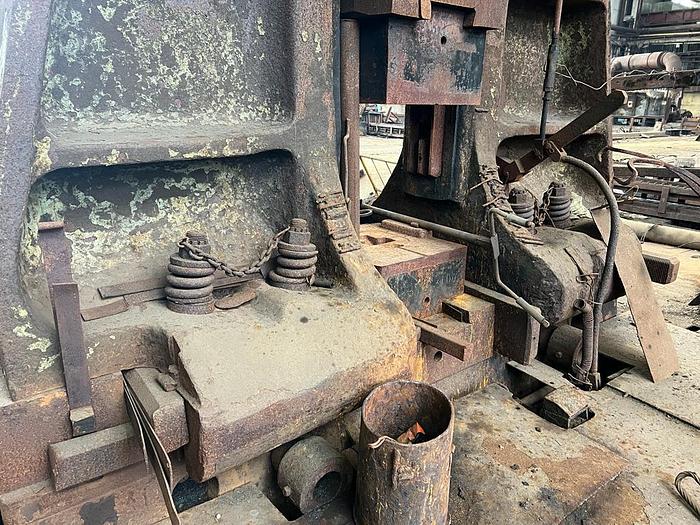

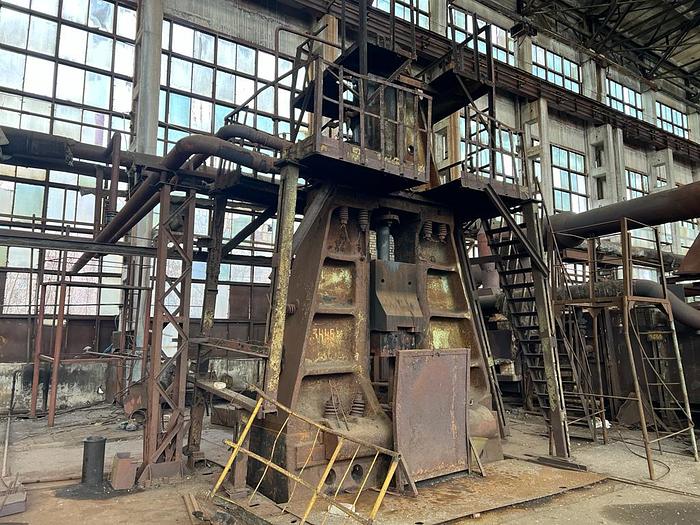

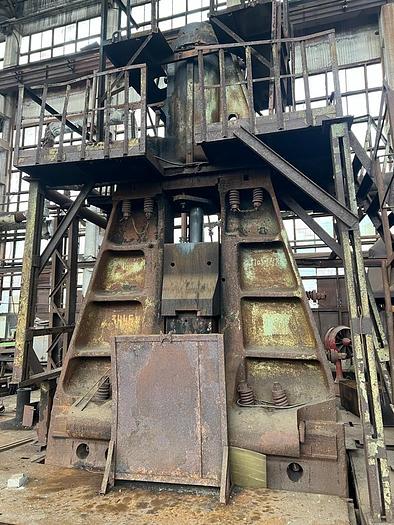

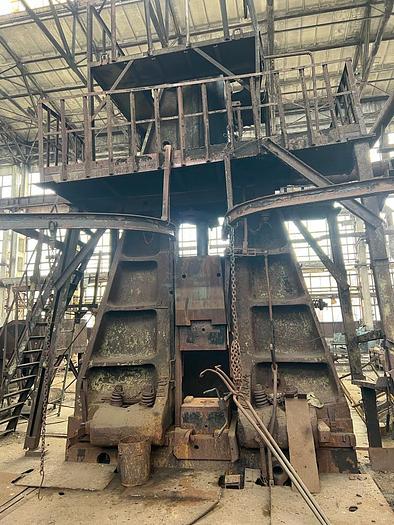

1975 Kramatorsk 17KP (MFP 5000KG) air steam die forging hammer

Nominal mass of falling parts, taking into account the mass of the upper stamp (500 kg.), Kg. 5000

Actual mass of falling parts without top stamp, kg. 5030

Effective kinetic energy of falling parts at full successive impacts, kgc m 12500

The greatest working stroke of a woman, mm. 1300

The smallest height of dies without shanks, mm. 400

Distance between guides in the light, mm. 800

The length of the woman in the direction perpendicular to the front of the hammer, mm. 1180

Steam (air) pressure before entering the cylinder, atm. 7-9

Nominal mass of the upper die, kg 500

The largest mass of the upper die, kg. 1500

The highest permissible steam temperature, ⁰C 200

weight 145-148ton,

weight of anvil block 75+22 ton.
