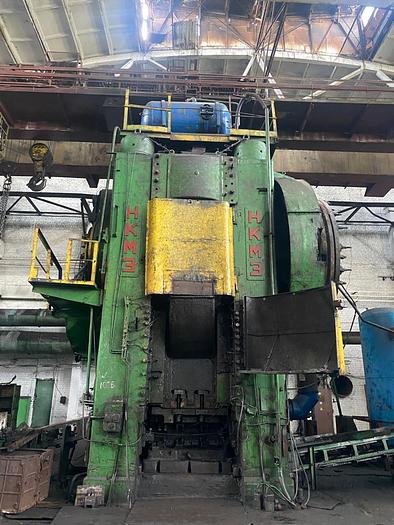

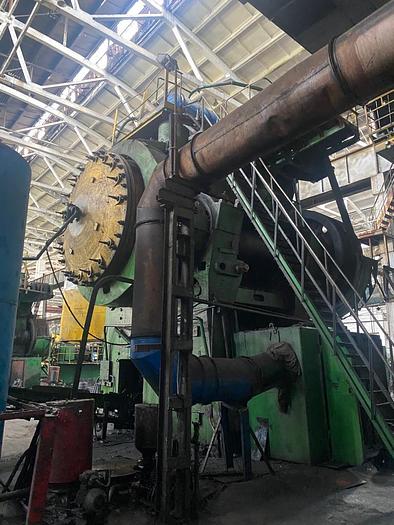

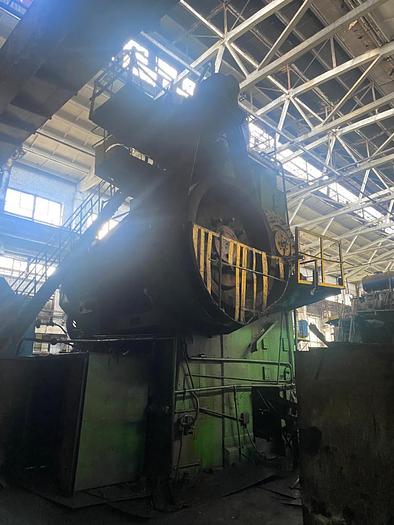

1971 NKMZ 6300TN ( K8548) Hot forging press

Nominal force: 6300 ton Number of continuous strokes per minute: 40 Ram stroke: 460 mm Distance between ram and table (table is in upper position): 1150 mm Table adjustment: 15 mm Distance between press columns: 1950 mm Ram dimensions: -front to back: 1680 mm; -left to right: 1680 mm Table dimensions: -front to back: 1950 mm; -left to right: 1920 mm Mechanical upper ejector: -max stroke: 100 mm; -number of positions: 1 -steps of stroke adjustment: 25-30-75 mm -force: 30 ton Pneumatic lower ejector: -max stroke: 300 mm -stepless stroke adjustment: 15-300 mm -number of positions: 3; -force: 65 ton Side windows dimensions: -width: 1100 mm; -height: 1280 mm Main motor: 400/590 kW/rpm Press layout dimensions: 6300x8965 mm Total height: 11125 mm Height above floor level: 9150 mm Total weight: 626100 kg
