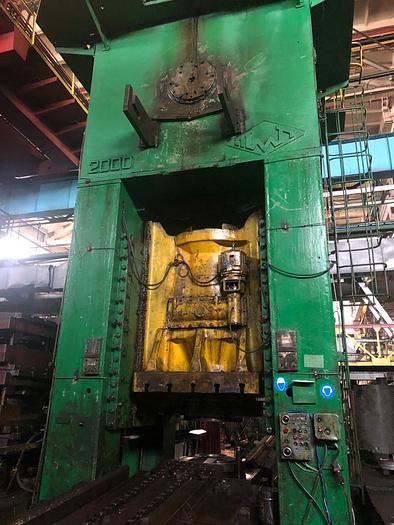

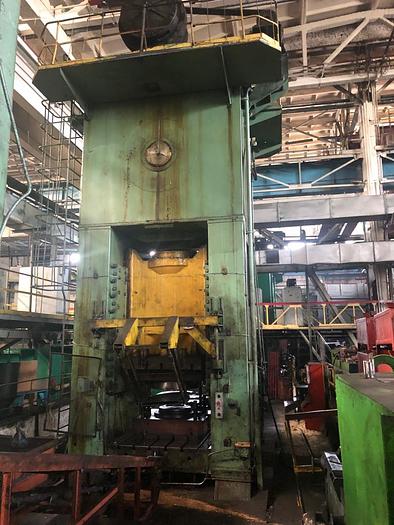

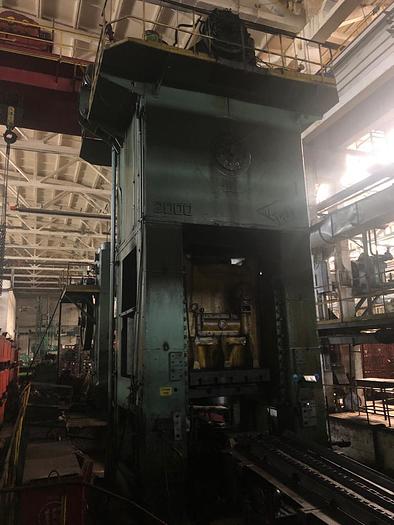

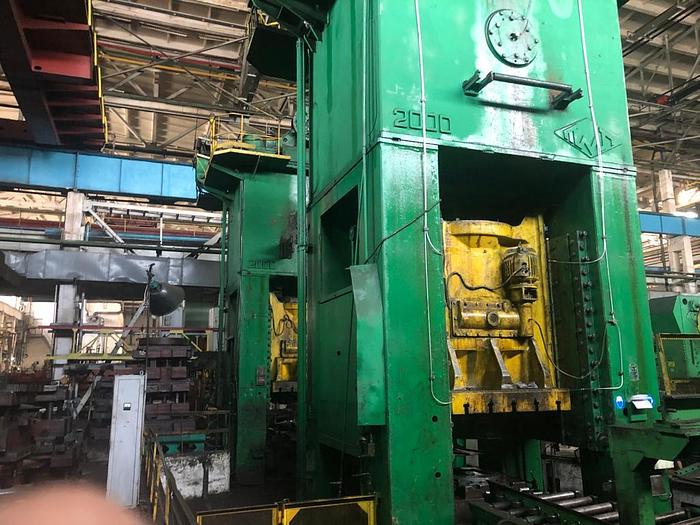

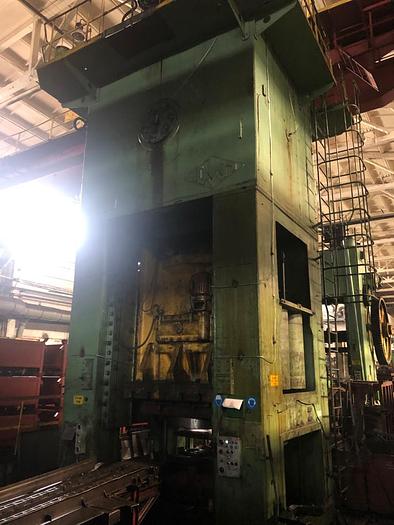

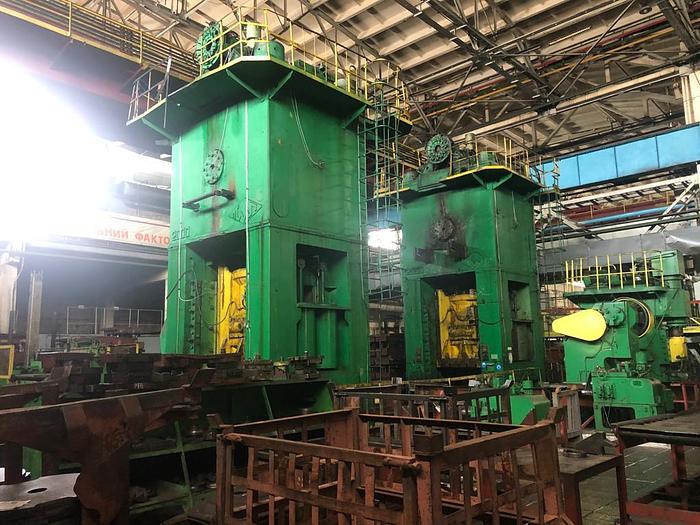

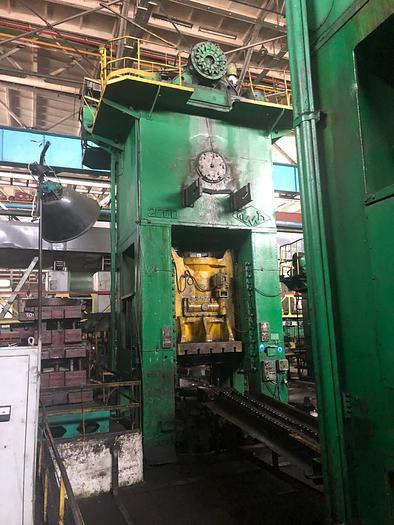

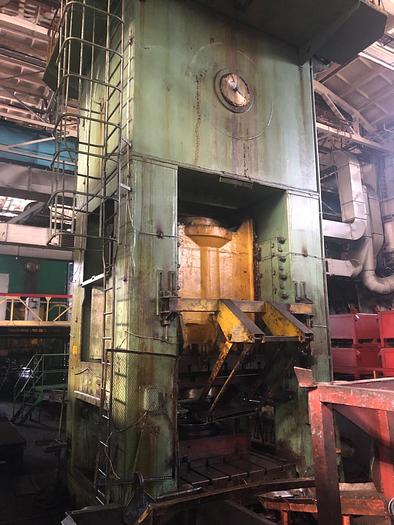

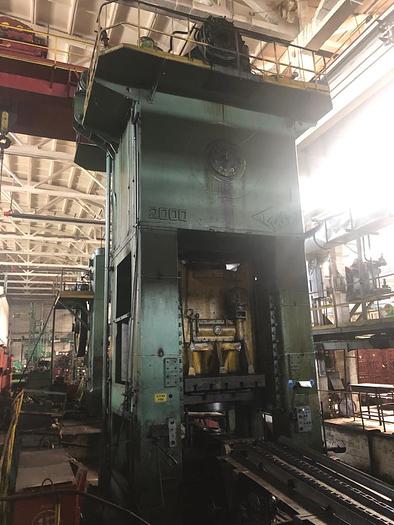

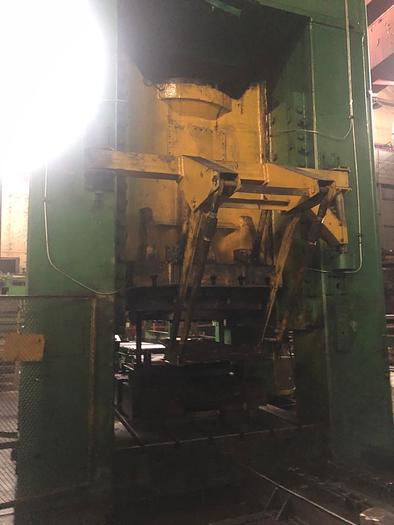

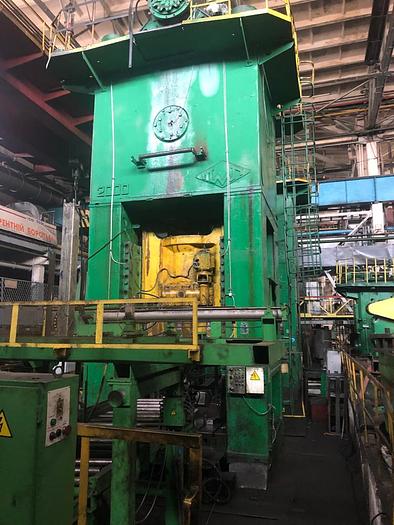

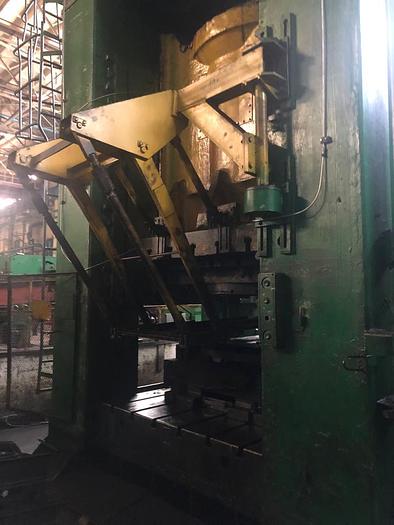

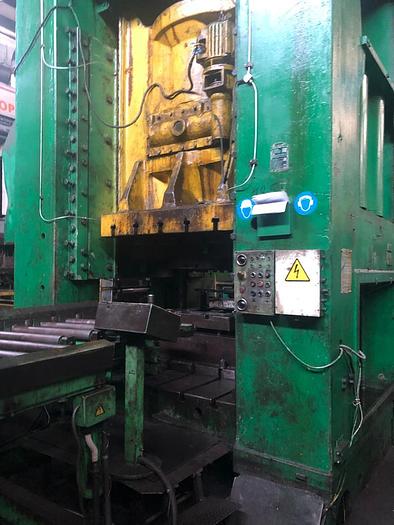

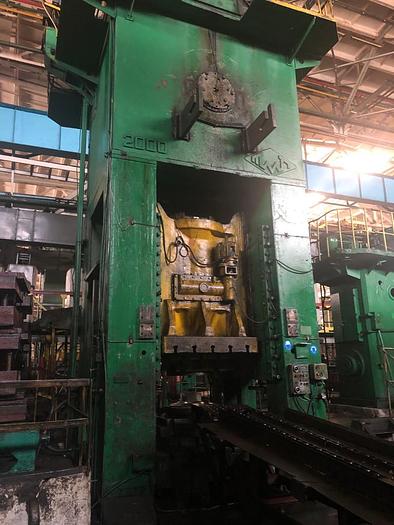

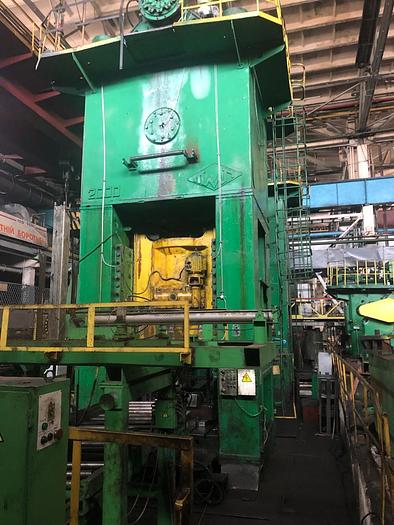

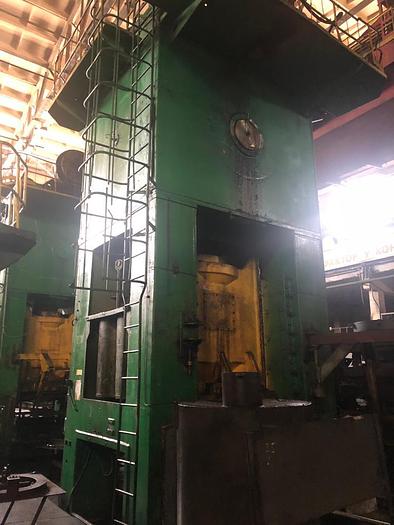

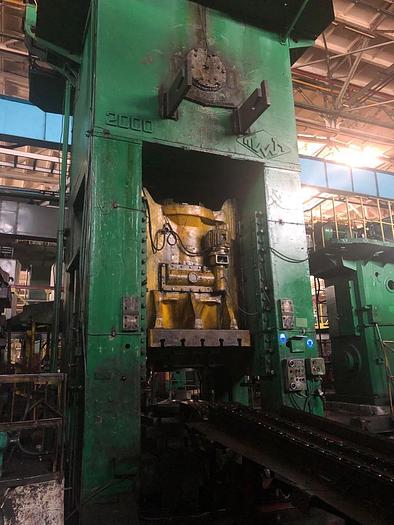

1967 TMP VORONEZH K2543,2000T Closed single-crank press line for deep drawing

Maximum force: 2000 tons

Slider stroke length: 500 mm

Number of courses of a slider per minute: 6

Number of single turn-on: 3.6

The closed height: 1160 mm

Adjustment: 220 mm

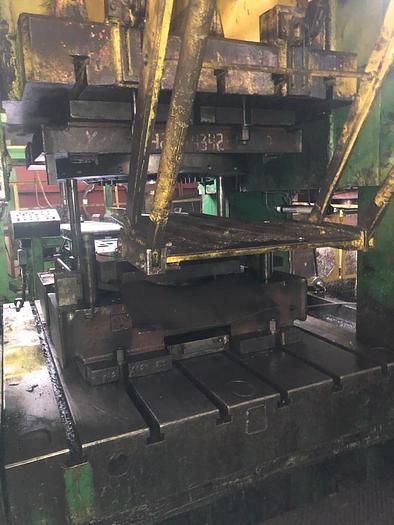

Table size:

-From left to right: 2000 mm

-From front to rear: 2500 mm

-Thickness die plate: 300 mm

Slider overall dimensions: 1600x2000 mm

Aperture in a table: 1250x1250 mm

window dimensions in cheeks: 1600x1000 mm

Maximum Die Weight: 6000kg

Hydropneumatic cushion in the table:

·working stroke 250mm

·maximum clamping force 350 ton-force

·maximum push force 20 ton-force

Main electric motor power: 125 kW

Press overall dimensions: 5390x4870mmx8860

Press weight: 228.990 tons
