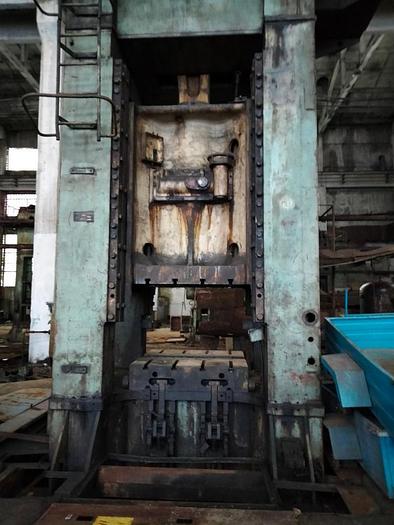

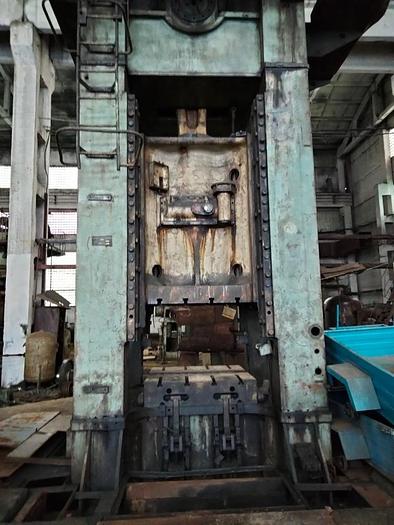

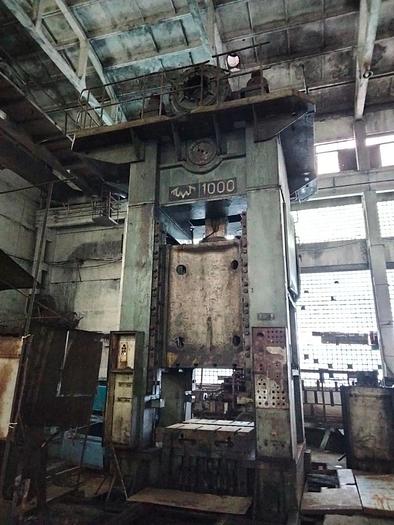

1993 TMP VORONEZH KG2540A,1000TN Closed single-crank trimming press

Capacity, ton 1000

Slider stroke, mm 400

Unattainable stroke, mm 12

Slider strokes, spm 20

Shut height, mm 730

Distance adjustment between table and slider, mm 200

Slider size, mm 1200 x 1200

Table size, mm 1250 x 1250

Table gap size, mm 800 x 800

Bolster plate thickness, mm 260

Pneumatic cushion capacity (eject), ton 40

Pneumatic cushion stroke, mm 160

Pneumatic cushion load, kg 4500

Main power drive, kW 75

Voltage, V 340

Machine dimensions, mm 4310 x 3820 x 6790

Machine weight, kg 77100
