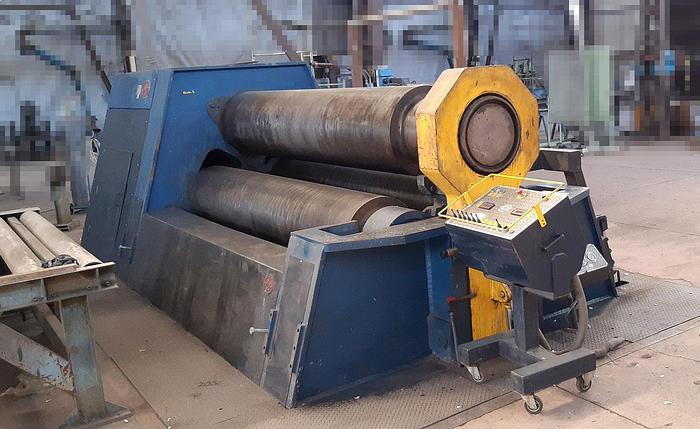

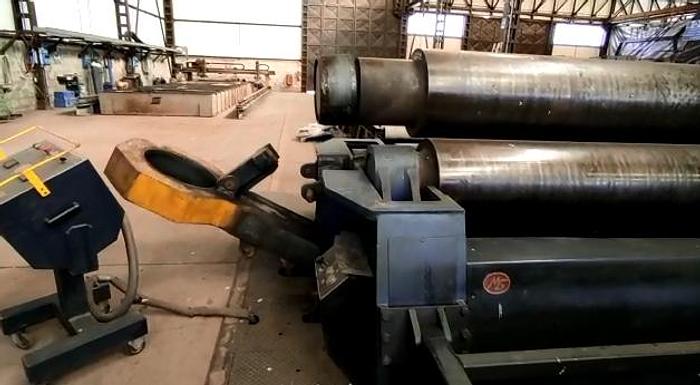

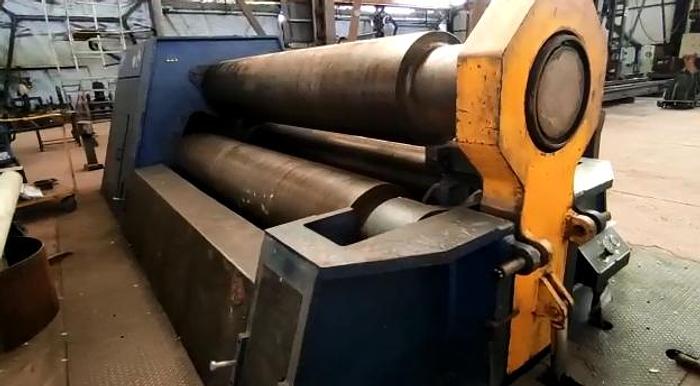

2001 MG 360I (3000 x 60) Plate Bending Machine - 3 Rolls

orCall +44 20 3287 0537

Specifications

ManufacturerMG
Model360I (3000 x 60)
Year2001
Stock Number160389618
Weight, t48

Description

-Plate width 3000 mm

 -Capacity rolling plate thickness 60 mm

 -Pre-pinch plate thickness 50 mm

 -Minimum rolling dia. 580 mm with medium thickness.


Machine configuration and accessories installed:

-useful surface length on the rolls 3100 mm

-upper roll size 620 mm

 -lower rolls size 570 mm

 -Digital position readouts.

-Hardening treatment  of the 3 rolls.

-Back gauge for plate alignment  with hydraulic swing-down.

-3 rolls driven hydraulic motorized with independent axial gear box on each roll.

 -Conical plate bending with angle-set lower rolls and hardened contrast pad.

 General construction details:

-Parallelism between top and bottom rollers by means of massive torsion bar.

 -Rolls installed on barrel bearings heavy duty double crown self aligning.

 -Greasing free technology with sealed bearings and self lubricated bushings.

 -Overload safety hydraulic protection of the rolls

 -Synchronized hydraulic rotation of the rolls.

-Hydraulic power unit self enclosed into the machine.

-High pressure hydraulic power pack with multi-pumps oil feed.

 -Speed of rolling variable slow/fast

-Centralized control panel electric on wheels with joysticks and digital readouts

-Emergency stop push button and safety trip-off cable all around the working area

 -Service manuals


DIMENSION 2920X6450 MM  - WEIGHT 48 TON  ( the 3 rollers will be disassembled from the mainframe for the shipment )
