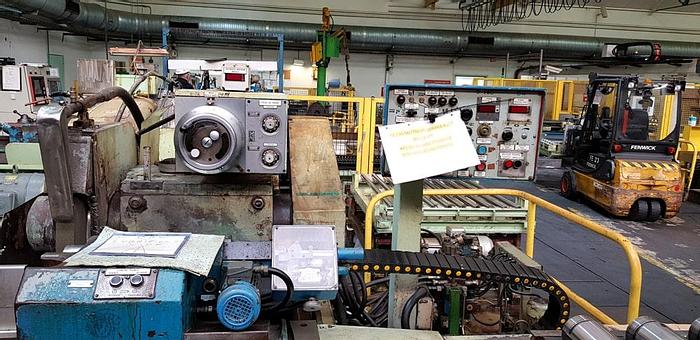

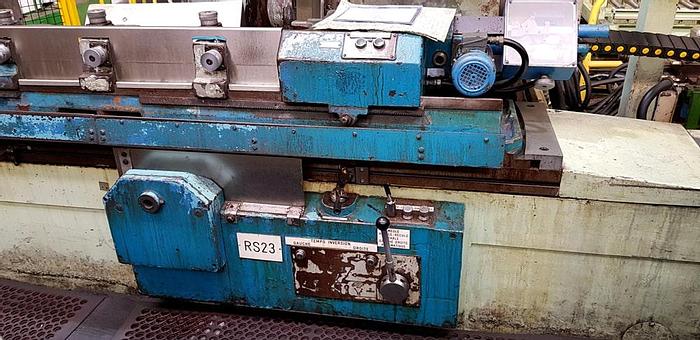

1985 Stanko 3M173 Cylindrical grinding machine

Dimensions of the workpiece to be installed, max, mm:

diameter/length 400/1400

Grinding dimensions, max, mm:

diameter/length 400/1260

Weight of the workpiece to be installed, max, kg 1000-15

Table travel length, max, mm 1400

Center height above table, mm 210

Accuracy class according to GOST 8 P

Cone in the spindle of the front and tailstock quills according to GOST 25557 Morse 6

The end of the grinding spindle according to GOST 2323 (taper 1:5), mm:

nominal diameter 100h11

diameter of bearing journals 110f7

Grinding wheel dimensions, max, mm:

outer/inner diameter 750/305

height 80; 100*

Spindle speed of the grinding headstock, min-1 1270

Workpiece rotation frequency (adjustable steplessly), min-1:

the largest 180; 360*

the smallest 20; 40*

Circumferential speed of the grinding wheel, m/s 35*; fifty

Upper table rotation angle, max, degree:

· per hour. arrow/anti-hour. arrows 2/6

Total power of electric motors, kW 26.19; 23.98*

Power supply:

Type of current AC 3-phase

Voltage, V 380; 220*; 400*; 415*; 440*

Current frequency, Hz 50; 60*

Overall dimensions with separately located equipment, mm:

length 5760

width 3690

height 2135

Net weight, kg 10420
