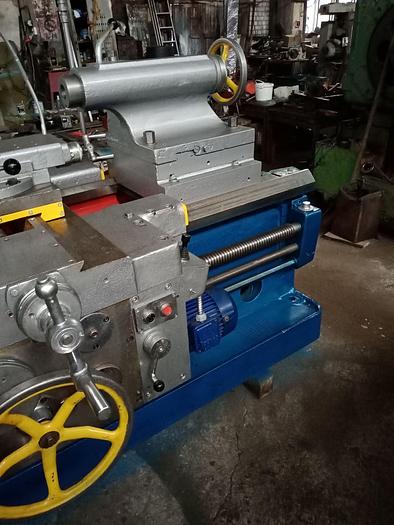

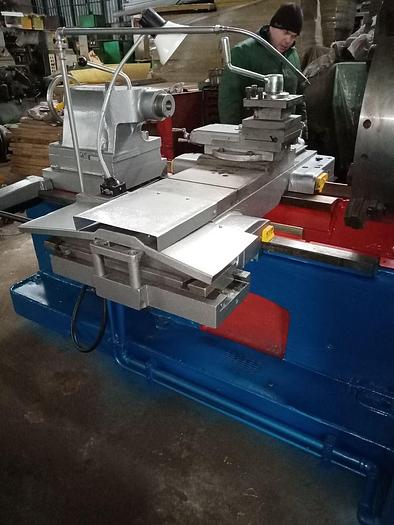

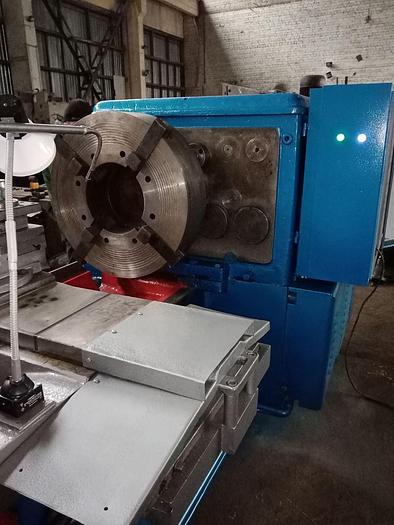

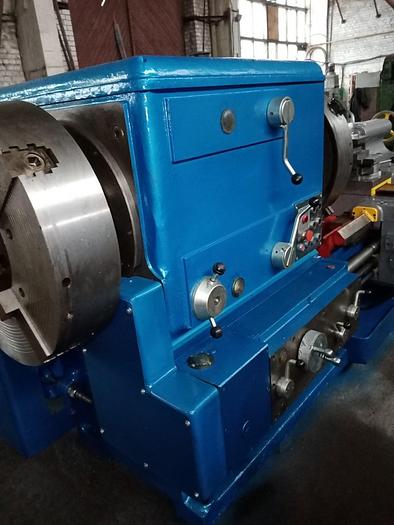

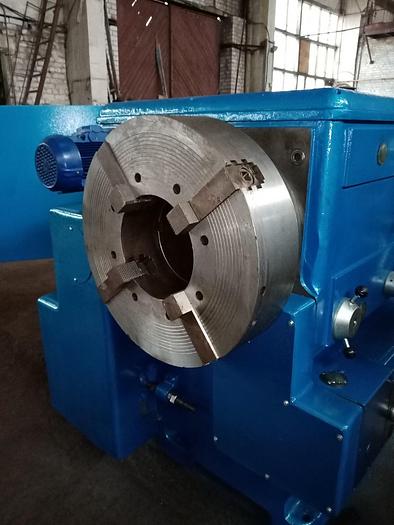

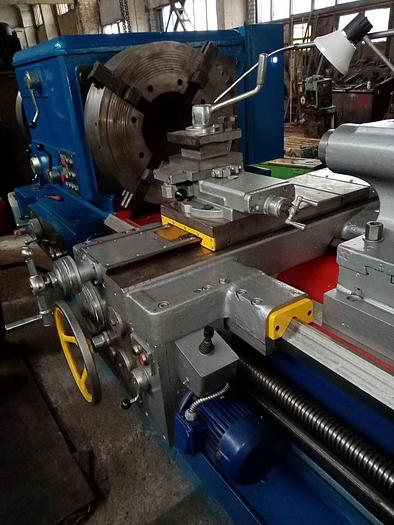

1996 Ryazan 1N983 Pipe-threading lathe
Specifications
| Manufacturer | Ryazan |
| Model | 1N983 |
| Year | 1996 |
| Stock Number | 158851336 |
| Diameter of spindle hole | 300 mm |

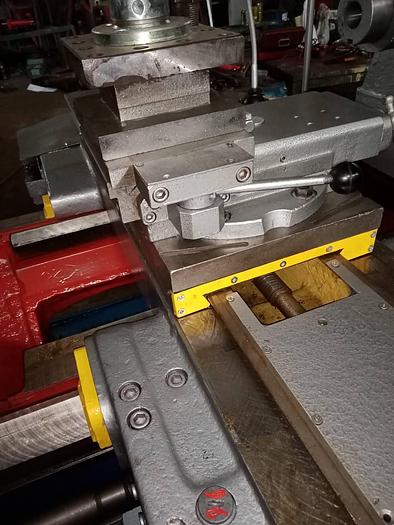

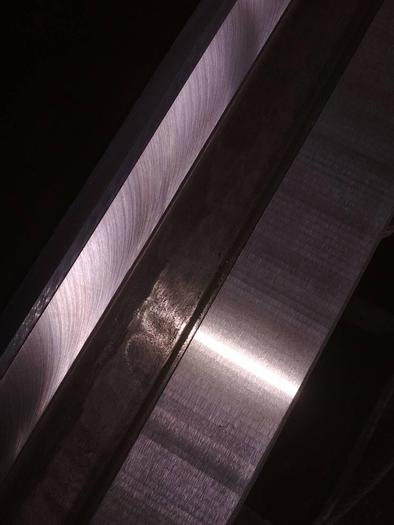

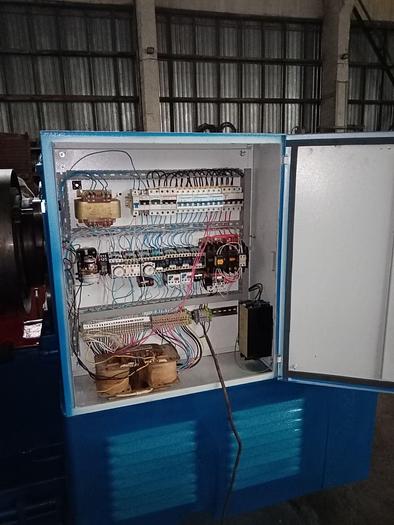

| After overhaul | - grinding of longitudinal and transverse guides -full revision of the mechanical part with repair, partial replacement, manufacturing of units and parts of the machine. -complete replacement of bearings and RTI, spinel bearings were not changed - New electrical system installed |
Description
Machine is used for the processing of pipe and pipe components, including thread cutting in terms of the single and mass production.
Diameter range of processable pipes: 70-290 mm
Max diameter of processable work-piece:
-Over stand: 800 mm
-Over support: 450 mm
Diameter of spindle hole: 300 mm
Max turning length:
-With bevel ruler: 800 mm
-W/O bevel ruler: 420 mm
Amount of spindle speeds: 12
Limits of spindle rotation frequency: 8-355 turn/min
Amount of longitudinal and cross support servings: 32
Limits of:
-Longitudinal servings: 0,064-1,025 mm/turn
-Cross servings: 0,034-0,458 mm/turn
Step limits of cuttable:
-Metric threads: 1-12 mm
-Inch threads (amount of threads for 1): 2-24
Max turn angle of bevel ruler: +- 10 degrees
Overall machine dimensions:
-Length: 3600 mm
-Width: 1860 mm
-Height: 1525 mm
Machine weight with electric equipment: 9050 kg
