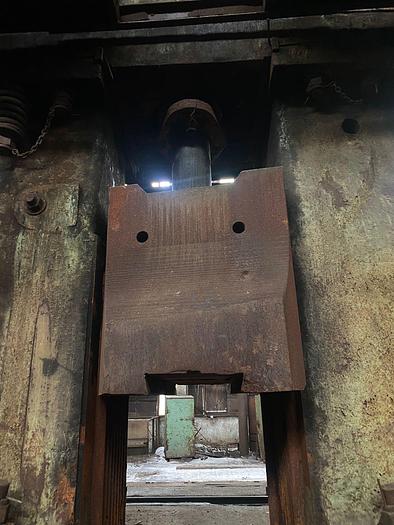

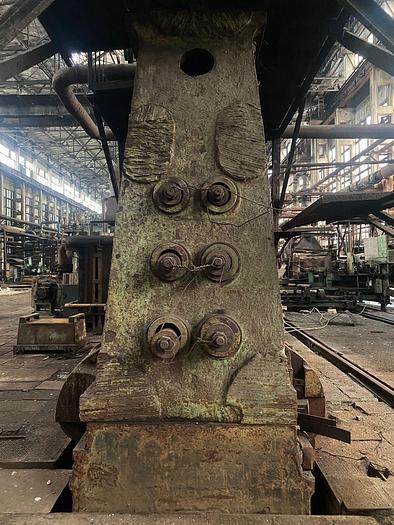

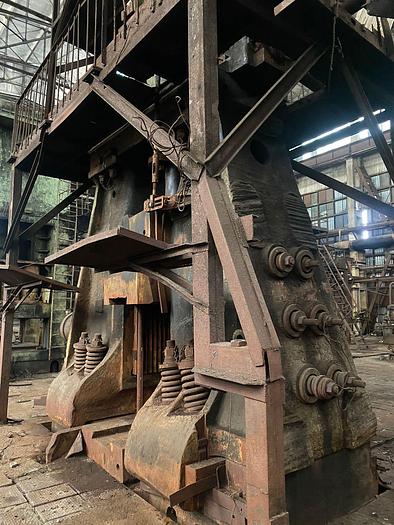

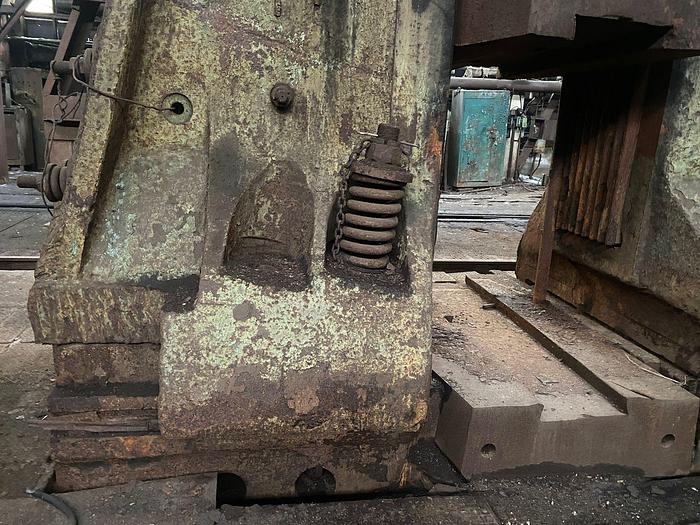

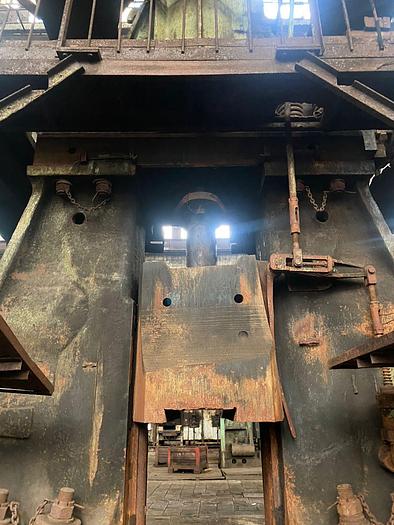

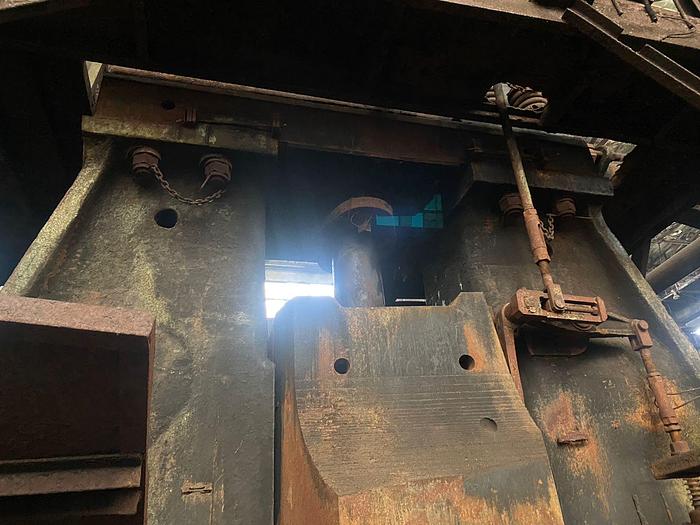

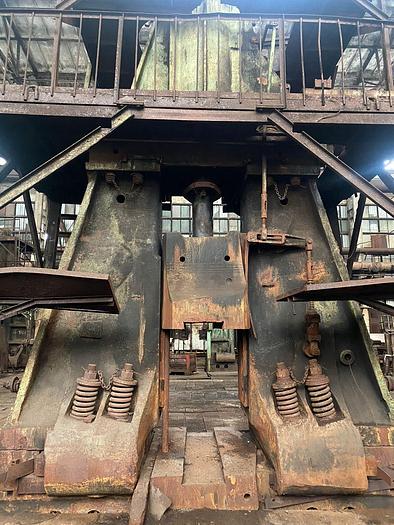

1975 Kramatorsk M2152 16T Air steam die forging hammer

Capacity : 16 tons,

Nominal mass of drop parts : 16000 kg,

Impact energy : 400 KJ,

Ram stroke : 1500 mm,

Ram stroke per minute : 20,

Distance clear between guides : 1180 mm,

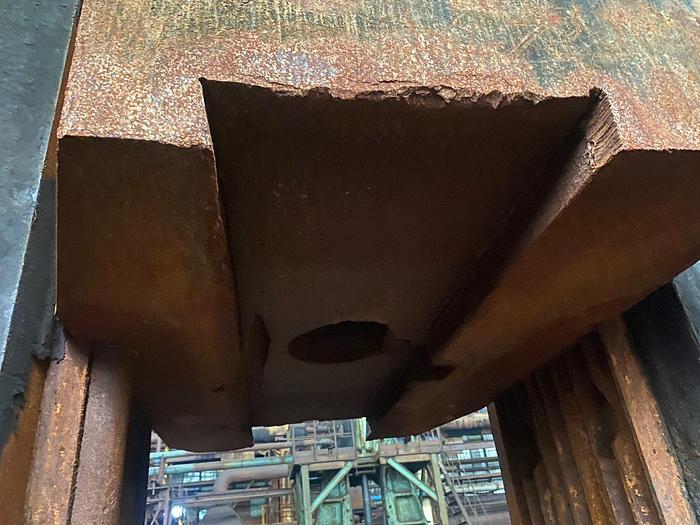

Ram dimensions front to back : 1500 mm,

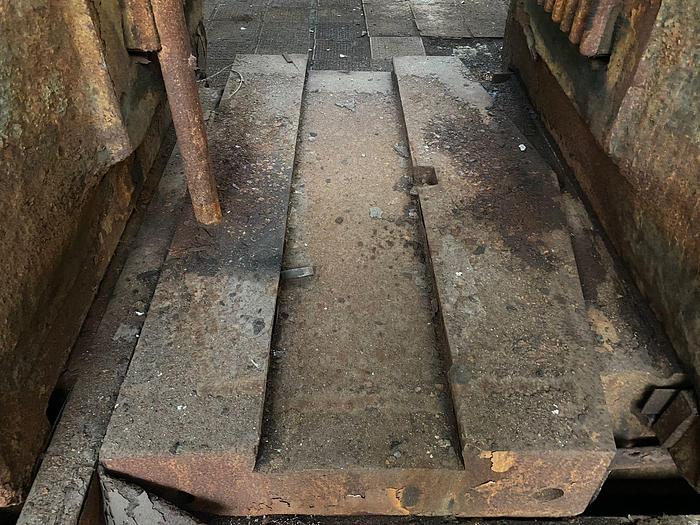

Die holder dimensions front to back : 1600 mm,

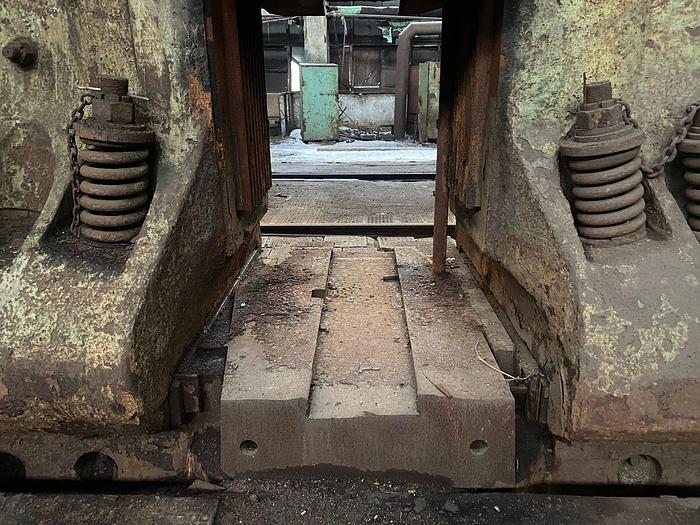

Bottom die impression to floor distance : 500 mm,

Steam/air pressure : 0.7-0.9 MPa,

Overal dimensions :

·Floor space : 4500 x 2450 mm,

·Height above floor level : 7920 mm,

Mass of anvil block : 325 tons,

Total weight of hammer : 425 tons
