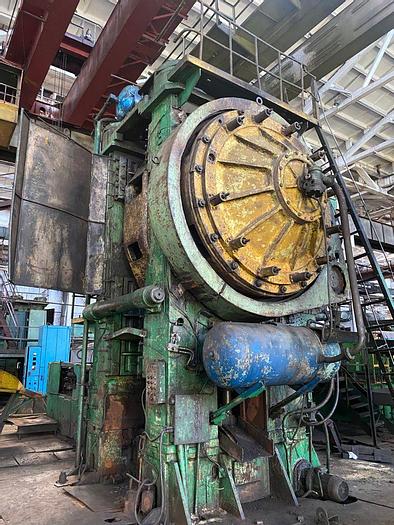

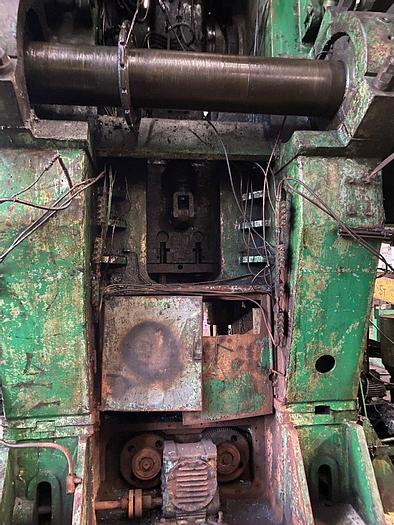

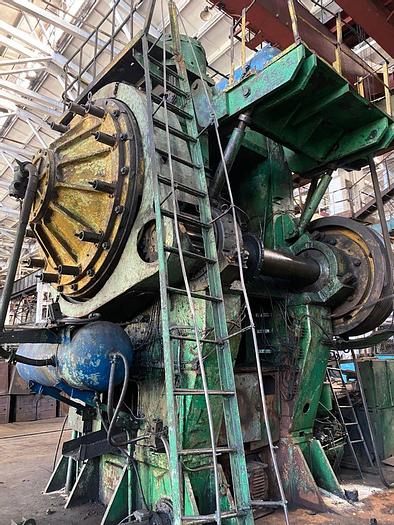

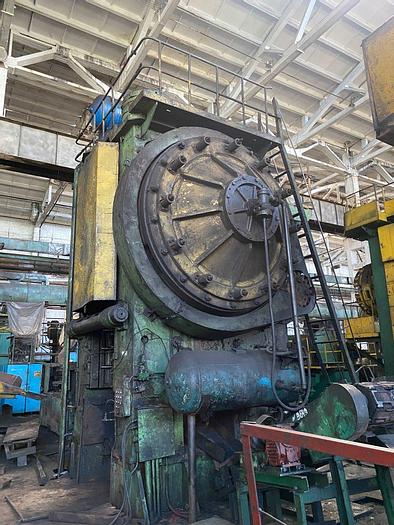

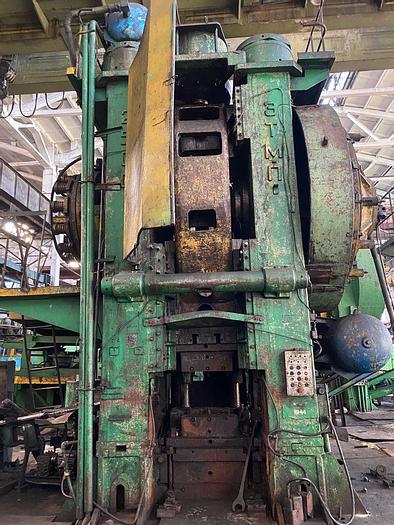

1975 TMP VORONEZH K8544,2500T Hot stamping press

orCall +44 20 3287 0537

Specifications

ManufacturerTMP VORONEZH
ModelK8544,2500T
Year1975
Stock Number157233917
INTERMEDIATE SHAFTYES
CONNECTING RODN° 1

Description

RATED CAPACITY TN 2500 INTERMEDIATE SHAFT YES CONNECTING ROD N° 1 SLIDE STROKE MM 350 CONTINUOUS STROKE PER MINUTE N° 60 SINGLE STROKE PER MINUTE N° 14 DIE SPACE MM 890 DIE SPACE ADJUSTMENT IN THE TABLE MM 10 TABLE DIMENSIONS L TO R MM 1200 F TO B MM 1400 SPACE BETWEEN UPRIGHTS MM 1320 RAM DIMENSIONS L TO R MM 1070 F TO B MM 1120 SUPERIOR KNOCKOUT POWER TN 6 STROKE MM 50 PUSHERS N° 1 LOWER KNOCKOUT POWER TN 10 STROKE MM 50 PUSHERS N° 1 DIMENSIONS SIDE WINDOWS LEFT RIGHT MM 720 HEIGHT MM 890 MAIN MOTOR POWER KW 132 OVERALL DIMENSIONS L TO R MM 5350 F TO B MM 4680 HEIGHT ABOVE FLOOR LEVEL MM 6840 PRESS TOTAL WEIGHT TN 198
