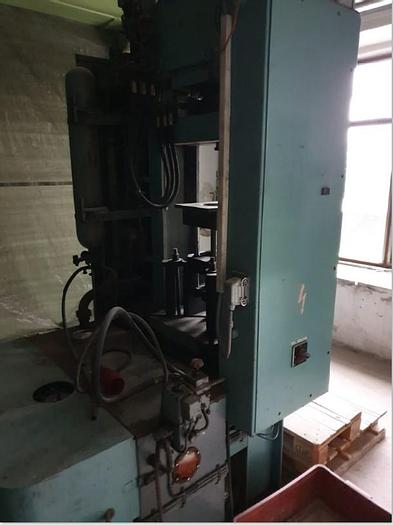

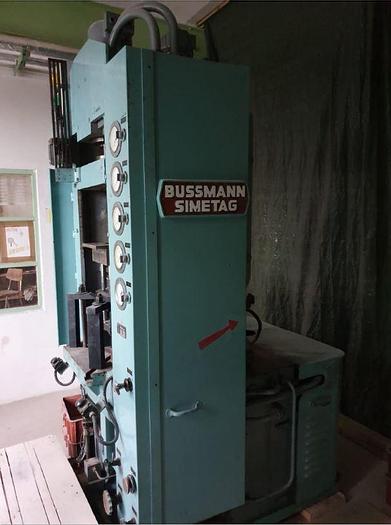

1985 BUSSMANN-SIMETAG HPM 60 Powder Compacting Press

orCall +44 20 3287 0537

Specifications

ManufacturerBUSSMANN-SIMETAG
ModelHPM 60
Year1985
Stock Number157142925
Press capacitymax. 60 t
Motor7 kW

Description

Press capacity: max. 60 t

Retraction force of upper ram: 30 t

Max force of upper ram in pressure range: 9 t

Max Stroke of upper ram: 300 mm / 11.8 in

Max Stroke of lower ram: 120 mm / 4.7 in

Number Stroke at normal operation: 14 – 16 min.-1

Speed of upper ram (unloaded): 170 mm/sec / 6.6 in/sec

Motor: 7 kW

Max daylight between upper and lower platens 750mm / 29.5 in

Size of lower table 500x500 mm / 19.7x19,7 in

Size of upper table 500x270 mm / 19.7x10,6 in

Overall press Height 2.41 m /7.9 ft.

Dimensions Width 1.34 m / 4.1 ft.

Depth 1.4 m / 4.6ft.

Dimensions of the machine base 1.02m / 3.35ft.

1.4 m/ 4.60ft.

Net weight: about 1950 kg / 4300 lbs.
